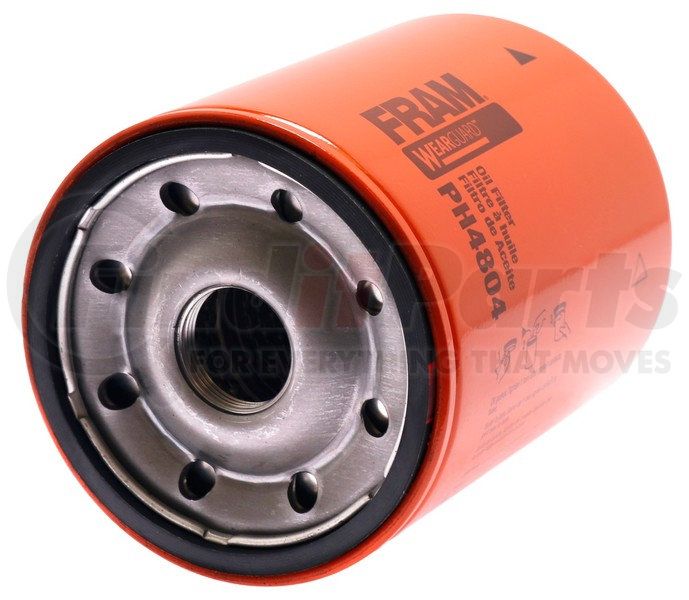

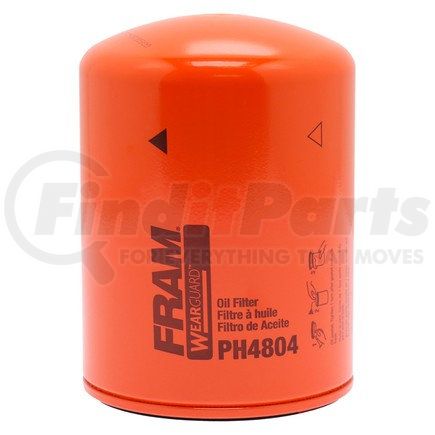

FRAM PH4804 - Spin-on Oil Filter
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
FRAM part description
California Proposition 65 Warning
WARNING: This product can expose you to chemical which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. (Read more)
Product Description
FRAM, PH4804, HD Oil Filter
Spin-on Oil Filter
Product Attributes
Height | 5.858 IN |
Gasket Or Seal Included | Yes |
Anti-Drain Back Valve | No |
522 | 30 PS |
Bypass Relief Valve | Yes |
Filter Type | Spin-On Canister |
Gasket Thickness | 0.250 IN |
Housing Color | Orange |
Non Slip Grip | No |
Torque Nut | No |
Gasket Inside Diameter | 3.588 IN |
Gasket Outside Diameter | 3.976 IN |
Drain Plug Included | No |
Gasket Type | Base |
Grade Type | Regular |
Inlet Type | Threaded |
Inside Thread Diameter | 1 1/8-16 IN |
New Or Remanufactured | New |
Outside Diameter | 4.257 IN |
Reusable | No |
Thread Size | Standard |
Universal Or Specific Fit | Specific |
Additional Information
Country of Origin (Primary) | US |
Harmonized Tariff Code (HTS) | 8421230000 |
Warranty Special | See Rep |
Warranty Special UOM | SR |
Warranty Time | 30 |
Warranty Time UOM | DA |
UPC | 00009100420169 |
UNSPSC | 15121501 |
Part Interchanges
- Donaldson P550086
- Hastings HF721
- ACDelco PF1808
- Kralinator L227
- Purolator L54514
- Wix 51349
- Big A 92349
- Baldwin B7223
- LUBER-FINER LFP5120B
- Carquest 85349
- Case P850589
- Caterpillar 116-9924
- Fleetguard HF28893
- Fleetrite LFR-83362
- Komatsu 113-60-23160
- Lugger 24-05701
- Poclain D-08505.89
- NAPA 1349
- Nissan 15274-99189
- Donaldson P550240
- Hastings LF406
- Hastings LF559
- ACDelco PF2157
- Wix 51444
- Wix 51536
- Big A 92444
- Big A 92536
- Baldwin BT398
- Baldwin BT402
- LUBER-FINER LFR5120
- Carquest 85444
- Carquest 85536
- Caterpillar 5W-3407N
- Fleetguard LF3664
- Komatsu 6136-51-5120
- Komatsu 6136-51-5121
- NAPA 1444
- NAPA 1536
- Nissan FL274-99189
FRAM PH4804 Cross Reference
We have 9 alternatives for the PH4804 by FRAM:
