SEALED POWER 4775A - Sealed Power 4775A Engine Connecting Rod Bearing
- Part Number
- 4775A
- Manufacturer
- SEALED POWER
- Description
-

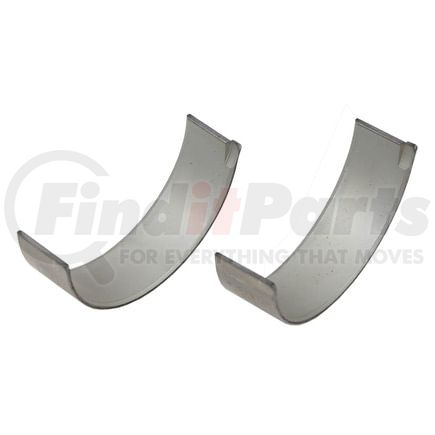

Sealed Power 4775A Engine Connecting Rod Bearing
details
$1899
MSRP: $27.03
Save: $8.04
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
SEALED POWER part description
California Proposition 65 Warning
California Proposition 65 Warning
WARNING: This product can expose you to chemical which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. (Read more)
Product Description
Engine Connecting Rod Bearing
Features & Benefits
- A-Series bi-metal aluminum alloy
- Greater seizure resistance than tri-metal material
- Dramatically reduces or eliminates bearing wear
- Made with silicon to provide greater surface hardness
- Silicon particles help polish crankshaft journal to further reduce wear during operation
- Utilizes ISO & QS certified manufacturing
Product Attributes
| Design Feature 1 | Standard Size |
| Housing Bore Max (inch) | 2.1652 IN |
| Housing Bore Max (mm) | 54.9960 MM |
| Housing Bore Min (inch) | 2.1648 IN |
| Housing Bore Min (mm) | 54.9860 MM |
| Oil Clearance Max (inch) | 0.0017 IN |
| Oil Clearance Max (mm) | 0.0430 MM |
| Oil Clearance Min (inch) | 0.0006 IN |
| Oil Clearance Min (mm) | 0.0150 MM |
| Overall Length Max (inch) | 0.6490 IN |
| Overall Length Max (mm) | 16.5000 MM |
| Pair / Full / Half - Flange | P |
| Part Description | Engine Connecting Rod Bearing |
| Standard Shaft Max (inch) | 2.0472 IN |
| Standard Shaft Max (mm) | 51.9990 MM |
| Standard Shaft Min (inch) | 2.0466 IN |
| Standard Shaft Min (mm) | 51.9840 MM |
| Wall Thickness Max (inch) | 0.0589 IN |
| Wall Thickness Max (mm) | 1.4980 MM |
Additional Information
| Country of Origin (Primary) | JP |
| Canadian Harmonizing Tariff Code | 8483300022 |
| Harmonized Tariff Code (Schedule B) | 8483308090 |
| Harmonized Tariff Code (HTS) | 8483308090 |
| UPC | 00614046238602 |
Part Interchanges
Fits Vehicles
- Subaru Outback (2001-2012)
- Subaru Legacy (1990-1999, 2001-2012)
- Subaru Impreza (1993-2001, 2005-2012)
- Subaru Forester (1998-1999, 2004-2012)
- Subaru Baja (2003-2006)
