DANA part description

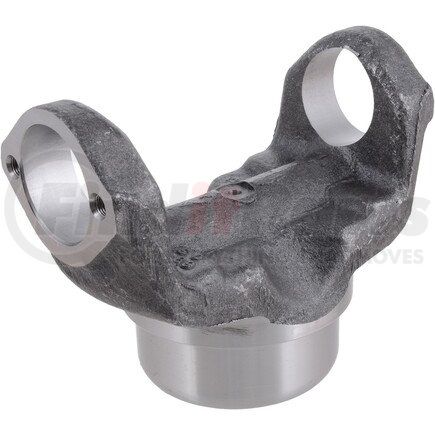

Spicer 6.5-28-127 Weld Yoke 4.5X.259 Tube
7
PLEASE USE THE DANA ONILNE WELD YOKE CATALOG TO SELECT YOUR PART NUMBERS

6.5-28-127
SERIES:1810
F BUTT DIAMETER:3.984
H C/L TO WELD:3.375
FITS TUBE DIA:4.500
FITS TUBE WALL:
BALL STUD DIAMETER:
BALL STUD LENGTH:
JOINT CENTER TO STUD END:

Product Attributes

Series 1810
Material Steel
Design BP
Fits Tube Wall (S=Seam W=Weld) .259-WELDED
Joint Angle #1 30
Butt Diameter (F) In. 4.003 IN
C/L To Weld (H) In. 3.375 IN
Bearing Cap Diameter (D) In. 1.938 IN
Outside Yoke Dimension (E) In. 7.547 IN
Fits Tube Diameter (In) 4.500 IN

Additional Information

Country of Origin (Primary) BR
Harmonized Tariff Code (Schedule B) 8708990000
Harmonized Tariff Code (HTS) 8708990000
UPC 00023913212322
VMRS Code 024002057

Part Interchanges

DANA 6.5-28-127 Cross Reference

We have 1 alternatives for the 6.5-28-127 by DANA:

Dana Holding Corporation® is an internationally known company specializing in drivetrain and e-Propulsion systems. It conceptualizes, manufactures, and supplies energy-management and power- and conveyance solutions for the present-day and future vehicles and trucks. With its over 115 years of industry experience and innovation, and despite several turbulences the automotive and trucking industry has been through, Dana has managed to take the lead in revolutionary technological inventions. Dana Holding Corporation comprises different world-renowned brands catering to various market segments. These include SPICER Drivetrain Systems, VICTOR REINZ Sealing Products, LONG Thermal Products, BREVINI Motion Systems, GRAZIANO High-Performance Transmissions, FAIRFIELD Custom Gears and Drives, and a lot more.
