FIRESTONE part description

TECHNICAL DATA -

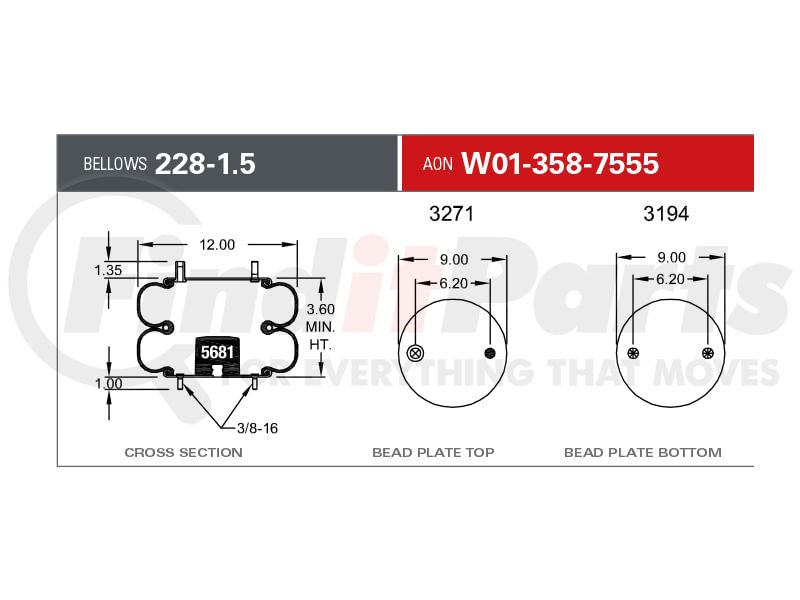

Order Number:

W01-358-7555

Bellows #:

228-1.5

Assembly Weight:

13.4 lbs

Design Height:

9-11 inches

Minimum Jounce Height:

3.55 inches

Maximum Rebound Height:

N/A inches

Loading Capacity at 20 psig:

1,240 lbsf

Loading Capacity at 60 psig:

3,720 lbsf

Loading Capacity at 90 psig:

5,580 lbsf

Natural Frequency:

Hz

Maximum Diameter:

13.5 inches

Material Type:

N/A

Operating Temperature:

57Cº to-54Cº

Remarks:




TR: 6258



Headquartered in Nashville, Tennessee, Firestone Industrial Products® is a proud manufacturer of air spring and other anti-vibration solutions to heavy duty trucks, trailers, commercial vehicles, rail cars, and industrial equipment. It has come a long way since it revolutionized transportation with the introduction of the Airide™ Air Spring in 1938. Today, Firestone is more than just an air spring manufacturer—it’s a global leader and a local partner that sees solutions where others see obstacles. Both OEMs and everyday consumers trust this brand for their air suspension needs because of its unwavering commitment to quality and reliability. All Firestone parts are engineered and tested in ISO-certified facilities to ensure they meet the strictest standards and customer specifications.
