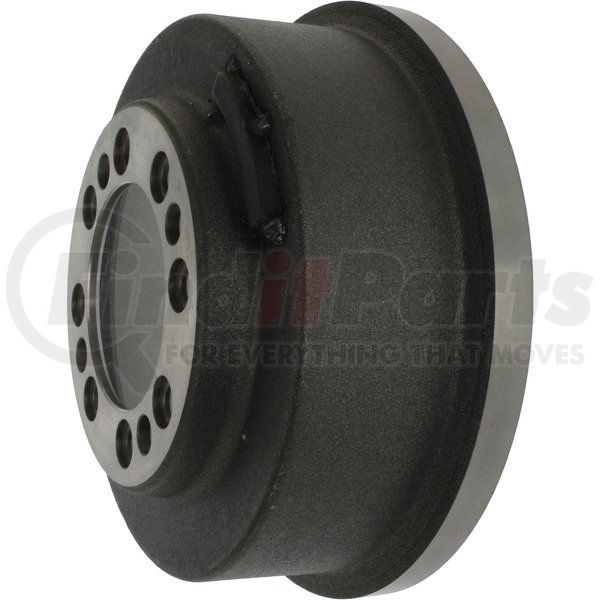

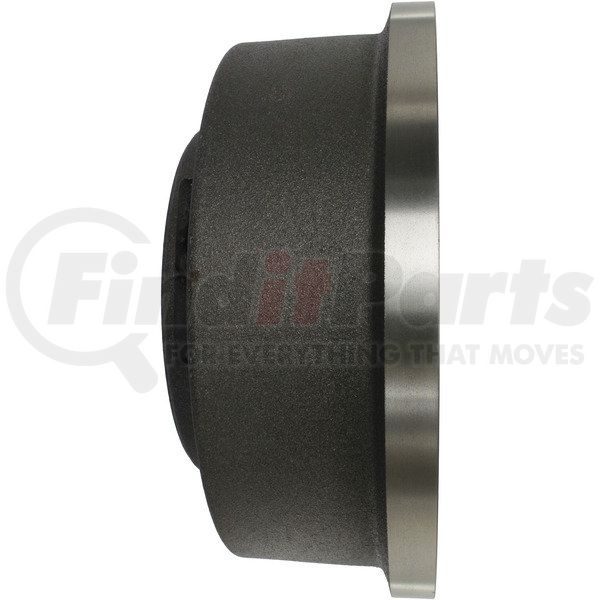

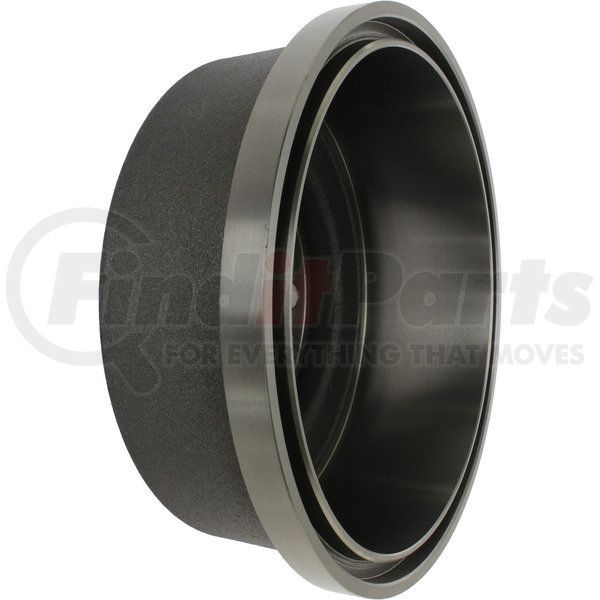

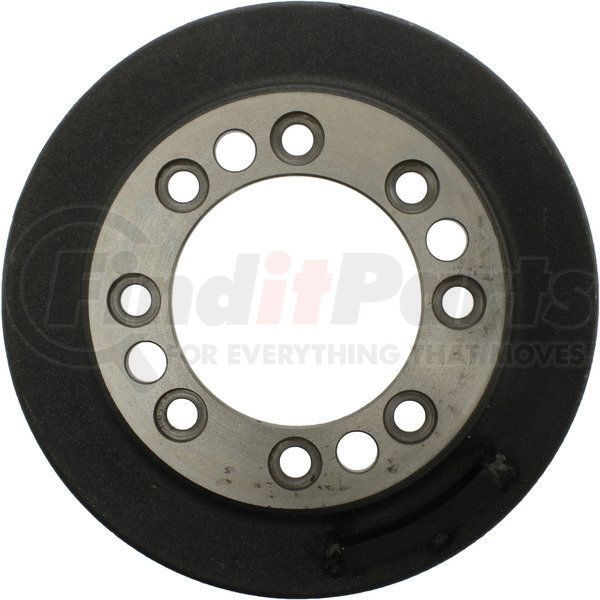

CENTRIC 123.65035 - Standard Brake Drum
$9449
MSRP: $109.02
Save: $14.53
In stock
limited availability at this price!
. Learn more
CENTRIC part description
California Proposition 65 Warning
California Proposition 65 Warning
| Make | Ford |
| Model | Club Wagon, E-350 Econoline, E-350 Econoline Club Wagon |
| Year | 1992 |
Product Description
C-Tek Standard Brake Drum
Application Summary
Ford Club Wagon 1998-1995, E-350 Econoline 1998-1992, E-350 Econoline Club Wagon 1998-1992
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
C-Tek; Centric; Standard brake rotor; standard brake drum; Centric standard Drums; Centric c-tek standard brake drum
Product Attributes
| Maximum Brake Diameter (Discard) | 310.100 MM |
| Bolt Hole Quantity | 8 |
| Outside Diameter | 358.902 MM |
| Outer Cooling Fins | No |
| Mounting Hole Diameter | 16.000 MM |
| Nominal Drum Diameter | 308.000 MM |
| Bolt Circle Diameter [cntrc] In | 6.500 |
| Bolt Circle Diameter [cntrc] Mm | 165.100 |
| Friction Surface Width [cntrc] In | 4.160 |
| Friction Surface Width [cntrc] Mm | 105.664 |
| Height [cntrc] In | 5.740 |
| Height [cntrc] Mm | 145.796 |
| Hub Hole / Register [cntrc] In | 5.000 |
| Hub Hole / Register [cntrc] Mm | 127.000 |
| Misc Holes [cntrc] | 4 |
| Mounting Type [cntrc] | Floating |
| Weight [cntrc] Kgs | 15.227 |
| Weight [cntrc] Lbs | 33.500 |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| UPC | 00805890052869 |
CENTRIC 123.65035 Cross Reference
We have 7 alternatives for the 123.65035 by CENTRIC:
Fits Vehicles
- Ford Club Wagon (1995-1998)
- Ford E-350 Econoline Club Wagon (1992-1998)
- Ford E-350 Econoline (1992-1998)
