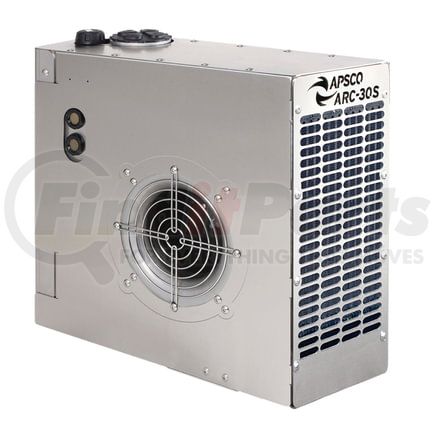

APSCO ARC-30S - Hydraulic Cooling System - 30 GPM Flow Rate, Slim Line, 4 Gallon, 4000 PSI Max Pressure
$4,67899
In stock
limited availability at this price!
. Learn more
APSCO part description
California Proposition 65 Warning
California Proposition 65 Warning
Product Attributes
| Case Drain Port Size | SAE-8 ORB Female |
| Cooler Bypass | Cold Start up - 60 PSI High Flow |
| Design | Slim |
| Drain Port Size | Magnetic plug SAE-8 ORB |
| Fan Motor | Hydraulic Drive 1.2 GPM |
| FILTER | Tank Top, with Integral Breather, 25 PSI Bypass |
| Filter Element Micron Rating | 10 |
| Finish | Stainless Exterior Brushed |
| Flow Rate | 30 GPM |
| Heat Rejection | 20 HP at 30 gpm with 80°F Exiting Temp. Differential |
| Height | 21 in. |
| High Pressure Port Size | SAE-16 ORB Female |
| Length | 20 in. |
| Low Pressure Return Port Size | SAE-20 ORB Female |
| Oil Level Site Glass | Dual Bulls-Eye |
| Pressure Gauge Port Size | SAE-4 ORB Female |
| Relief Valve | Adjustable, 500 to 3000 PSI |
| Reservoir Capacity | 4 Gallon |
| Suction Port Size | SAE-24 ORB Female |
| Width | 8 in. |
APSCO® is a proud manufacturer of pneumatic cylinders, controls, and valves for the mobile, truck equipment, and automotive industries since 1964. The company continuously evolves to meet industry challenges and the changing needs of customers. But providing innovative solutions need not compromise quality, and that's APSCO's commitment since day one. The company makes use of the highest quality materials and the latest technology in manufacturing its products. And it rigorously tests them before shipment to ensure only safe and reliable APSCO products reach their customers. These stringent manufacturing processes and tests have earned them an ISO 9001:2001-certified company, beginning in 2004.
