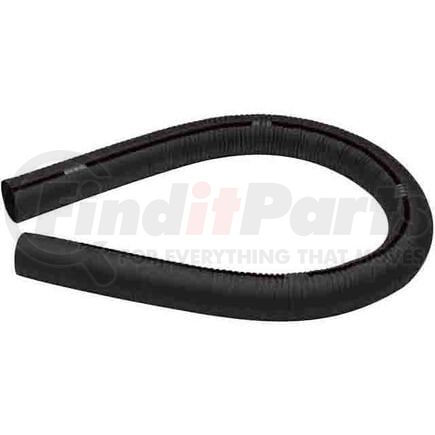

GATES part description

Application
Features Advantages Exceptionally flexible.
Light-duty hose engineered for power brake applications on cars and light trucks
Heat and oil-resistant tube.
CAUTION: Not recommended for conveying liquids.
Recommended For Heating and ventilating applications, such as air intake for butane conversion units, air and heater ducts, defroster lines, air cleaner connections to carburetor, exhaust ducts, vent lines for trailer sewers and drains. For standard duty applications.
Construction
Construction: Cover Type A (Neoprene impregnated fabric). Black.
Construction: Design Factor 4:1
Construction: Reinforcement Single ply of synthetic fabric with two built-in helical wires.
Construction: Tube Type A (Neoprene). Black. Oil resistant.
Notes
Caution Not recommended for conveying liquids.
Special Order Requirements Special production runs require minimum order quantities of one piece. Lengths can be as short as one foot, but minimum billing is ten feet.
Packaging
Branding Printed patch label every 2 feet with I.D. only.
Packaging 10' per carton.
Individually Cartoned
Product Attributes
Hose Ends Plain End. Straight or Enlarged Ends on special order.
Specifications
Centerline Length (ft) 10
Inside Diameter 1 (in) 1
Minimum Bend Radius (in) 1.0
Minimum Bend Radius (mm) 25
Nom. I.D. (in) 1
Nom. I.D. (mm) 25.4
Nom. O.D. (in) 1.19
Nom. O.D. (mm) 30.2
Temperature
Temperature -30F to +250F (-34C to +121C) continuous service.
Weight
Weight (Lbs.) .2
Wt. Per Ft. (Kg) .09
Working Pressure
Max. Working Pressure 10
Max. Working Pressure (MPa) .07
Suction (In. Hg) 5.0
Suction (mm Hg) 127
Vacuum Rating (in/Hg) 5
Working Pressure (psi) 10

GATES 23616 Cross Reference

We have 2 alternatives for the 23616 by GATES:
