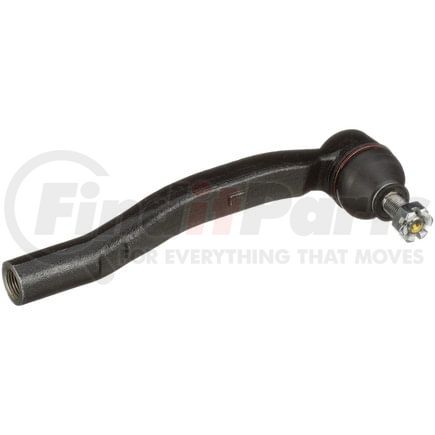

DELPHI TA5775 - Tie Rod End
$3799
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
California Proposition 65 Warning
California Proposition 65 Warning
WARNING: This product can expose you to chemicals including Ethylene Thiourea, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. (Read more)
Product Description
Tie Rod End
Product Attributes
| Position(s) | Left Outer |
| Item Grade | Standard Replacement |
| Length | 226.0 MM |
| Color | Black |
| End 1 Gender | Male |
| End 2 Gender | Female |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | Yes |
| Width | 47.0 MM |
| Type | Bent |
| End 2 Thread Diameter | 16.0 MM |
| Height | 76.0 MM |
| Housing Material | Steel |
| Adjustable | No |
| Greasable | No |
| Weight | 1.81 lb |
| Bearing Material | Polyoxymethilen (POM) |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Grade | Premium |
| Stud Type | Threaded |
| End 2 Thread Pitch | 1.5 MM |
| End 1 Thread Pitch | 1.25 MM |
| Length Stud Center to End | 2.26 IN |
| Length Stud Center to End | 57.5 MM |
| Dust Boot Material | Choloroprene Rubber (CR) |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 12.0 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708948000 |
| Harmonized Tariff Code (HTS) | 8708947550 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604328231 |
| VMRS Code | 011001031 |
| UNSPSC | 25174205 |
Part Interchanges
Fits Vehicles
- Toyota Sienna (2011-2020)
