PETERSON LIGHTING part description

702/703 4"x6" Rectangular LED Headlights

Features & Benefits

  • 702C & 703C LED rectangular (4"x6") headlights feature state-of-the-art, high-output diodes
  • Meets DOT FMVSS 108& CMVSS 108, SAE; Visually aimed (VOR low beam/VO high beam) integral beam, as part of a 4-lamp system
  • 702C has 4-diode single chip, 703C has 6-diodes
  • Compared to existing incandescent headlights, our new LED units offer more
  • Enhanced beam brightness, evenness and pattern
  • Greater vibration & shock resistance
  • Longest available service life
  • 702C—700 Lumens, 10.25 Watts
  • 703C—800 Lumens, 14 Watts
  • Heavy-Duty cast alloy housing with UV and impact resistant, hard-coated polycarbonate lens.
  • The 702 low-beam function headlight is designed only for use as part of a four-lamp integrated system. It's NOT designed or sold as a replacement for dual function (high/low beam) headlights. Federal law requires that horizontal adjustment be disabled for the 702C

Product Description

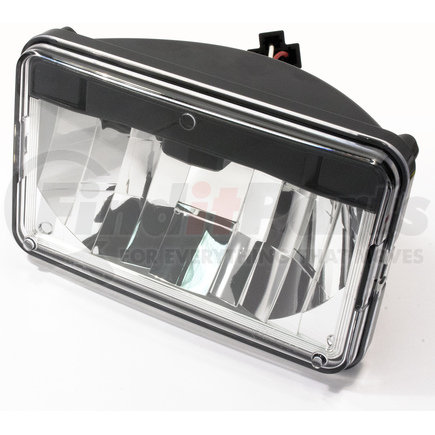

LED HEADLIGHT, RECTANGULAR, HIGH BEAM, 4"x6"

Features & Benefits

  • LED.
  • Physical and electrical compatibility does not guarantee legal compliance in OE or retrofit applications. Refer to vehicle manufacturer, government standards, and SAE documentation regarding requirements and aiming requirements.
  • Hardwired design.
  • Multivolt version available.
  • Voltage Regulated.
  • 702C is an SAE Type 2A1 low beam w/ 4-diode, single-chip assembly.
  • 703C is an SAE Type 1A1 high beam w/ 6 diodes.
  • Greater vibration & shock resistance for longest available service life.
  • Multivolt design is compatible with both 12V and 24V systems.
  • Heavy-duty polycarbonate/cast alloy housing.
  • UV & impact resistant, hard-coated polycarbonate lens.
  • Vacuum metallized reflector.
  • 800 (702C) & 1000 (703C) source lumens.
  • Low power draw: 10.25 watts (702C) & 17 watts (703C).
  • DOT-legal; exceeds FMVSS-108 and CMVSS-108 requirements.
  • 5200k ?6000k (702C) & 5200k ?6300k (703C) color temperature.
  • 3.5”, 18 gauge, hardwired leads terminated w/ standard H4 terminals.
  • IP66 ingress rating.

Product Attributes

Lens Color clear
Shape rectangular
Bulb Technology LED
Bulb/diode Count 1
California Proposition 65 Required Y
Color Temperature 5200 - 6300k
Container Type display box
Family PM
Height 4.17 in
Length 6.5 in
Light Color white
Maximum Voltage 32 Volts
Minimum Voltage 9 Volts
Multi-volt Y
Regulatory Compliance DOT
Termination H4
Voltage 12 Volts
Width 3.5 in

Additional Information

Country of Origin (Primary) TW
Harmonized Tariff Code (Schedule B) 8512202000
UPC 00044464999128
VMRS Code 034001151

Part Interchanges

Peterson Lighting® is a family-owned company that produces and distributes vehicle safety lighting systems mirrors, and other related safety products and accessories. It has been in the business for 75 years, and currently, it offers over 2,200 products designed for various applications, including tilt-bed and cargo vehicles and light- and medium-duty trailers. Peterson Lighting believes that full commitment to quality is its responsibility as a market leader. All its components are designed and manufactured only in its ISO 9001/QS-9000-certified facility in Grandview, MO. This facility is handled by knowledgeable and highly skilled specialists, who are as dedicated and passionate as the company when it comes to quality.
