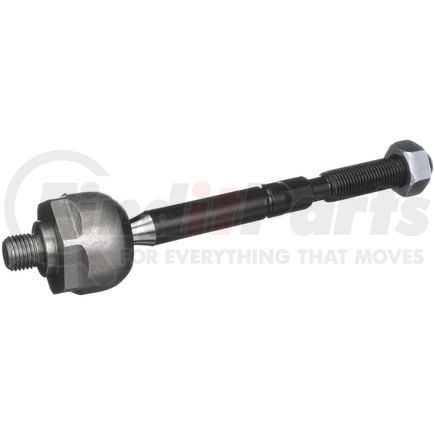

DELPHI TA5188 - Tie Rod End
$3049
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
California Proposition 65 Warning
California Proposition 65 Warning
WARNING: This product can expose you to chemical which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. (Read more)
Product Description
Tie Rod End
Product Attributes
| Position(s) | Inner |
| Item Grade | Standard Replacement |
| Length | 193.0 MM |
| Color | Black |
| End 1 Gender | Male |
| End 2 Gender | Male |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | No |
| Width | 40.0 MM |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 14.0 MM |
| Height | 40.0 MM |
| Grade Type | Standard |
| Housing Material | High Strength Steel |
| Tube Diameter | 14.5 MM |
| 36 | 0.571 IN |
| Adjustable | Yes |
| Greasable | No |
| Weight | 0.87 lb |
| Bearing Material | Polyoxymethilen (POM) |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| End 2 Thread Pitch | 1.5 MM |
| End 1 Thread Pitch | 1.5 MM |
| Length Stud Center to End | 6.22 IN |
| Length Stud Center to End | 158.0 MM |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 14.0 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604287910 |
| VMRS Code | 015004070 |
| UNSPSC | 25174205 |
Part Interchanges
Fits Vehicles
- Lincoln MKZ (2011-2012)
- Mercury Milan (2010-2011)
- Ford Fusion (2010-2012)
