MSD 82073 - Blaster SS Ignition Coil
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
MSD part description
California Proposition 65 Warning
Product Description

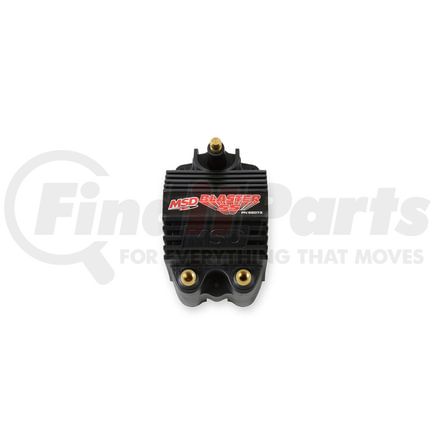

Blaster SS Ignition Coil
Application Summary
BLASTER SS; BLACK COIL
Features & Benefits
- Improved output coil for electronic ignitions and MSD Ignitions
- Efficient winding design and assembly creates a compact housing
- Primary and secondary windings are encased in Ciba polyurethane
- 70:1 Turns Ratio
- Lower Primary Resistance Produces High Voltage Output
- Dupont Rynite housing w/tall tower and brass primary terminals
- CARB E.O. Approved
Holley Performance Emission Code 1: This part is legal for sale and use on Emissions Controlled Vehicles; in all 50 states; when used in accordance with the manufacturers application guide because it has a California Air Resources Board (CARB) Executive Order (EO) number. The following vehicles are considered Emissions Controlled Vehicles: 1966 and newer U.S. manufactured California Certified vehicles/1968 and newer U.S. manufactured Federally Certified vehicles/1968 and newer Foreign manufactured vehicle
Product Attributes
Color | Black |
Inductance | 6.9 mH |
Item Weight | 1.080 lbs. |
Peak Current | 300 mA |
Primary Resistance | .355 ohms |
Secondary Resistance | 4.4K ohms |
Spark Duration | 220 uS |
Turns Ratio | 70:1 |
Additional Information
Country of Origin (Primary) | CN |
Harmonized Tariff Code (Schedule B) | 8511300080 |
Harmonized Tariff Code (HTS) | 8511300080 |
NAFTA Preference Criterion Code | B |
Remanufactured Part | N |
UPC | 00085132820733 |
