WAGNER part description

Product Description

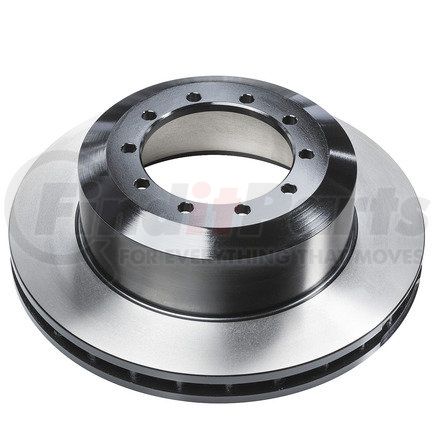

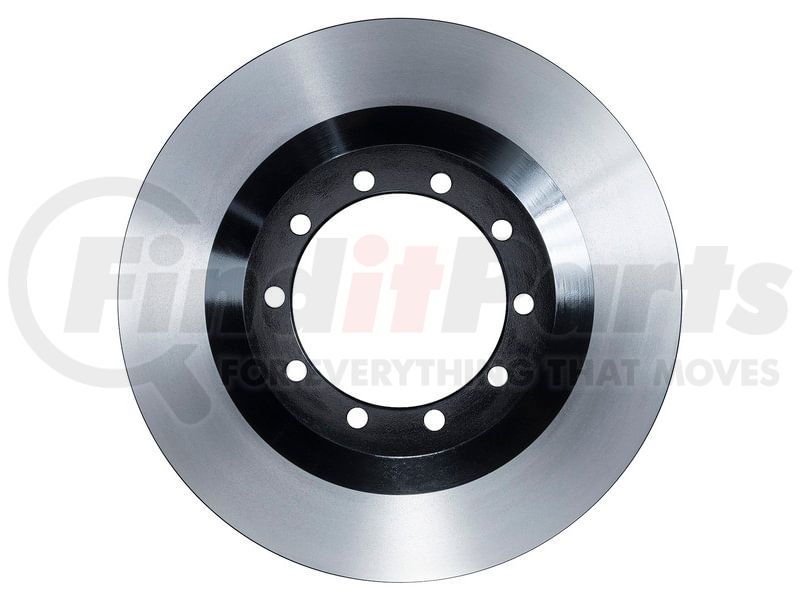

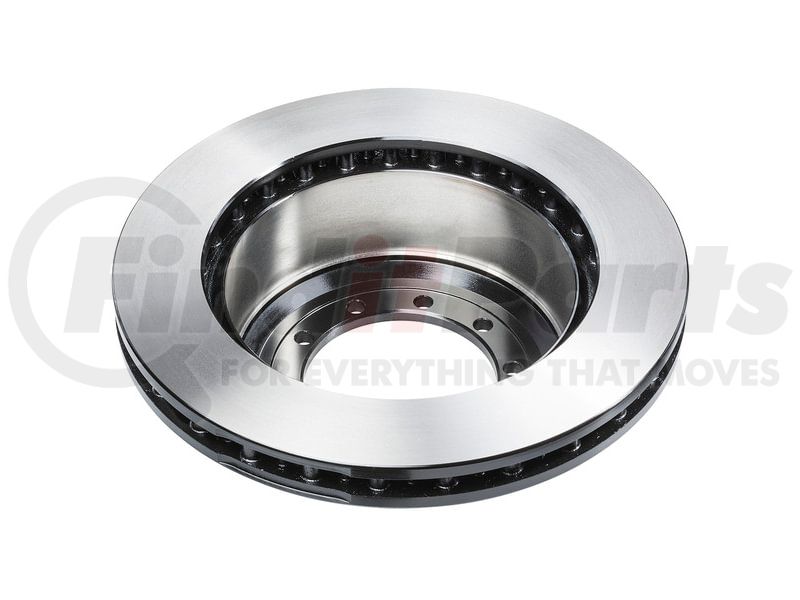

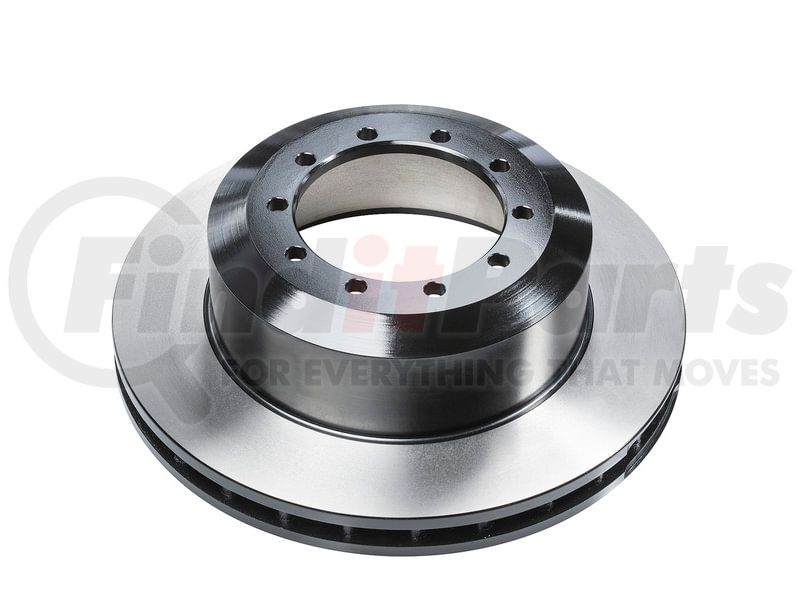

Disc Brake Rotor

Application Summary

2003 Ford E-550 Super Duty (Rear) (Qualifier: 10 Stud Wheel, with 396 (mm) Diameter Rotor, Black E-Coat on non-braking surface to prevent rust and corrosion); 1999-2001 Ford F-450 Super Duty (Rear) (Qualifier: 10 Stud Wheel, with 396 (mm) Diameter Rotor, Black E-Coat on non-braking surface to prevent rust and corrosion); 1999-2001 Ford F-550 Super Duty (Rear) (Qualifier: 10 Stud Wheel, with 396 (mm) Diameter Rotor, Black E-Coat on non-braking surface to prevent rust and corrosion); 1999-2019 Ford F53 (Front, Rear) (Qualifier: 10 Stud Wheel, with 396 (mm) Diameter Rotor, Black E-Coat on non-braking surface to prevent rust and corrosion, To 10/03/2000, Under 23,000 (lb) GVW, with 16,000 (lb) to 18,000 (lb) GVW); 2011-2019 Ford F59 (Front) (Qualifier: Under 23,000 (lb) GVW, with Dana 80, Dana 110, Dana 130 Rear Axle, 10 Stud Wheel, with 396 (mm) Diameter Rotor, Black E-Coat on non-braking surface to prevent rust and corrosion, with 16,000 (lb) Gross Vehicle Weight (GVW))

Features & Benefits

  • ENGINEERED FOR PERFORMANCE -- OE-specific vane design provides effective braking power and heat dissipation while controlling noise, vibration and harshness
  • PREMIUM PROTECTION -- E-Shield(R) protective coating is applied to non-braking surfaces to inhibit corrosion
  • TURNED AND SMOOTH FINISH -- Requires less pad break-in time and aids in proper bedding
  • EASY INSTALLATION -- Rotors are packaged in a Vapor Corrosion Inhibitor bag, eliminating the need for an oil coating which reduces prep time
  • PROPER BALANCE -- Spin balanced and cut to limit vibration for improving stability and control
  • PERFECT PAIRING -- Pair Wagner premium rotors with premium brake pads for optimal performance

Product Attributes

Material Cast Iron
Nominal Thickness 38.0 MM
Disc Finish Directional
Construction Full Cast
Rust Resistant Coating Yes
Outside Diameter 394.6 MM
Surface Type Smooth
Solid Or Vented Type Rotor Vented
Height 123.7 MM
Part Description Disc Brake Rotor
Nominal Thickness 1.497 IN
Outside Diameter 15.538 IN
Height 4.872 in

Additional Information

Country of Origin (Primary) CN
Harmonized Tariff Code (Schedule B) 8708305030
Harmonized Tariff Code (HTS) 8708305030
UPC 00008536947639
VMRS Code 013017001
UNSPSC 25171705

Part Interchanges

When it comes to high-quality lighting and braking products for vehicle safety systems, one name stands out—Wagner®. Since 1891, this brand has been developing highly efficient critical components for vehicle safety systems across the globe. Wagner® is renowned for its cutting-edge braking component and technologies for passenger cars and medium-duty and commercial applications. This brand is also at the forefront of lighting products manufacturing since the introduction of the sealed-beam headlamp. Wagner brake parts and lighting products set high industry standards, thanks to its over 125 years of manufacturing experience and engineering expertise and its commitment to developing products that deliver superior performance.

Fits Vehicles

  • Ford F59 (2011-2019)
  • Ford F53 (1999-2004, 2006-2009, 2011-2019)
  • Ford E-550 Super Duty (2003)
  • Ford F-550 Super Duty (1999-2001)
  • Ford F-450 Super Duty (1999-2001)
