HORTON 9910241 - RCV250 Fully-Variable Fan Drive
$1,51149
MSRP: $2,136.31
Save: $624.82
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
HORTON part description
California Proposition 65 Warning
California Proposition 65 Warning
WARNING: This product can expose you to chemical which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. (Read more)
Product Description
RCV250 Fully-Variable Fan Drive
Application Summary
MACK, VOLVO
Viscous fan drive, engine cooling system, fully variable

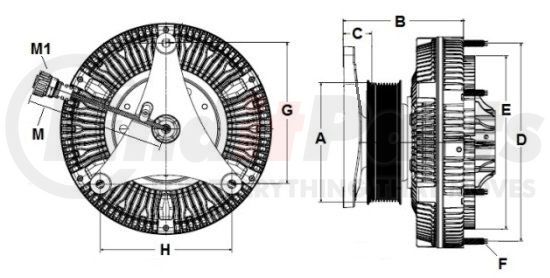

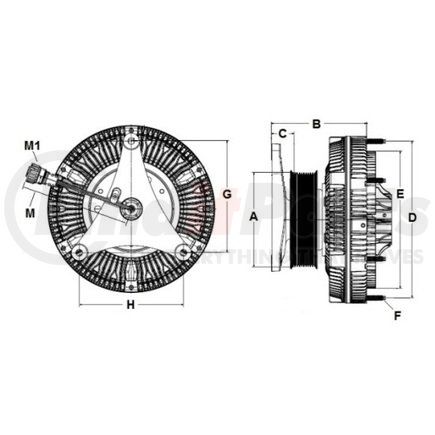

Product Attributes
| BACK PULLEY DIAMETER | 7.87 IN |
| BELT CONFIGURATION | 12K |
| Belt Groove Location | 1.48 IN |
| Center of JB To Top Right Mounting Hole | 4.39 IN |
| Connector Type | TYCO 987650-1 |
| Fan Bolt Circle | 10.11 IN |
| FAN PILOT DIAMETER | 9.29 IN |
| Heavy Duty | TRUE |
| HORIZONTAL MOUNTING DISTANCE | 6.73 IN |
| MTG STUD LENGTH | 1.22 IN |
| Overall Length | 6.15 IN |
| Stud Thread Size | M8 X 1.25 IN |
| VERTICAL MOUNTING DISTANCE | 7.21 IN |
| Voltage | 12V |
| Wire Length | 25.04 IN |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8505200000 |
| Harmonized Tariff Code (HTS) | 8505200000 |
| NAFTA Preference Criterion Code | B |
| OEM's Part Number | 9810241 |
| Warranty Distance | 200000 |
| Warranty Distance UOM | DH |
| Warranty Special | 2500 Hours |
| Warranty Special UOM | TX |
| Warranty Time | 24 |
| Warranty Time UOM | MO |
| VMRS Code | 042003036 |
Part Interchanges
HORTON 9910241 Cross Reference
Behr 376791221, Borgwarner 22208779, Mack 22113077, Mack 85141863, Volvo 22113077
