PETERSON LIGHTING part description

Product Description

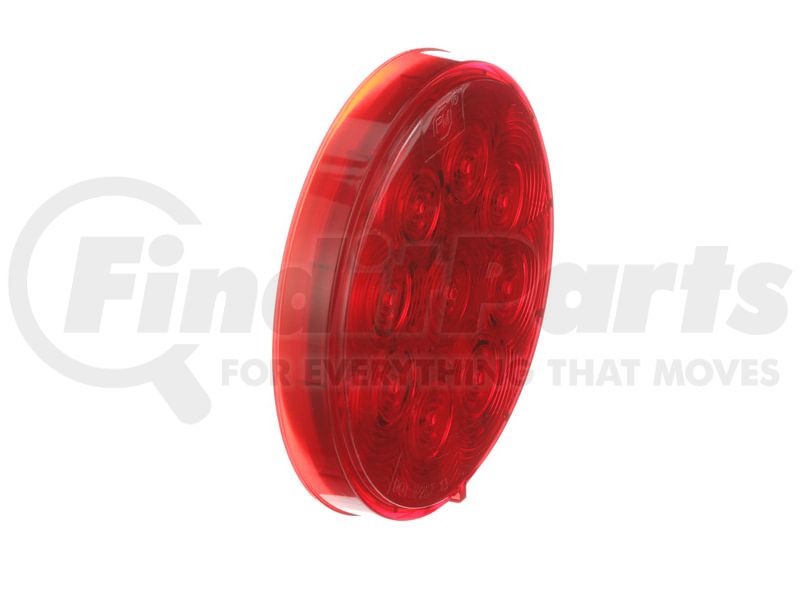

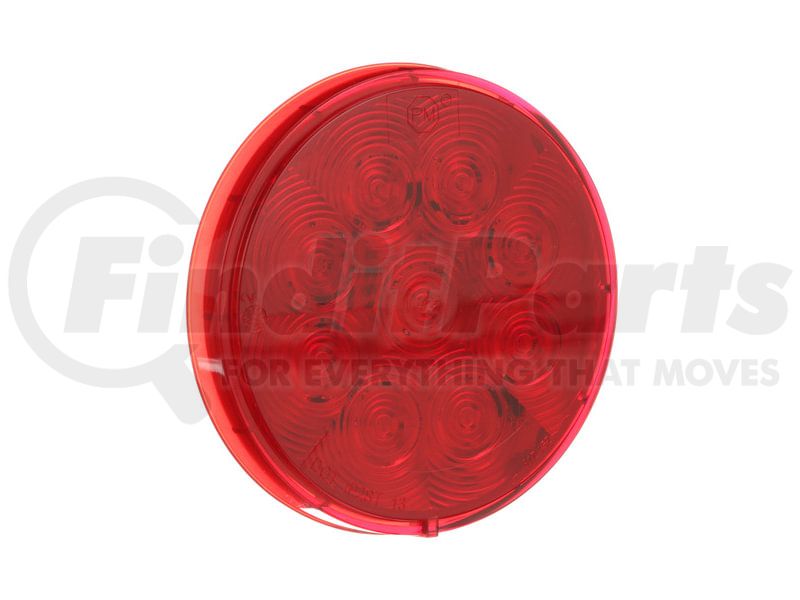

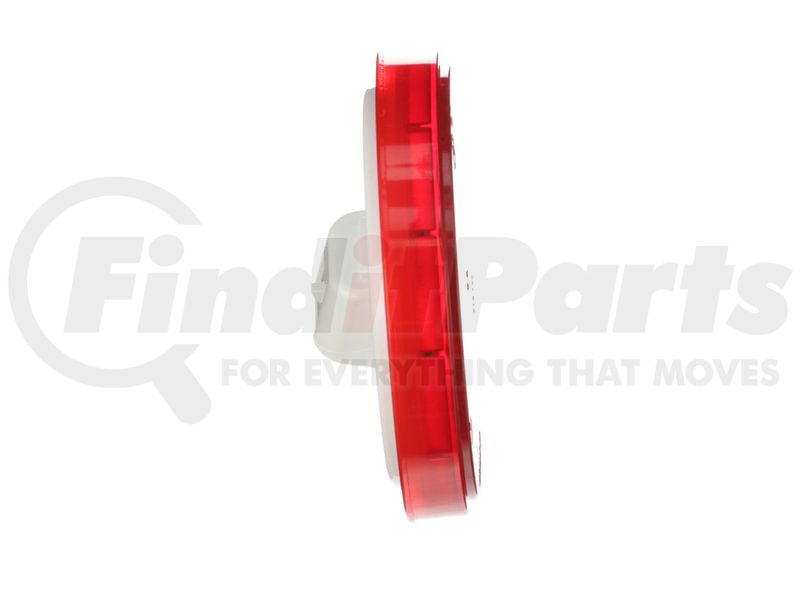

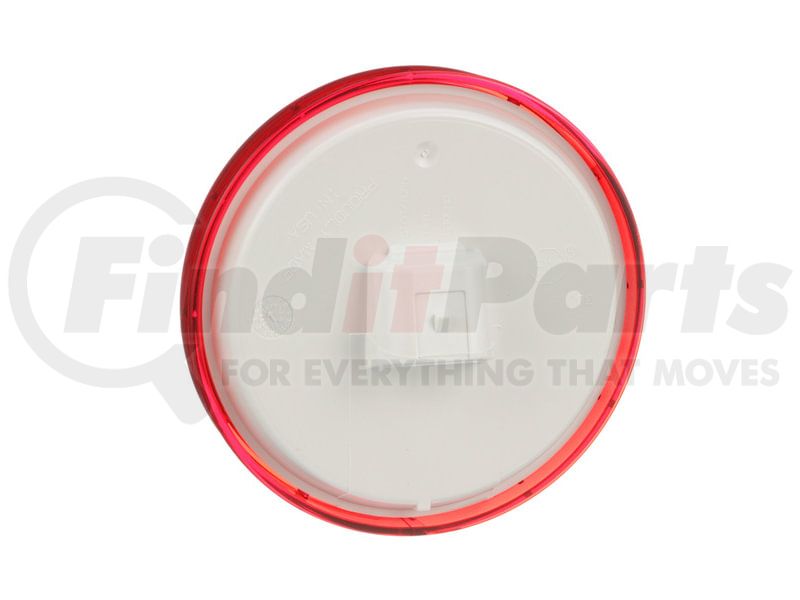

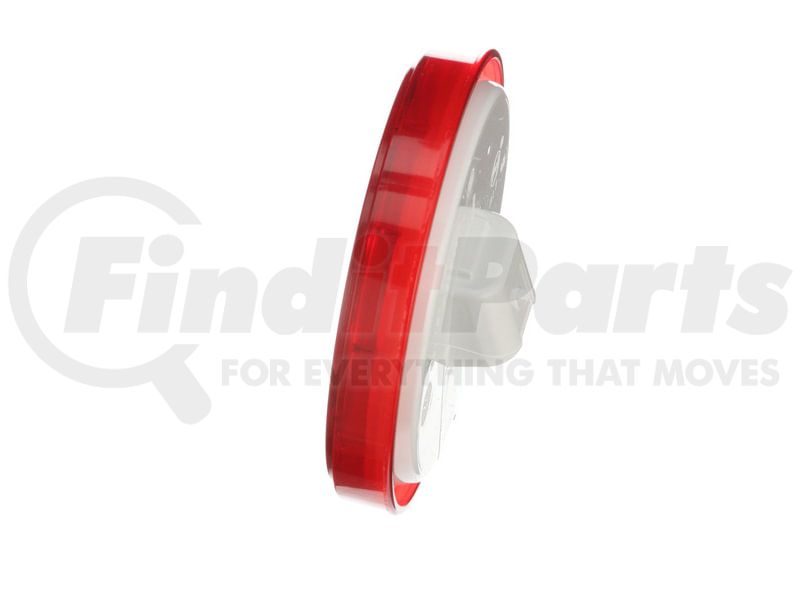

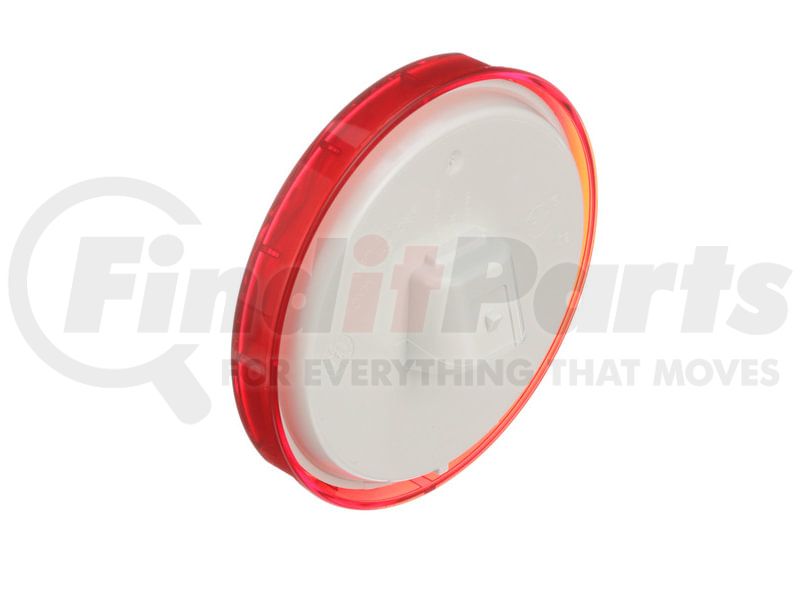

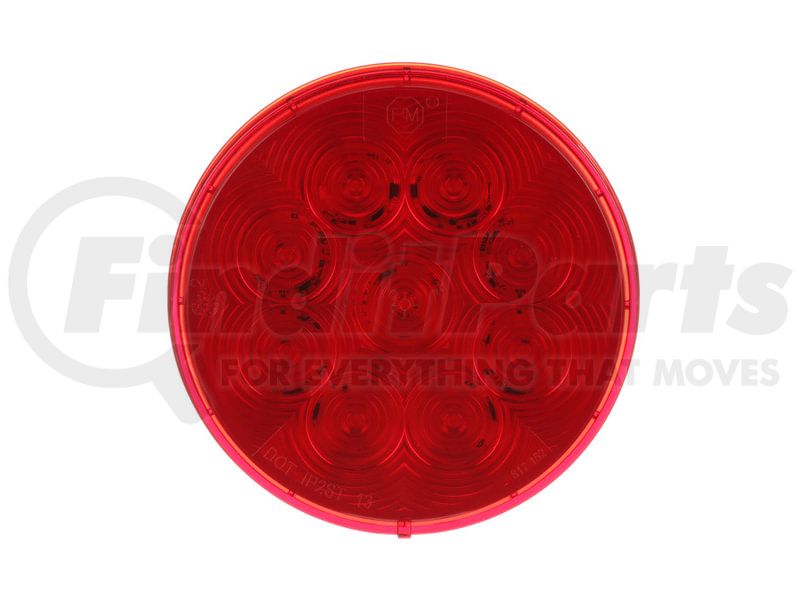

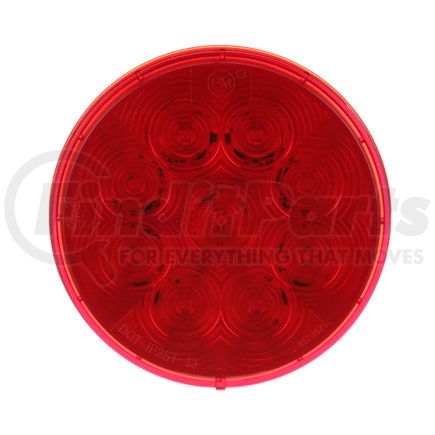

LED STOP/TURN/TAIL, ROUND, 9 DIODE AMP HOUSING GROMMET-MOUNT 4"

Features & Benefits

  • 9 diodes.
  • Defender harness & lighting system approved.
  • Lumenx® lens and circuitry.
  • Made in USA.
  • Multivolt version available.
  • Voltage Regulated.
  • White diodes behind red lens.
  • Advanced optics fully illuminate lens.
  • AMP-compatible connector integrated into housing.
  • Regulated design provides voltage protection and consistent light output over a wide voltage range.
  • 818-9 has flange integrated into the housing.
  • 817-9 has skirted weld joint for added protection against moisture.
  • 9-32 volt operating range is compatible with 12V and 24V vehicles.
  • Does not require “Top” positioning to meet FMVSS 108 standard.
  • 817 kit includes light, grommet and 817-49 plug.
  • 818 kit includes light and 817-49 plug.

426-18: grommet (poly pack - std qty 12)

Product Attributes

Bulb Technology LED
Bulb/diode Count 9
California Proposition 65 Required Y
Container Type poly bag
Diameter 4.25 IN
Family LumenX
Height 4.25 in
Integral Reflex N
Length 4.25 in
Lens Color red
Light Color red
Marine Use Y
Maximum Voltage 32 Volts
Minimum Voltage 9 Volts
Mounting Type grommet
Multi-volt Y
Regulatory Compliance DOT
Shape round
Termination AMP
Voltage 12 Volts
Width 1.49 in

Part Interchanges

PETERSON LIGHTING 817R-9 Cross Reference

We have 1 alternatives for the 817R-9 by PETERSON LIGHTING:

Peterson Lighting® is a family-owned company that produces and distributes vehicle safety lighting systems mirrors, and other related safety products and accessories. It has been in the business for 75 years, and currently, it offers over 2,200 products designed for various applications, including tilt-bed and cargo vehicles and light- and medium-duty trailers. Peterson Lighting believes that full commitment to quality is its responsibility as a market leader. All its components are designed and manufactured only in its ISO 9001/QS-9000-certified facility in Grandview, MO. This facility is handled by knowledgeable and highly skilled specialists, who are as dedicated and passionate as the company when it comes to quality.
