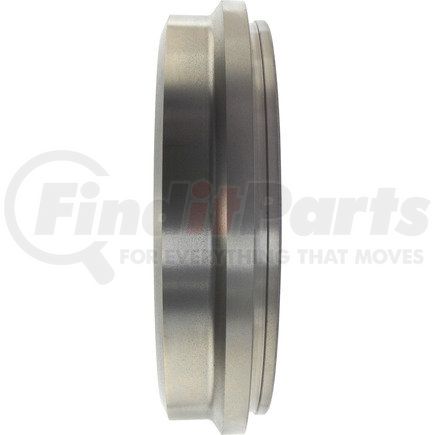

Centric 123.99034 - C-Tek Standard Brake Drum
$10549
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description
C-Tek Standard Brake Drum
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
Product Attributes
| Misc Holes [cntrc] | 1 |
| Weight [cntrc] Kgs | 9.727 |
| Weight [cntrc] Lbs | 21.400 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 139.700 |
| Bolt Circle Diameter [cntrc] In | 5.500 |
| Hub Hole / Register [cntrc] Mm | 101.100 |
| Hub Hole / Register [cntrc] In | 3.980 |
| Height [cntrc] Mm | 80.500 |
| Height [cntrc] In | 3.169 |
| Friction Surface Width [cntrc] Mm | 65.800 |
| Friction Surface Width [cntrc] In | 2.591 |
| Product Grade [cntrc] | Standard |
| Maximum Brake Diameter (Discard) | 296.500 MM |
| Maximum Brake Diameter (Discard) | 11.670 IN |
| Bolt Hole Quantity | 6 |
| Outside Diameter | 337.000 MM |
| Outside Diameter | 13.268 IN |
| Outer Cooling Fins | No |
| Mounting Hole Diameter | 12.700 MM |
| Mounting Hole Diameter | 0.500 IN |
| Nominal Drum Diameter | 295.000 MM |
| Nominal Drum Diameter | 11.614 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| UPC | 889590001921 |
Part Interchanges
CENTRIC 123.99034 Cross Reference
We have 1 alternatives for the 123.99034 by CENTRIC:
Fits Vehicles
- Chevrolet S10 (2016-2017)
- Chevrolet Colorado (2013-2015)
