Name: Redneck Trailer 9080648 Al-Ko 8 on 6.5in Hub & Drum Only For 8K Axles
SKU: 9080648
Price: 681.91 USD
Availability: OutOfStock

REDNECK TRAILER part description

Al-Ko Hayes Trailer Hub and Drum Only W/ 8 on 6.5" Bolt Pattern For 8K Al-Ko/Hayes Axles
Used on Al-Ko/Hayes 8,000lb drum brake axles. Comes with races already installed.
• Hub/Drum
• 8 on 6.5" bolt pattern with 9/16" studs
• Uses 25580(1.75" ID) & 02475(1.25" ID) bearings
• Uses 25520(3.265" OD) & 02420(2.688" OD) races (Already Installed)
• The drum is 12" inside and 3-3/8" deep
Items Sold Separately
• 25580 inner bearing (1)
• 02475 outer bearing (1)
• 25520 inner race (1)
• 02420 outer race (1)
• 10-63 oil seal (1) (2.25" x 3.376)
• 6-53 lug nuts (8)
• RG04-280 oil cap w/plug (1)

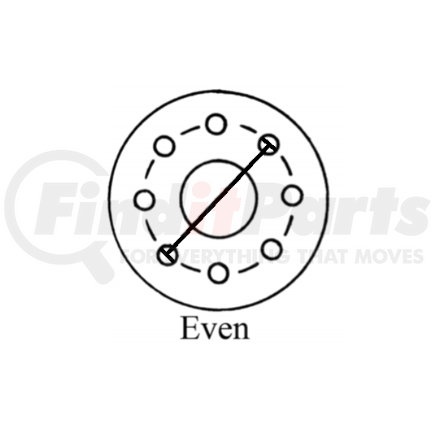

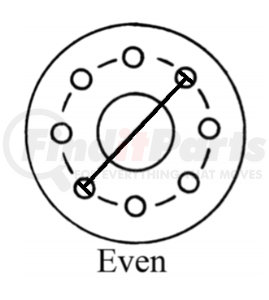

Please refer to the diagram Image for these measurements

To determine the bolt circle on hubs or wheels with an even number of studs, measure center-to-center of studs directly across from each other on the diameter(bolt patterns are always measured in inches). Example: 8 on 6 1/2 would mean 8 studs with 6 1/2” center-to-center diameter.
