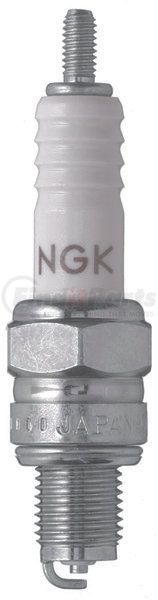

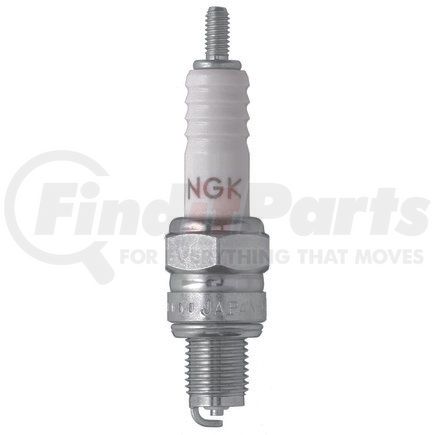

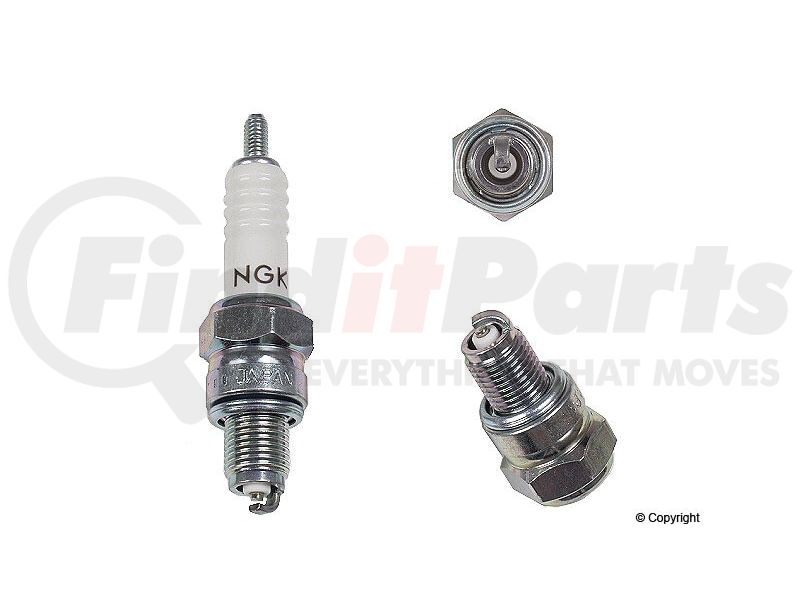

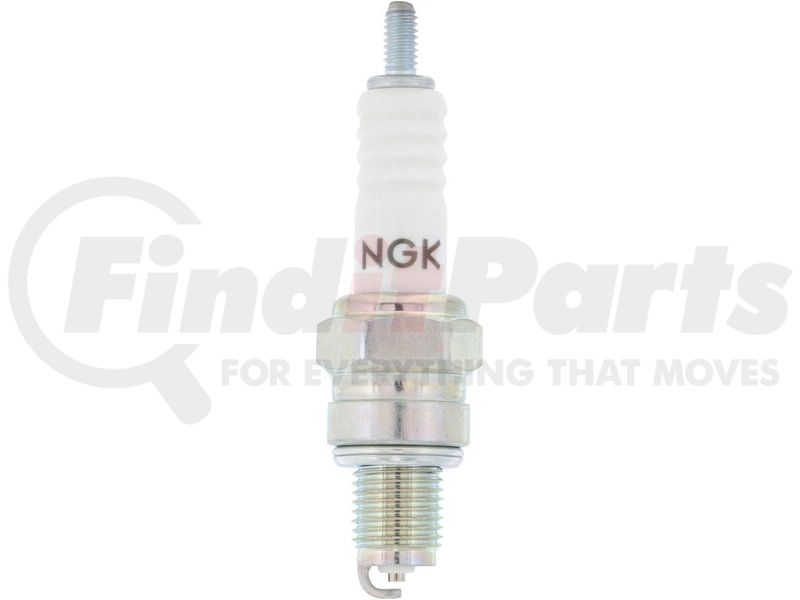

NGK Spark Plugs C6HSA - NGK Standard Spark Plug
- Part Number
- C6HSA
- Manufacturer
- NGK SPARK PLUGS
- Description
-
NGK Standard Spark Plug
details
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
NGK SPARK PLUGS part description
Product Description
NGK Standard Spark Plug
Features & Benefits
- ACTUAL OE or EQUIVALENT DESIGN: OEM quality construction nickel alloy center electrode provides consistent performance
- RECOMMENDED USAGE: Best for vehicles with OE nickel alloy plugs, not recommended on vehicles with factory precious metal plugs
- NGK's OE CERAMIC TECHNOLOGY: High grade alumina silicate ceramic creates a stronger insulator for optimal dielectric performance
- SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
- COLD-ROLLED THREADS: Prevents cross-threading and damage to cylinder heads
- TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
Product Attributes
| Stock Number | 3228 |
| Part Number | C6HSA |
| Short Style Spark Plug | No |
| Service Number | C6HSA |
| Resistance | 0.0 82 |
| Ground Electrode Tip Design | Standard |
| Ground Configuration | J-Gap |
| Ground Electrode Core Material | Nickel |
| Washer Included | Yes |
| Grade Type | Regular |
| Electrical Terminal Type | Stud |
| Center Electrode Core Material | Copper |
| Center Electrode Tip Material | Nickel |
| Pre-Gap Size | .028 IN |
| Ground Electrode Quantity | 1 |
| Hex Size | 5/8" (16mm) |
| Insulator Height | 1.88 IN |
| Manufacturer Heat Range | 6 |
| Seat Type | Flat |
| Reach | 0.500 IN |
| Thread Diameter | 0.394 IN |
| Insulator Material | Ceramic |
| Resistor Type | No |
| 6648 | 0.0 IN |
| Ground Electrode Tip Material | Nickel |
| 9459 | No |
| 9506 | 0.06 IN |
| 9608 | Standard |
| 9745 | Crush |
| 9805 | Non-Projected |
Additional Information
| Harmonized Tariff Code (HTS) | 8511100000 |
| Warranty Time UOM | MO |
| Warranty Time | 2 |
| Country of Origin (Primary) | TH |
| UPC | 00087295132289 |
| VMRS Code | 033003005 |
| UNSPSC | 26101732 |
Part Interchanges
- NGK 3228
- Torch A6TC
- Honda 98056-56713
- Honda 98056-56717
- DENSO Auto Parts U20FS
- DENSO Auto Parts 4002
- DENSO Auto Parts U20FS-U
- Kawasaki 92070-1071
- Kawasaki 92070-1114
- Kawasaki 92070-1130
- Champion Spark Plug P-Z9HC
- Champion Spark Plug Z10
- Champion Spark Plug Z12
- Motorcraft PE3
- Motorcraft PV3
- Autolite 2796
- Suzuki 09482-00294
- Yamaha 94700-00841
- Yamaha 94700-00850-00-IV
- Yamaha 94701-00256
- Yamaha 94703-00213
- Yamaha 94703-00256
- SYM 98056-56713-00
- ACDelco S104F
- ACDelco MC104F
- Mazda 0243-18-110
Fits Vehicles
- Can-Am DS 90 X (2013-2014)
- Can-Am DS 70 (2009-2014)
- Yamaha XV250 V Star 250 (2008-2019)
- Can-Am DS 90 (2008-2014)
- Yamaha XV250 Virago (1995-1999)
- Yamaha XV250 Route 66 (1988-1990)
- Kawasaki KLF110 Mojave (1987-1988)
- Kawasaki KLT110 (1986)
- Yamaha XC125 Riva 125 (1985-1989, 1991-2001)
- Honda Z50R (1979-1981)
- Honda Z50A (1972-1978)
- Honda C70M (1971)
- Honda PC50 (1970)
