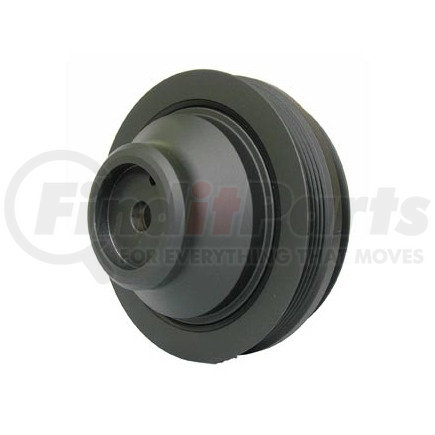

(888) 312-8812 Login SignupDAYCO PB1270N PREMIUM OEM REPL BALANCER, POWERBOND
Tap to view 14 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
DAYCO PB1270N Part Description
DAYCO PB1270N Specifications
Product Attributes
| Overall Outside Diameter | 6.142 in |
| Overall Outside Diameter | 156.00 mm |
| Crank Bore | 2.048 in |
| Crank Bore | 52.00 mm |
| Overall Width | 3.504 in |
| Overall Width | 89.00 mm |
| Nose Outside Diameter | 0 in |
| Nose Outside Diameter | 0.00 mm |
| Ring Width | 1.141 in |
| Ring Width | 28.98 mm |
| Bolt Hole Quantity | 0 |
| Crank Trigger/Exciter Plate | No |
| Woodruff Key Included | No |
| Hardware Included | No |
| Counterweight Balance | Neutral, no counterweight |
| Timing Marks | Yes |
| Installation Instructions Included | No |
| Number of Integrated Pulleys | 2 |
| Pulley 1 Type | V-Belt |
| Pulley 1 Outside Diameter | 5.670 in |
| Pulley 1 Outside Diameter | 144.000 mm |
| Pulley 1 Number Of Grooves | 1 mm |
| Pulley 2 Type | Serpentine |
| Pulley 2 Outside Diameter | 5.906 in |
| Pulley 2 Outside Diameter | 150.000 mm |
| Pulley 2 Number Of Grooves | 5 mm |
| Outer Ring Material | Cast Iron |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8483509080 |
| UPC | 09317010001134 |
DAYCO PB1270N Part Interchanges
| Brand | Part Number |
|---|---|
| ATP | 102090 |
| DORMAN | 594-056 |
| Pioneer | DA-12 |
| NAPA | 6005244 |
| PIONEER | DA-1260 |
DAYCO PB1270N Fits Vehicles
- Mitsubishi Montero Sport (1997-1998, 2000-2004)
- Mitsubishi Montero (1994-1998, 2000)
