Product Description

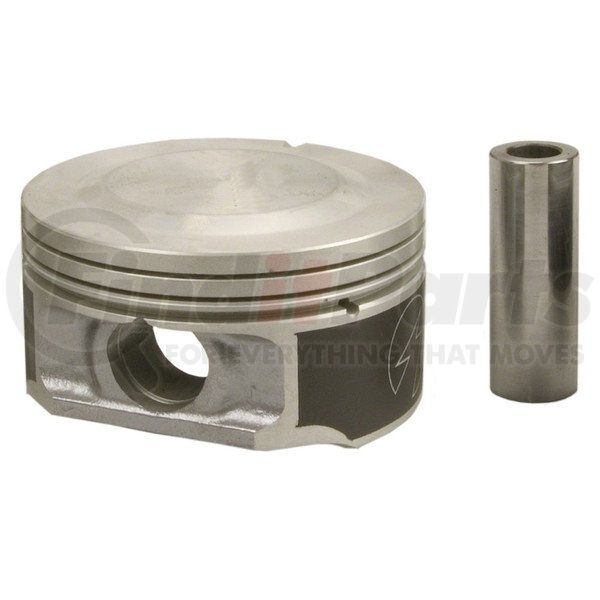

Engine Piston Set

Application Summary

2006-2004 GMT L/D L5 3460cc 3.5L Chevrolet; 2006-2002 GMT L/D L6 4160cc 4.2L Chevrolet; 2006 IST L/D L5 3460cc 3.5L Chevrolet

Features & Benefits

  • Helps improve cylinder sealing for less blow-by
  • Ayuda a mejorar el sellado del cilindro para reducir la fuga de gases
  • Aide à améliorer l'étanchéité du cylindre pour réduire la perte de gaz dans le carter
  • Retains standard ring gaps in top groove
  • Retiene los espacios entre anillos estándar en la ranura superior
  • Maintenir les écarts de bague standard dans la rainure supérieure
  • DUROSHIELD® skirt-coated piston
  • Pistón con recubrimiento del faldón DUROSHIELD®
  • Piston revêtu d'une jupe DUROSHIELDMD
  • Moly-graphite coating extends engine life
  • El recubrimiento de molibdeno y grafito prolonga la vida útil del motor
  • Le revêtement de molybdène et de graphite prolonge la durée de vie du moteur
  • Reduces friction for higher fuel economy
  • Reduce la fricción para un mayor ahorro de combustible
  • Réduit les frottements pour une meilleure économie de carburant
  • Prevents damage from inadequate lubrication on start-up
  • Previene daños por lubricación inadecuada en el arranque
  • Prévient les dommages causés par une lubrification inadéquate au démarrage

Product Attributes

Oversized No
Top Compression Ring Thickness 1.20 MM
Second Compression Ring Thickness 1.20 MM
Oil Ring Thickness 2.50 MM
Piston Pin Outside Diameter 0.9058 IN
Piston Pin Outside Diameter 23.007 MM
Assembly Lubricant Included No
Bore Diameter 3.6614 IN
Bore Diameter 93.0 MM
Piston Material Hypereutectic
9607 1.098 IN
Head Illustration 59

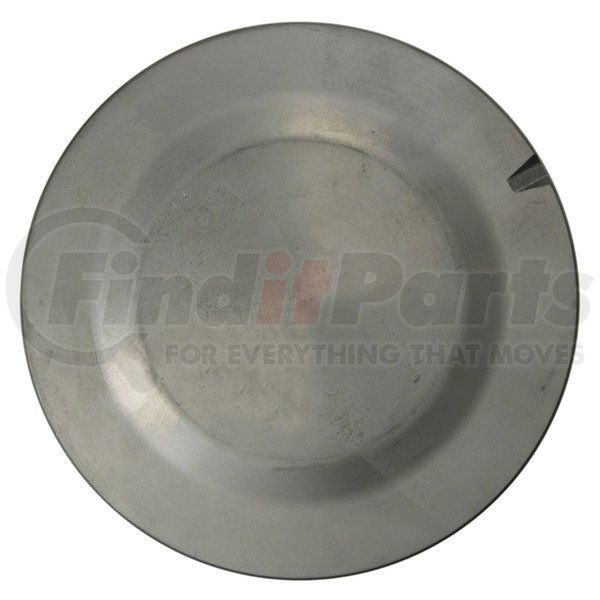

Head Type Domed Head .093 high x 2.630 dia.; DUROSHIELD~ skirt coated piston
Minimum Clearance See Piston Fitting Information on carton label
Part Description Engine Piston
Pin Offset (Inch) 0.03
Pin Offset (MM) 0.762

Additional Information

Country of Origin (Primary) IN
Canadian Harmonizing Tariff Code 8409910010
Harmonized Tariff Code (Schedule B) 8409915085
Harmonized Tariff Code (HTS) 8409915085
UPC 00614046782792

Part Interchanges

Sealed Power® supplies the industry with application-specific engine components, including pistons, engine bearings, piston rings, oil pumps, and lifters. These replacement parts are crafted from automotive experts' product development efforts and commitment to putting only the best on the streets and highways. The engineers behind Sealed Power products design and evaluate these engine parts to provide solutions for repowering engines due to wear. Backed by many years of industry experience and expertise, Sealed Power offers components that deliver unparalleled performance and reliability. All Sealed Power Engine Parts meet the industry's highest standards for product quality. This is what makes Sealed Power the professional's brand of choice when it comes to engine parts.

Fits Vehicles

  • Chevrolet Trailblazer EXT (2002-2006)
  • GMC Envoy XL (2002-2006)
  • GMC Envoy XUV (2004-2005)
  • Isuzu i-350 (2006)
  • Hummer H3 (2006)
  • Saab 9-7x (2005-2009)
  • Chevrolet Colorado (2004-2006)
  • Isuzu Ascender (2004-2005)
  • Oldsmobile Bravada (2002-2004)
  • GMC Envoy (2002-2009)
  • GMC Canyon (2004-2006)
  • Chevrolet Trailblazer (2002-2009)
  • Buick Rainier (2004-2007)
