SEALED POWER ENGINE PARTS R-10248 25 - "Speed Pro" Engine Piston Ring Set - Premium
- Part Number
- R-10248 25
- Manufacturer
- SEALED POWER ENGINE PARTS
- Description
-
"Speed Pro" Engine Piston Ring Set - Premium
details
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
SEALED POWER ENGINE PARTS part description
Product Description

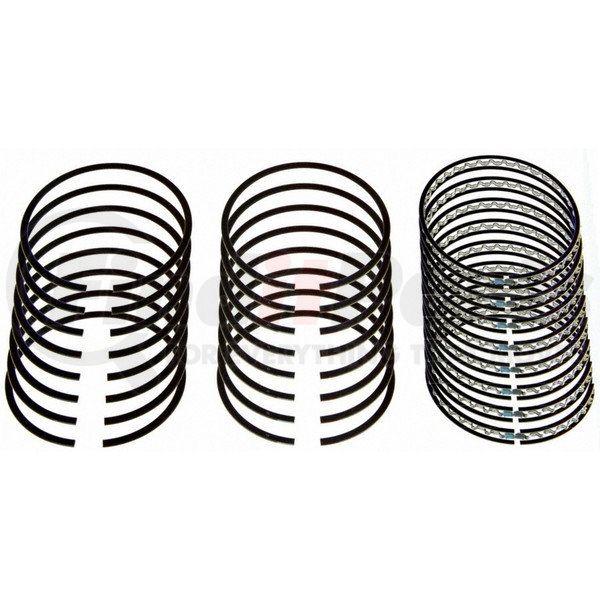

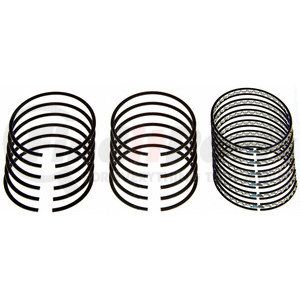

Engine Piston Ring Set
Application Summary
Performance
Features & Benefits
- Recommended for all racing applications (where file fitting the ring end gap will deliver maximum power)
- Recomendado para todas las aplicaciones de carreras (donde el ajuste mediante limado del espacio del extremo del anillo brindara la maxima potencia)
- Recommande pour toutes les applications de course (ou l'ajustement de l'ecart entre les bagues permet d'obtenir une puissance maximale)
- Face of top rings are coated with the latest generation Plasma-Moly
- La cara de los anillos superiores esta recubierta con plasma de molibdeno de ultima generacion
- La face des bagues superieures est recouverte d'un revetement de plasma de molybdene de derniere generation
- Plasma-Moly ring face decreases friction and is highly resistant to scuffing
- La cara del anillo de plasma de molibdeno reduce la friccion y es muy resistente a las rozaduras
- La face de la bague en plasma de molybdene diminue les frottements et est tres resistante aux eraflures
- Ensures dependable performance and superior service life
- Garantiza un rendimiento confiable y una vida util superior
- Assure des performances fiables et une duree de vie superieure
- Application specific design to ensure a perfect fit and correct operation for unsurpassed quality that you can trust
- Diseno especifico que garantiza una adaptacion perfecta y un funcionamiento correcto para una calidad excelente en la que puede confiar
- Conception propre aux applications pour garantir un ajustement parfait et un bon fonctionnement pour une qualite inegalee a laquelle vous pouvez faire confiance
Product Attributes
| Oversized | Yes |
| Oversized Amount | 0.020 IN |
| Outside Diameter | 4.1500 IN |
| Cylinder Quantity | 8 |
| Bore Diameter | 4.1250 IN |

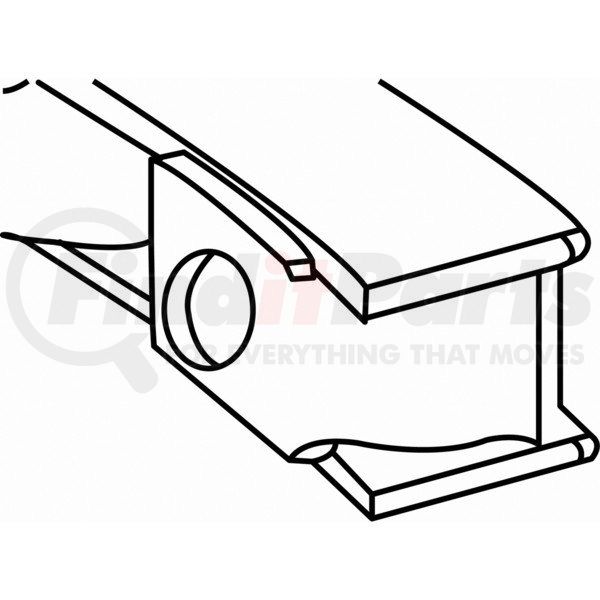

| Oil Ring Design | SS50U |

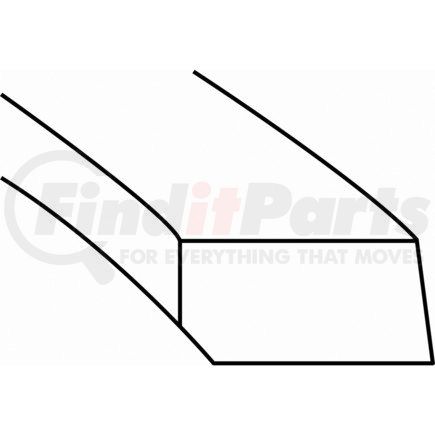

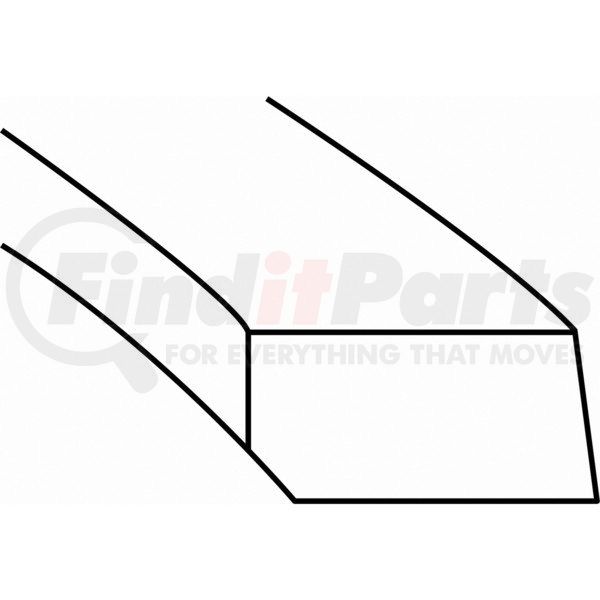

| 2nd Ring Face Design | Reverse Torsional |

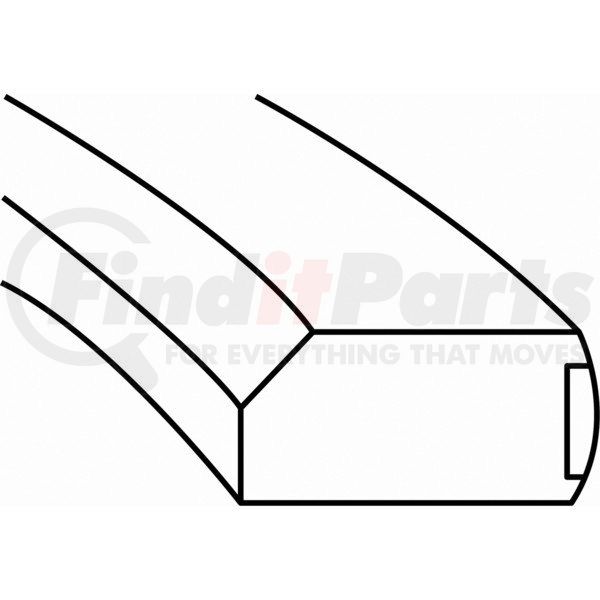

| Top Ring Face Design | Torsional Barrel Face |
| 2nd Ring Material | Cast Iron |
| Top Ring Material | Ductile Iron Plasma Moly |
| Oil Ring Tension | Standard |
| Oil Ring Width | 0.1875 IN |
| 2nd Ring Width | 0.0625 IN |
| Top Ring Width | 0.0625 IN |
| File Fit | Yes |
| Outside Diameter (In) | 4.1500 |
| Part Description | Engine Piston Ring Set |
| Ring Set Groove Widths (in) | 1/16 x 1/16 x 3/16 |
Additional Information
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8409910010 |
| Harmonized Tariff Code (HTS) | 8409915085 |
| UPC | 00053059294272 |
