PETERSON LIGHTING 824R-7 - 824R-7/826R-7 4" Round LED Stop, Turn and Tail Lights - Flange Mount
- Part Number
- 824R-7
- Manufacturer
- PETERSON LIGHTING
- Description
-
824R-7/826R-7 4" Round LED Stop, Turn and Tail Lights - Flange Mount
details
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
PETERSON LIGHTING part description
California Proposition 65 Warning
California Proposition 65 Warning

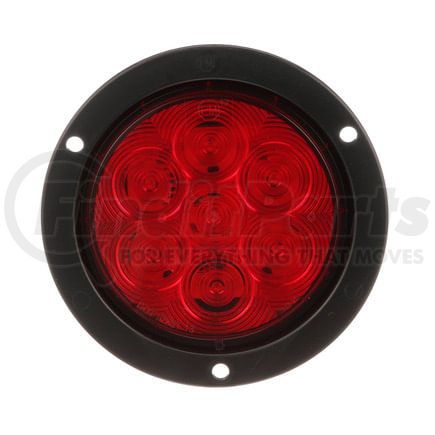

824R-7/826R-7 4" Round LED Stop, Turn and Tail Lights
Peterson Lighting Piranha® 4" Round LED Stop, Turn & Tail Light
For enhanced trucking safety, equip your truck with a high-quality Peterson Lighting Piranha® 4" round LED stop, turn & tail light. This product effectively combines all three crucial functions—stop, turn, and tail— into one industry-standard light.
Features & Benefits
- A flange-mount 7-diode light with white diodes behind the red lens
- Comes with an industry-standard PL3 socket and flange that is integrated into the housing to form a single unit
- With locking tabs for added plug retention
- Product’s operating range is 9 to 16 volts and is made compatible with 431-491 connecting plug
- Does not have to be “Top” positioned to meet FMVSS 108 requirements
- Engineered to meet the needs of any stop tail turn lighting situation
Product Description
LED STOP/TURN/TAIL, ROUND, FLANGE-MOUNT 4"
Features & Benefits
- 7 diodes.
- Available in retail-friendly Viz Pack.
- Lumenx® lens and circuitry.
- Made in USA.
- Voltage Regulated.
- White diodes behind red lens.
- Advanced optics fully illuminate lens.
- Industry-standard PL3 socket integrated into housing.
- 824-7 has flange integrated into the housing.
- 826-7 has skirted weld joint for added protection against moisture.
- 9–16 volt operating range.
- Regulated design provides voltage protection and consistent light output over a wide voltage range.
- Does not require “Top” positioning to meet FMVSS 108 standard.
- 826 kit includes light, grommet and 431-491 plug.
- 824 kit includes light and 431-491 plug.
431-491: plug (poly pack - std qty 12)
Product Attributes
| Bulb Technology | LED |
| Bulb/diode Count | 7 |
| California Proposition 65 Required | Y |
| Container Type | poly bag |
| Diameter | 5.5 IN |
| Family | LumenX |
| Height | 5.5 in |
| Integral Reflex | N |
| Length | 5.5 in |
| Lens Color | red |
| Light Color | red |
| Marine Use | Y |
| Maximum Voltage | 16 Volts |
| Minimum Voltage | 9 Volts |
| Mounting Type | flange |
| Multi-volt | N |
| Regulatory Compliance | DOT |
| Shape | round |
| Termination | PL3 |
| Voltage | 12 Volts |
| Width | 1.49 in |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8512204000 |
| UPC | 00044464993478 |
| VMRS Code | 034002059 |
Part Interchanges
PETERSON LIGHTING 824R-7 Cross Reference
We have 1 alternatives for the 824R-7 by PETERSON LIGHTING:
Peterson Lighting® is a family-owned company that produces and distributes vehicle safety lighting systems mirrors, and other related safety products and accessories. It has been in the business for 75 years, and currently, it offers over 2,200 products designed for various applications, including tilt-bed and cargo vehicles and light- and medium-duty trailers. Peterson Lighting believes that full commitment to quality is its responsibility as a market leader. All its components are designed and manufactured only in its ISO 9001/QS-9000-certified facility in Grandview, MO. This facility is handled by knowledgeable and highly skilled specialists, who are as dedicated and passionate as the company when it comes to quality.
