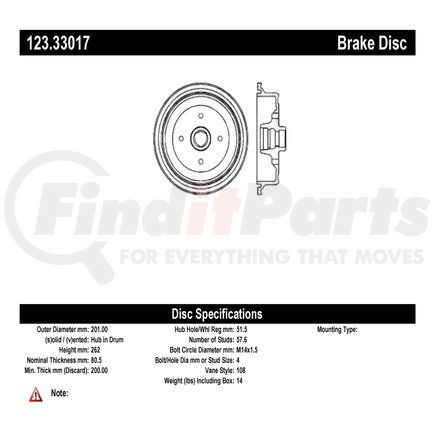

Centric 123.33017 - C-Tek Standard Brake Drum
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
CENTRIC part description
Product Description
C-Tek Standard Brake Drum
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
Product Attributes
| Weight [cntrc] Kgs | 6.364 |
| Weight [cntrc] Lbs | 14.000 |
| Mounting Type [cntrc] | Hub & Drum |
| Bolt Circle Diameter [cntrc] Mm | 107.950 |
| Bolt Circle Diameter [cntrc] In | 4.250 |
| Stud Thread Pitch [cntrc] Mm | 1.50 |
| Hub Hole / Register [cntrc] Mm | 57.600 |
| Hub Hole / Register [cntrc] In | 2.268 |
| Height [cntrc] Mm | 80.500 |
| Height [cntrc] In | 3.169 |
| Friction Surface Width [cntrc] Mm | 51.500 |
| Friction Surface Width [cntrc] In | 2.028 |
| Product Grade [cntrc] | Standard |
| Maximum Brake Diameter (Discard) | 201.000 MM |
| Maximum Brake Diameter (Discard) | 7.913 IN |
| Bolt Hole Quantity | 4 |
| Outside Diameter | 262.000 MM |
| Outside Diameter | 10.315 IN |
| Outer Cooling Fins | No |
| Mounting Hole Diameter | 14.000 MM |
| Nominal Drum Diameter | 200.000 MM |
| Nominal Drum Diameter | 7.874 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Country of Origin (Primary) | CN |
| NAFTA Preference Criterion Code | B |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 805890914518 |
Part Interchanges
Fits Vehicles
- Audi Coupe (1984-1986)
