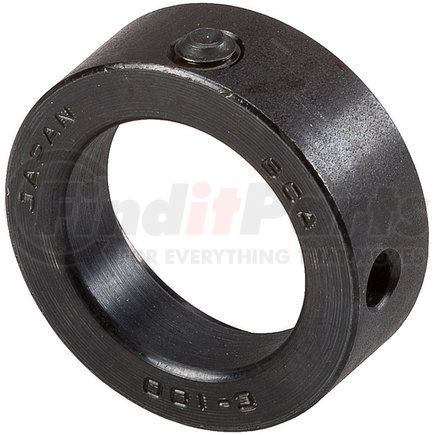

Name: National Seals C100 National C-100 Multi-Purpose Bearing
SKU: c100
Price: 11.49 USD
Availability: InStock

Multi-Purpose Bearing

Locking Collar for 1" Adptr Brg

BUILT TO LAST -- Advanced heat treatment process for strength
PREMIUM MATERIALS -- Precision manufactured using premium-grade steel for lasting performance and extended bearing life
RELIABLE PERFORMANCE -- Element size and quantity are engineered to meet or exceed the load rating of OE bearings
COMPREHENSIVE COVERAGE -- Industry-leading coverage for domestic and import applications
RIGOROUS TESTING -- Comprehensive testing throughout design and development processes by National engineers for quality you can count on 
RIGOROUS TESTING?--?Comprehensive?testing throughout design and development processes by National engineers for quality you can count on

Bore (inch)	1.000 IN
Bore (mm)	25.400 MM
Inner Race Bore (inch)	1.000 IN
Inner Race Bore (mm)	25.400 MM
Inner Race Radius (inch)	0.030 IN
Inner Race Radius (mm)	0.762 MM
Inner Race Width (inch)	0.531 IN
Inner Race Width (mm)	13.492 MM
Outer Race Outside Diameter (inch)	1.503 IN
Outer Race Outside Diameter (mm)	38.176 MM
Outer Race Width (inch)	0.531 IN
Outer Race Width (mm)	13.495 MM
Outside Diameter (inch)	1.503 IN
Outside Diameter (mm)	38.176 MM
Part Description	Locking Collar
Series	LKCOLL
Type	LC
Width (inch)	0.531 IN
Width (mm)	13.495 MM
Grade Type	Premium

Country of Origin (Primary)	JP
Harmonized Tariff Code (Schedule B)	8482105048
Harmonized Tariff Code (HTS)	8482105048
Canadian Harmonizing Tariff Code	8482100000
UPC	00724956002207
