Name: FEDERAL MOGUL-NATIONAL SEALS 99187
SKU: 99187
Price: 30.78 USD
Availability: InStock

FEDERAL MOGUL-NATIONAL SEALS part description

Product Description

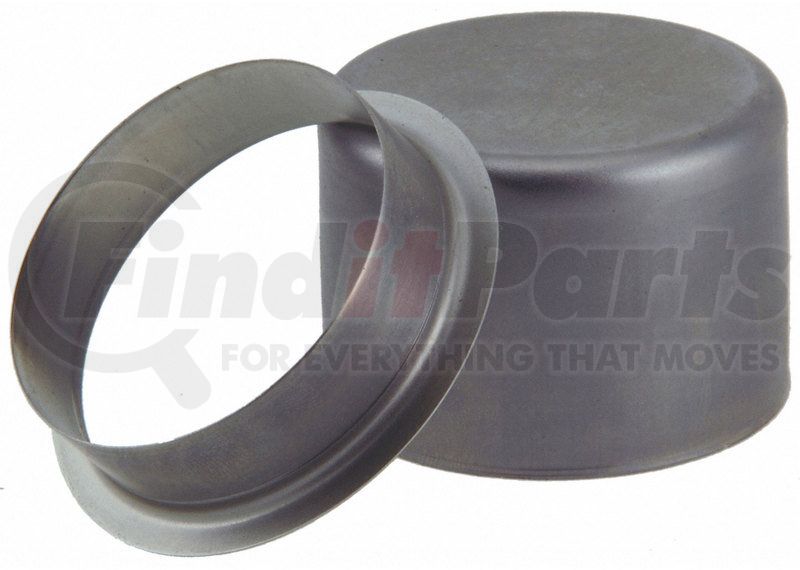

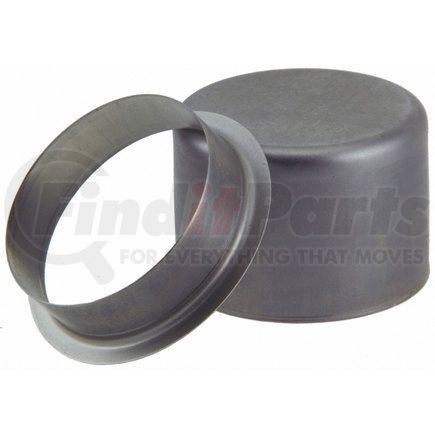

Redi-sleeve

Application Summary

1970-1974 Land Rover Range Rover (Front); 1970-1974 Land Rover Land Rover (Front); 2011-2018 Ram 1500 (Front); 2011-2019 Ram 2500 (Front); 2011-2019 Ram 3500 (Front); 2014-2018 Ram 4500 (Front); 2014-2018 Ram 5500 (Front); 2019 Ram 1500 Classic (Front); 2011 Ram Dakota (Front); 1962-1965 Apollo GT (Front); 1967-1970 Fargo A108 Van (Rear Outer, Front); 1964-1970 Fargo A100 Van (Front, Rear Outer); 1966-1967 Fargo D100 Panel Delivery (Front, Rear Outer); 1966-1972 Fargo D110 Pickup (Front, Rear Outer); 1966-1967 Fargo D200 Panel Delivery (Front, Rear Outer); 1966-1972 Fargo D210 Pickup (Front, Rear Outer); 1962-1965 Fargo F100 Panel Delivery (Front, Rear Outer); 1962-1965 Fargo F100 Pickup (Front, Rear Outer); 1962-1965 Fargo FW100 Panel Delivery (Front); 1962-1965 Fargo FW100 Pickup (Front); 1966-1969 Fargo P100 Parcel Delivery (Front, Rear Outer); 1962-1971 Fargo P200 Parcel Delivery (Front, Rear Outer); 1959-1971 Fargo P300 Parcel Delivery (Rear Outer, Front); 1966-1967 Fargo W100 Panel Delivery (Front, Rear Outer); 1969-1972 Fargo W110 Pickup (Front, Rear Outer); 1971-1972 Fargo B100 Van (Front, Rear Outer); 1971-1972 Fargo B200 Van (Front, Rear Outer); 1971-1972 Fargo B300 Van (Front, Rear Outer); 1966-1972 Fargo D100 Pickup (Front, Rear Outer); 1966-1972 Fargo D200 Pickup (Front, Rear Outer); 1966-1972 Fargo W100 Pickup (Front, Rear Outer); 1966-1972 Fargo W200 Pickup (Front, Front Outer, Rear Outer); 2011-2012 VPG MV-1 (Front); 2006 Morgan Roadster (Front); 2014-2017 Mobility Ventures MV-1 (Front); 1989-1998 Suzuki Sidekick (Front); 1965-1974 Checker Aerobus (Rear Outer, Front); 1969-1974 Checker Taxicab (Front); 1975-1982 Checker Marathon (Front); 1977-1992 Jaguar XJS (Front); 2002-2008 Jaguar X-Type (Front); 2000-2008 Jaguar S-Type (Front); 1987 Jaguar Vanden Plas (Front); 1977-1989 Jaguar XJ12 (Front); 1987-1989 Jaguar XJ6 (Front); 1971-1975 Opel 1900 (Front); 1971-1975 Opel Manta (Front); 1968-1973 Opel Opel...

Features & Benefits

Designed to repair damaged, grooved or worn shafts
Disenado para reparar ejes danados, ranurados o desgastados
Durable stainless steel construction for corrosion-free sealing surface that surpasses most original shaft specifications
Construccion durable de acero inoxidable para una superficie de sellado libre de corrosion que supera la mayoria de las especificaciones originales del eje
Ideal for a shaft where indications of seal wear, such as tracks or grooves have developed
Ideal para un eje donde se han desarrollado indicios de desgaste del sello, como pistas o ranuras
Ultra-thin construction (0.01/0.25mm wall thickness) allows original seal size to be used with minimal additional lip loading
Construccion ultrafina (espesor de pared de 0,01 / 0,25 mm) permite utilizar el tamano de sello original con una carga de labio adicional minima
Easy to install with removable flange and installation tool
Facil de instalar con brida extraible y herramienta de instalacion
Installation tool reduces sleeve distortion and allows for installation without removal from the shaft
La herramienta de instalacion reduce la distorsion de la camisa y permite la instalacion sin quitarla del eje

Product Attributes

Flanged Outside Diameter (inch)	2.203 IN
Flanged Outside Diameter (mm)	55.960 MM
Installation Depth (inch)	1.000 IN
Installation Depth (mm)	25.400 MM
Material	Stainless Steel
Overall Width (inch)	0.688 IN
Overall Width (mm)	17.480 MM
Part Description	Redi-Sleeve
Product Description	Repair Sleeve
Shaft Size (inch)	1.875 IN
Shaft Size (mm)	47.625 MM
Shaft Size Maximum (inch)	1.878 IN
Shaft Size Maximum (mm)	47.700 MM
Shaft Size Minimum (inch)	1.872 IN
Shaft Size Minimum (mm)	47.550 MM
Unit of Dimension	Inch
Width On Shaft (inch)	0.563 IN
Width On Shaft (mm)	14.300 MM

Additional Information

Country of Origin (Primary)	US
Harmonized Tariff Code (Schedule B)	7307290090
Harmonized Tariff Code (HTS)	7307290090
UPC	00724956213658
