Name: FEDERAL MOGUL-NATIONAL SEALS 9773
SKU: 9773
Price: 24.55 USD
Availability: InStock

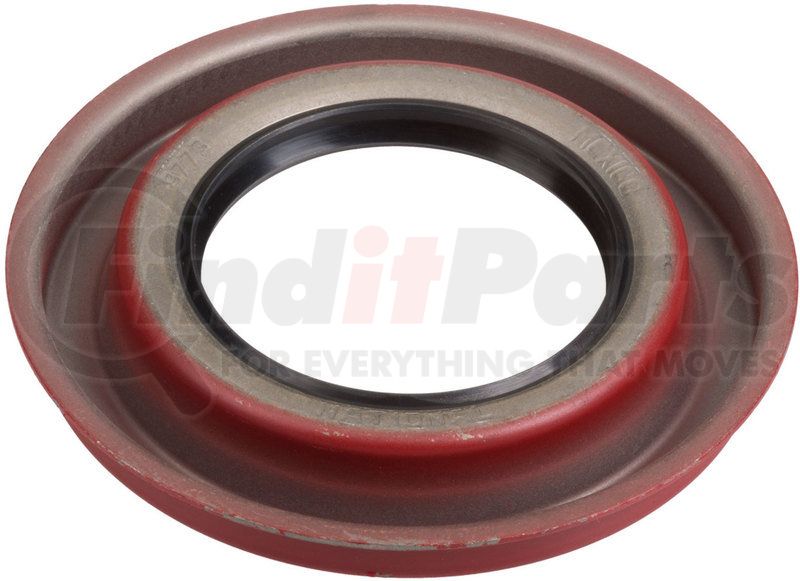

FEDERAL MOGUL-NATIONAL SEALS part description

Product Description

Oil Seal

Application Summary

Chrysler 77-60; Ford 88-61; GM 96-61; IH 83-60; Mack 93-79; Volvo 93-78 Pin

Features & Benefits

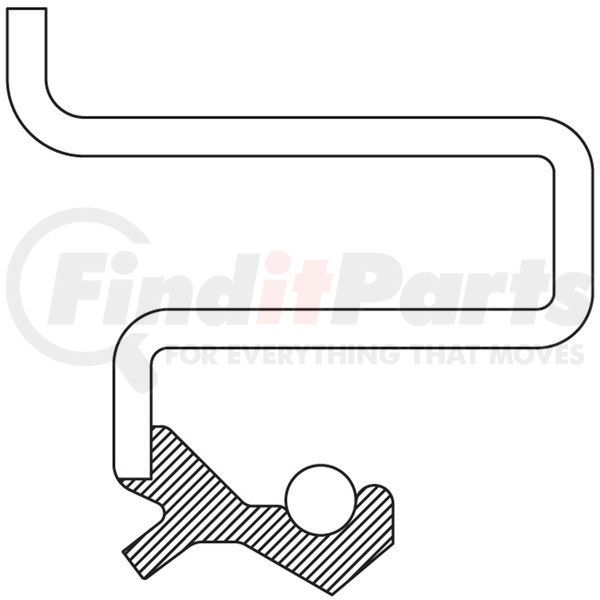

Design type: spring loaded; multi-lip
Tipo de diseno: Carga de resorte; multi-labio
Temperature range: -20degF to 300degF / -29degC to 49degC
Rango de temperatura: -20degF a 300degF / -29degC a 49degC
Resistance to EP lubricants
Resistente a lubricantes EP
Low swell in hydrocarbon fluids
Baja expansion en fluidos de hidrocarburos
Delivers quality and reliable performance for every type of repair
Ofrece un rendimiento confiable de calidad para cada tipo de reparacion

Product Attributes

Material	Polyacrylate
Inside Diameter	2.625 IN
Thickness	0.718 IN
Outside Diameter	4.568 IN
Sealing Material	Polyacrylate
Flanged Outside Diameter (inch)	4.987 IN
Flanged Outside Diameter (mm)	126.670 MM
Housing Bore (inch)	4.564 IN
Housing Bore (mm)	115.930 MM
Outside Diameter (inch)	4.568 IN
Outside Diameter (mm)	116.030 MM
Part Description	Oil Seal
Redicoat	Yes
Series	9000
Shaft (inch)	2.625 IN
Shaft (mm)	66.680 MM
Type	74
Unit of Dimension	Inch
Width (inch)	0.718 IN
Width (mm)	18.240 MM

Additional Information

Country of Origin (Primary)	MX
Harmonized Tariff Code (Schedule B)	4016931020
Harmonized Tariff Code (HTS)	4016931020
UPC	00724956212323

Part Interchanges

The National Seals® is a proud designer and supplier of wheel bearings and oil seals with a focus on quality, safety, and continuous improvement. The key to its success may be attributed to its hardworking and dedicated team of engineers who keep pace with the industry to provide premium wheel end solutions for light and commercial vehicle applications. Federal-Mogul acquired the National Seal Division of the National Motor Bearing Company only in 1942. But the brand National Seals has already cemented itself as one of the most respected names in the industry. Over the years, it has remained fully committed to providing only the highest quality seals and bearings that meet or exceed OE specifications.
