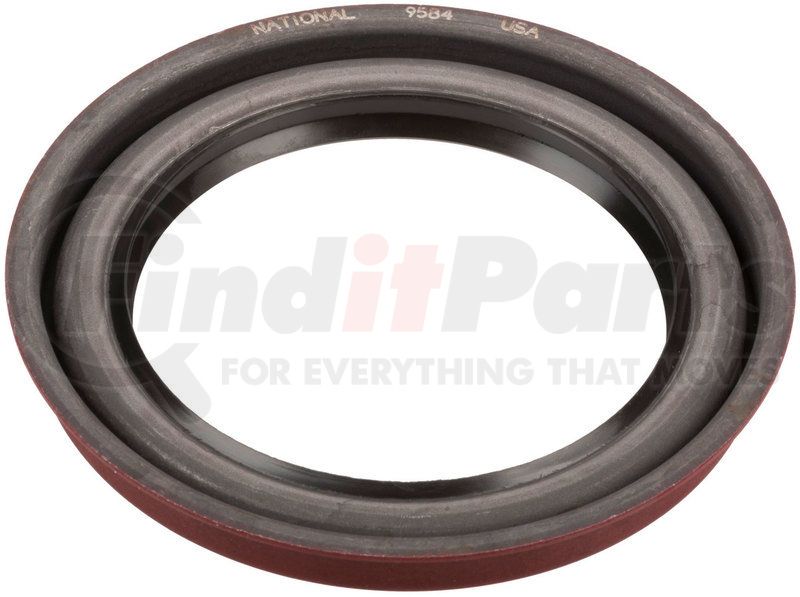

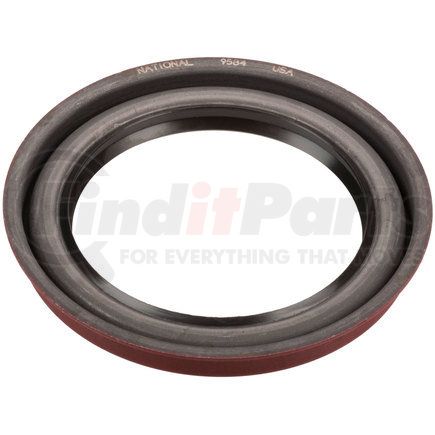

FEDERAL MOGUL-NATIONAL SEALS 9584 - Oil Seal
- Part Number
- 9584
- Manufacturer
- FEDERAL MOGUL-NATIONAL SEALS
- Description
-
Oil Seal
details
In stock
Our price is so low on this item, we can't list it online!
Call us at (888) 312-8812 to speak with a customer service representative who can quote the price over the phone.
FEDERAL MOGUL-NATIONAL SEALS part description
Product Description
Oil Seal
Application Summary
Ford Truck 84-68 FWRW
Features & Benefits

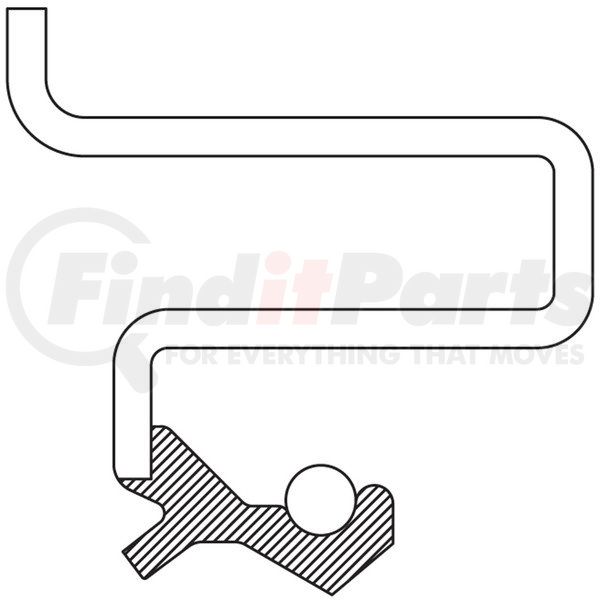

- Design type: spring loaded; multi-lip
- Tipo de diseno: Carga de resorte; multi-labio
- Temperature range: -40degF to 225degF / -40degC to 107degC
- Rango de temperatura: -40degF a 225degF / -40degC a 107degC
- Good low temperature capability
- Buena capacidad a bajas temperaturas
- Low swell in hydrocarbon fluids
- Baja expansion en fluidos de hidrocarburos
- Delivers quality and reliable performance for every type of repair
- Ofrece un rendimiento confiable de calidad para cada tipo de reparacion
Product Attributes
| Material | Nitrile |
| Inside Diameter | 3.562 IN |
| Thickness | 0.550 IN |
| Outside Diameter | 4.761 IN |
| Sealing Material | Nitrile |
| Flanged Outside Diameter (inch) | 5.125 IN |
| Flanged Outside Diameter (mm) | 130.175 MM |
| Housing Bore (inch) | 4.755 IN |
| Housing Bore (mm) | 120.780 MM |
| Outside Diameter (inch) | 4.761 IN |
| Outside Diameter (mm) | 120.930 MM |
| Part Description | Oil Seal |
| Redicoat | Yes |
| Series | 9000 |
| Shaft (inch) | 3.562 IN |
| Shaft (mm) | 90.470 MM |
| Type | 74 |
| Unit of Dimension | Inch |
| Width (inch) | 0.550 IN |
| Width (mm) | 13.970 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 4016931020 |
| Harmonized Tariff Code (HTS) | 4016931020 |
| UPC | 00724956211715 |
