Name: FEDERAL MOGUL-NATIONAL SEALS 472572
SKU: 472572
Price: 11.92 USD
Availability: InStock

FEDERAL MOGUL-NATIONAL SEALS part description

Product Description

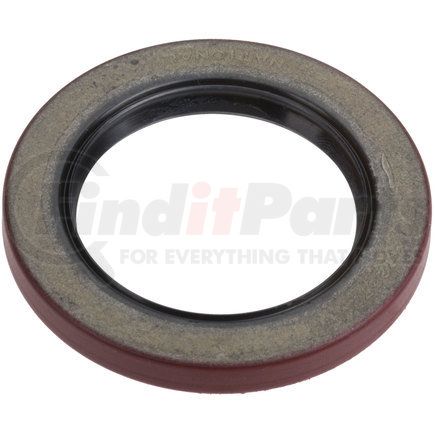

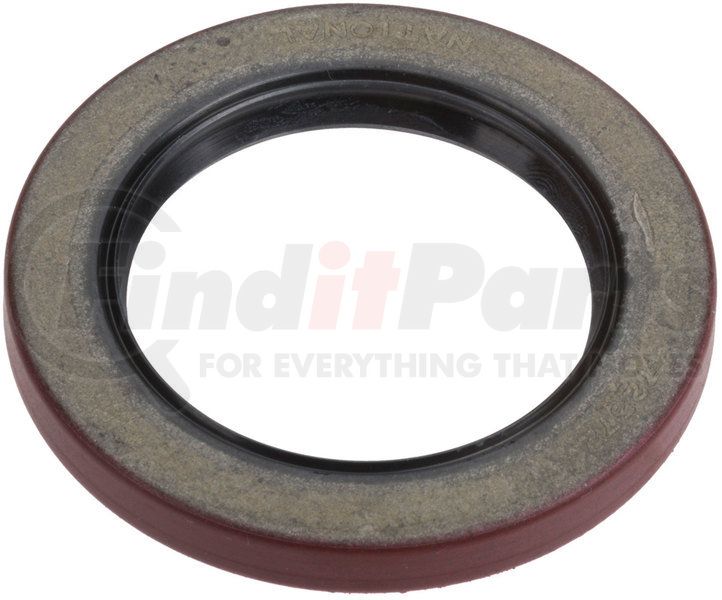

Man Trans Output Shaft Seal

Application Summary

1974-1982 Chevrolet Camaro (Transmission Base Gear: 4 & Transmission Control Type: Manual / Qualifier: with 32 Splines, with Borg-Warner T10S Transmission, with Borg-Warner T10W Transmission, with Borg-Warner T10CC Transmission); 1974-1988 Chevrolet Corvette (Transmission Base Gear: 4 & Transmission Control Type: Manual / Qualifier: with 32 Splines, with Borg-Warner T10S Transmission, with Borg-Warner T10W Transmission, with Borg-Warner T10Y Transmission, with Borg-Warner T10CC Transmission, 1st Design, with 0.312 (in) Width, 2.754 (in) Outside Diameter, 2nd Design); 1981 Chevrolet Malibu (Transmission Base Gear: 4 & Transmission Control Type: Manual / Qualifier: with 32 Splines, with Borg-Warner T10CC Transmission); 1981 Chevrolet Monte Carlo (Transmission Base Gear: 4 & Transmission Control Type: Manual / Qualifier: with 32 Splines, with Borg-Warner T10CC Transmission); 1974-1982 Pontiac Firebird (Transmission Base Gear: 4 & Transmission Control Type: Manual / Qualifier: with 32 Splines, with Borg-Warner T10W Transmission, with Borg-Warner T10S Transmission, with Borg-Warner T10Y Transmission, with Borg-Warner T10Z Transmission, with Borg-Warner T10CC Transmission); 1974-1979 Pontiac Grand Am (Transmission Base Gear: 4 & Transmission Control Type: Manual / Qualifier: with 32 Splines, with Borg-Warner T10W Transmission, with Borg-Warner T10S Transmission, with Borg-Warner T10Z Transmission); 1979 Pontiac Grand LeMans (Transmission Base Gear: 4 & Transmission Control Type: Manual / Qualifier: with 32 Splines, with Borg-Warner T10Z Transmission); 1979 Pontiac LeMans (Transmission Base Gear: 4 & Transmission Control Type: Manual / Qualifier: with 32 Splines, with Borg-Warner T10Z Transmission)

Features & Benefits

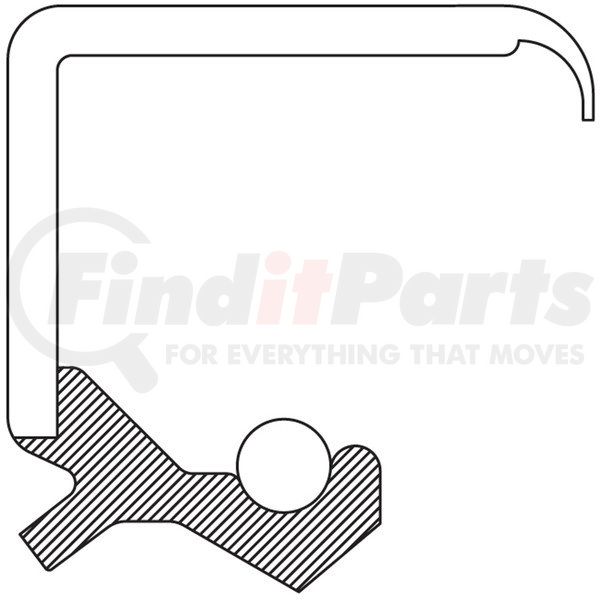

Design type: spring loaded; multi-lip
Tipo de diseno: Carga de resorte; multi-labio
Temperature range: -40degF to 225degF / -40degC to 107degC
Rango de temperatura: -40degF a 225degF / -40degC a 107degC
Good low temperature capability
Buena capacidad a bajas temperaturas
Low swell in hydrocarbon fluids
Baja expansion en fluidos de hidrocarburos
Delivers quality and reliable performance for every type of repair
Ofrece un rendimiento confiable de calidad para cada tipo de reparacion

Product Attributes

Material	Nitrile
Inside Diameter	1.875 IN
Thickness	0.312 IN
Outside Diameter	2.754 IN
Footnote	Zero Duplication Part
Housing Bore (inch)	2.750 IN
Housing Bore (mm)	69.850 MM
Outside Diameter (inch)	2.754 IN
Outside Diameter (mm)	69.950 MM
Part Description	Oil Seal
Redicoat	Yes
Series	470000
Shaft (inch)	1.875 IN
Shaft (mm)	47.630 MM
Type	47
Unit of Dimension	Inch
Width (inch)	0.312 IN
Width (mm)	7.920 MM

Additional Information

Country of Origin (Primary)	MX
Harmonized Tariff Code (Schedule B)	4016931020
Harmonized Tariff Code (HTS)	4016931020
UPC	00724956140428
