NATIONAL SEALS part description

Product Description

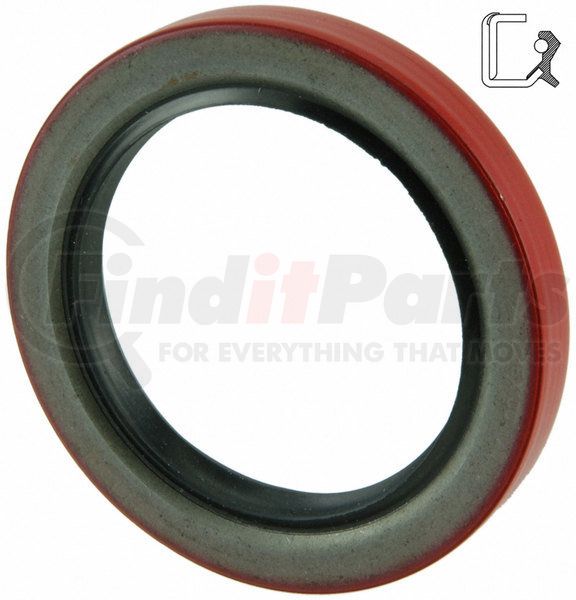

Multi-Purpose Seal

Application Summary

Industrial 2.750x4.249x0.468

Features & Benefits

  • Design type: spring loaded; multi-lip
  • Temperature range: -40°F to 225°F / -40°C to 107°C
  • Good low temperature capability
  • Low swell in hydrocarbon fluids
  • Delivers quality and reliable performance for every type of repair

Product Attributes

Inside Diameter 2.750 IN
Inside Diameter 69.850 MM
Outside Diameter 4.254 IN
Outside Diameter 108.050 MM
Width 0.468 IN
Width 11.890 MM
Material Nitrile
Footnote Zero Duplication Part
Part Description Oil Seal
Redicoat Yes
Sealing Material Nitrile
Series 410000
Thickness 0.468 IN
Thickness 11.890 MM
Type 41
Unit of Dimension Inch
Housing Bore 4.249 IN
Housing Bore 107.920 MM
Shaft Diameter 2.750 IN
Shaft Diameter 69.850 MM

Additional Information

Country of Origin (Primary) MX
Harmonized Tariff Code (Schedule B) 4016931020
Harmonized Tariff Code (HTS) 4016931020
UPC 00724956120994
