Name: FEDERAL MOGUL-NATIONAL SEALS 415836
SKU: 415836
Price: 13.81 USD
Availability: InStock

FEDERAL MOGUL-NATIONAL SEALS part description

Product Description

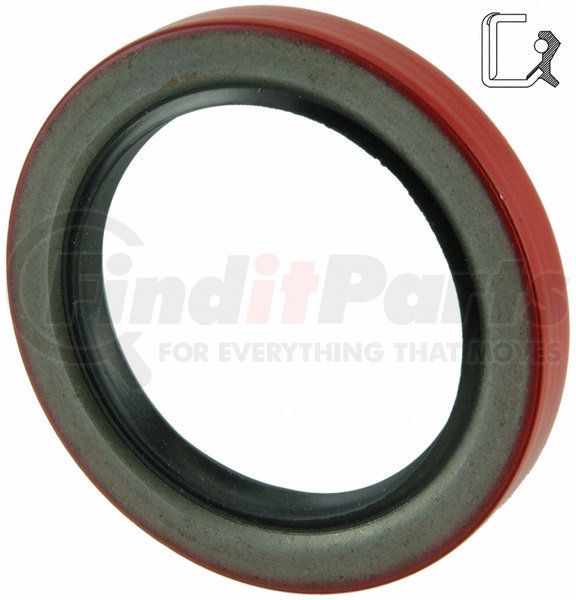

Oil Seal

Application Summary

Industrial 3.000x4.003x0.437

Features & Benefits

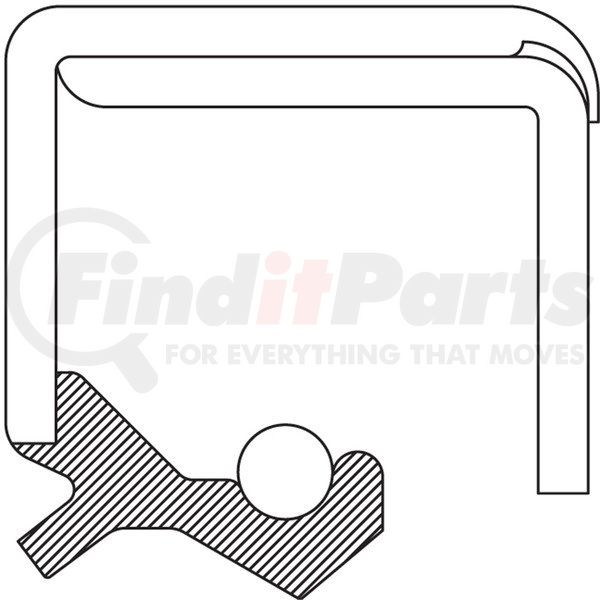

Design type: spring loaded; multi-lip
Tipo de diseno: Carga de resorte; multi-labio
Temperature range: -40degF to 225degF / -40degC to 107degC
Rango de temperatura: -40degF a 225degF / -40degC a 107degC
Good low temperature capability
Buena capacidad a bajas temperaturas
Low swell in hydrocarbon fluids
Baja expansion en fluidos de hidrocarburos
Delivers quality and reliable performance for every type of repair
Ofrece un rendimiento confiable de calidad para cada tipo de reparacion

Product Attributes

Material	Nitrile
Inside Diameter	3.000 IN
Thickness	0.437 IN
Outside Diameter	4.008 IN
Sealing Material	Nitrile
Housing Bore (inch)	4.003 IN
Housing Bore (mm)	101.680 MM
Outside Diameter (inch)	4.008 IN
Outside Diameter (mm)	101.800 MM
Part Description	Oil Seal
Redicoat	Yes
Series	410000
Shaft (inch)	3.000 IN
Shaft (mm)	76.200 MM
Type	41
Unit of Dimension	Inch
Width (inch)	0.437 IN
Width (mm)	11.100 MM

Additional Information

Country of Origin (Primary)	MX
Harmonized Tariff Code (Schedule B)	4016931020
Harmonized Tariff Code (HTS)	4016931020
UPC	00724956120185

Part Interchanges
