NATIONAL SEALS 350567 - Oil Seal
- Part Number
- 350567
- Manufacturer
- NATIONAL SEALS
- Description
-

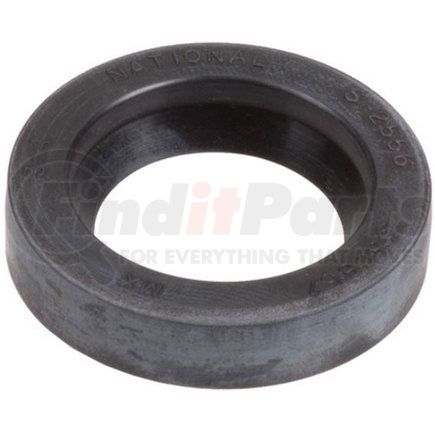

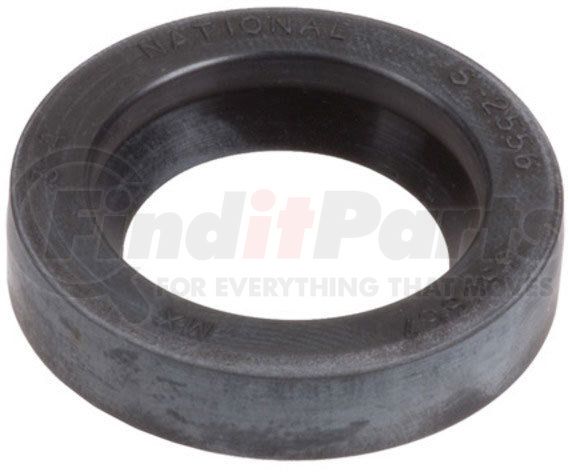

Oil Seal
details
Our price is so low on this item, we can't list it online!
Call us at (888) 312-8812 to speak with a customer service representative who can quote the price over the phone.
NATIONAL SEALS part description
California Proposition 65 Warning
California Proposition 65 Warning
Product Description
Multi-Purpose Seal
Application Summary
1986-1993 Mack CS200P Mid-Liner (Qualifier: with Spicer 5052 Transmission, 5 Speed, with Spicer 5852 Transmission, with Spicer 5252 Transmission); 1986-1993 Mack CS250P Mid-Liner (Qualifier: with Spicer 5252 Transmission, 5 Speed, with Spicer 5852 Transmission, with Spicer 5052 Transmission); 1986-1993 Mack CS300P Mid-Liner (Qualifier: with Spicer 5852 Transmission, 5 Speed, with Spicer 5052 Transmission, with Spicer 5252 Transmission); 1986-1993 Mack CS300T Mid-Liner (Qualifier: with Spicer 5852 Transmission, 5 Speed, with Spicer 5052 Transmission, with Spicer 5252 Transmission); 1980-1993 Mack MS200P Mid-Liner (Qualifier: with Spicer 5852 Transmission, 5 Speed, with Spicer 5052 Transmission, with Spicer 5252 Transmission); 1981-1993 Mack MS250P Mid-Liner (Qualifier: with Spicer 5252 Transmission, 5 Speed, with Spicer 5052 Transmission, with Spicer 5852 Transmission); 1981-1993 Mack MS300P Mid-Liner (Qualifier: with Spicer 5052 Transmission, 5 Speed, with Spicer 5252 Transmission, with Spicer 5852 Transmission); 1981-1993 Mack MS300T Mid-Liner (Qualifier: with Spicer 5852 Transmission, 5 Speed, with Spicer 5052 Transmission, with Spicer 5252 Transmission)
Features & Benefits

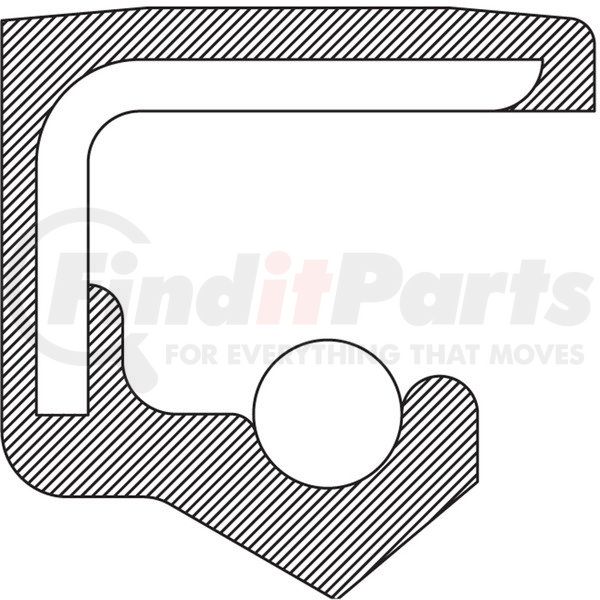

- Design type: spring loaded; single-lip
- Temperature range: -40°F to 225°F / -40°C to 107°C
- Good low temperature capability
- Low swell in hydrocarbon fluids
- Delivers quality and reliable performance for every type of repair
Product Attributes
| Inside Diameter | 0.875 IN |
| Inside Diameter | 22.230 MM |
| Outside Diameter | 1.385 IN |
| Outside Diameter | 35.180 MM |
| Width | 0.312 IN |
| Width | 7.920 MM |
| Material | Nitrile |
| Part Description | Oil Seal |
| Sealing Material | Nitrile |
| Series | 350000 |
| Thickness | 0.312 IN |
| Thickness | 7.920 MM |
| Type | 35 |
| Unit of Dimension | Inch |
| Housing Bore | 1.375 IN |
| Housing Bore | 34.930 MM |
| Shaft Diameter | 0.875 IN |
| Shaft Diameter | 22.230 MM |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 4016931020 |
| Harmonized Tariff Code (HTS) | 4016931020 |
| UPC | 00724956102617 |
Part Interchanges
Fits Vehicles
- Mack MS300T Mid-Liner (1981-1993)
- Mack MS300P Mid-Liner (1981-1993)
- Mack MS250P Mid-Liner (1981, 1983-1993)
- Mack MS200P Mid-Liner (1980-1982, 1984-1993)
- Mack CS300T Mid-Liner (1986-1993)
- Mack CS300P Mid-Liner (1986-1993)
- Mack CS250P Mid-Liner (1986-1993)
- Mack CS200P Mid-Liner (1986-1993)
