Name: FEDERAL MOGUL-NATIONAL SEALS 100494
SKU: 100494
Price: 28.27 USD
Availability: InStock

FEDERAL MOGUL-NATIONAL SEALS part description

Product Description

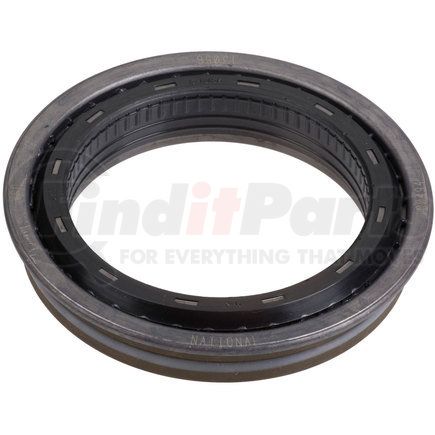

Oil Seal

Application Summary

Rockwell-Standard Pin

Features & Benefits

Design type: spring loaded; multi-lip
Tipo de diseno: Carga de resorte; multi-labio
Temperature range: -40degF to 400degF / -40degC to 204degC
Rango de temperatura: -40degF a 400degF / -40degC a 204degC
Excellent high temperature capabilities
Excelentes capacidades para altas temperaturas
Compatible with wide range of fluids
Compatible con una amplia gama de fluidos
Delivers quality and reliable performance for every type of repair
Ofrece un rendimiento confiable de calidad para cada tipo de reparacion

Product Attributes

Material	Fluoro-Elastomer
Inside Diameter	3.253 IN
Thickness	0.635 IN
Outside Diameter	4.260 IN
Sealing Material	Fluoro-Elastomer
Footnote	Sure-Lock(R) I.D. rib design
Housing Bore (inch)	4.249 IN
Housing Bore (mm)	107.920 MM
Installation Tool	RD2337
Outside Diameter (inch)	4.260 IN
Outside Diameter (mm)	108.200 MM
Part Description	Oil Seal
Series	100000
Shaft (inch)	3.253 IN
Shaft (mm)	82.630 MM
Type	08
Unit of Dimension	Inch
Width (inch)	0.635 IN
Width (mm)	16.130 MM

Additional Information

Country of Origin (Primary)	US
Harmonized Tariff Code (Schedule B)	4016931020
Harmonized Tariff Code (HTS)	4016931020
UPC	00614046158931

Part Interchanges

The National Seals® is a proud designer and supplier of wheel bearings and oil seals with a focus on quality, safety, and continuous improvement. The key to its success may be attributed to its hardworking and dedicated team of engineers who keep pace with the industry to provide premium wheel end solutions for light and commercial vehicle applications. Federal-Mogul acquired the National Seal Division of the National Motor Bearing Company only in 1942. But the brand National Seals has already cemented itself as one of the most respected names in the industry. Over the years, it has remained fully committed to providing only the highest quality seals and bearings that meet or exceed OE specifications.
