NATIONAL SEALS part description

Product Description

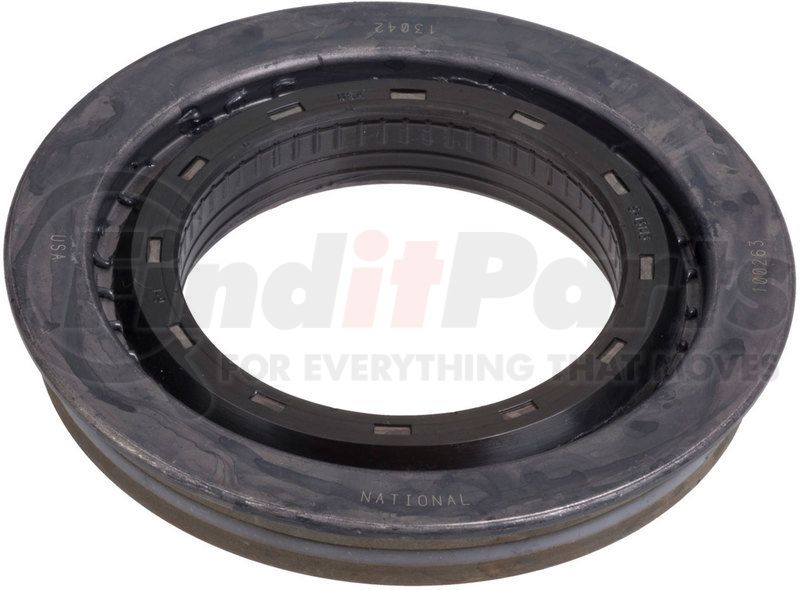

Multi-Purpose Seal

Application Summary

Rockwell-Standard Pin

Features & Benefits

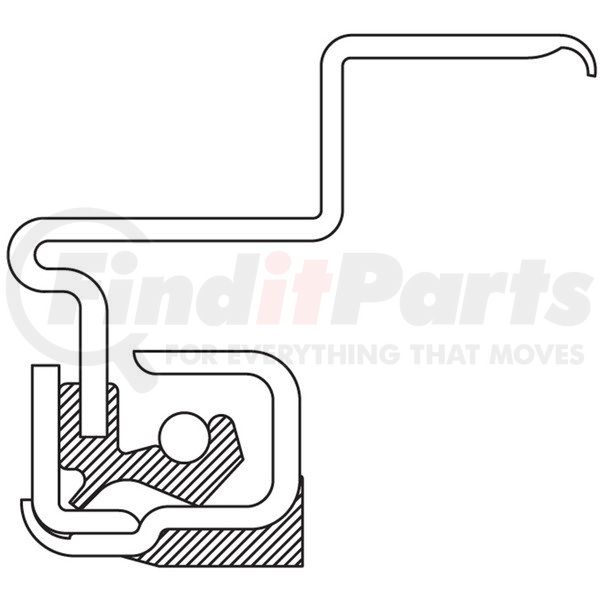

  • Design type: spring loaded; multi-lip
  • Temperature range: -40°F to 400°F / -40°C to 204°C
  • Excellent high temperature capabilities
  • Compatible with wide range of fluids
  • Delivers quality and reliable performance for every type of repair

Product Attributes

Inside Diameter 3.003 IN
Inside Diameter 76.280 MM
Outside Diameter 4.948 IN
Outside Diameter 125.680 MM
Width 0.788 IN
Width 20.020 MM
Material Fluoro-Elastomer
Installation Tool RD2338
Footnote Sure-Lock® I.D. rib design
Part Description Oil Seal
Sealing Material Fluoro-Elastomer
Series 100000
Thickness 0.788 IN
Thickness 20.020 MM
Type 08
Unit of Dimension Inch
Housing Bore 4.937 IN
Housing Bore 125.400 MM
Shaft Diameter 3.003 IN
Shaft Diameter 76.280 MM
Flanged Outside Diameter 5.375 in
Flanged Outside Diameter 136.525 mm

Additional Information

Country of Origin (Primary) US
Harmonized Tariff Code (Schedule B) 4016931020
Harmonized Tariff Code (HTS) 4016931020
UPC 00614046158917
