HORTON part description
Product Description

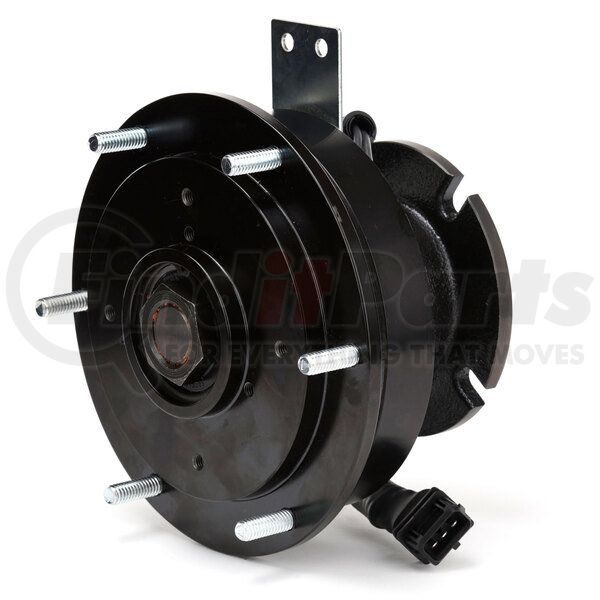

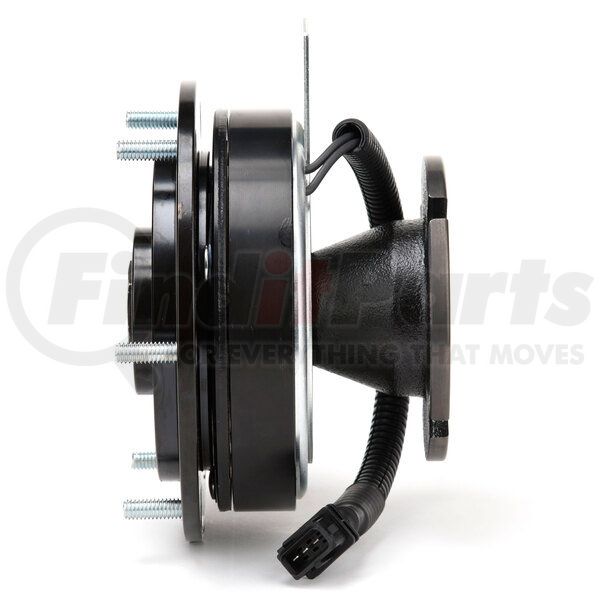

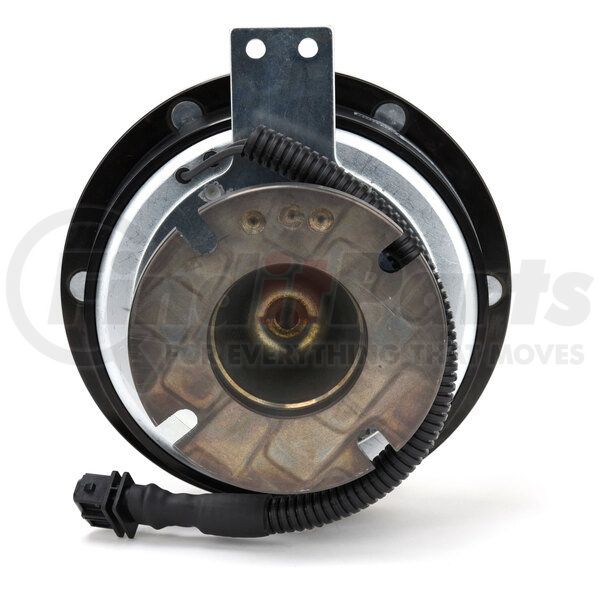

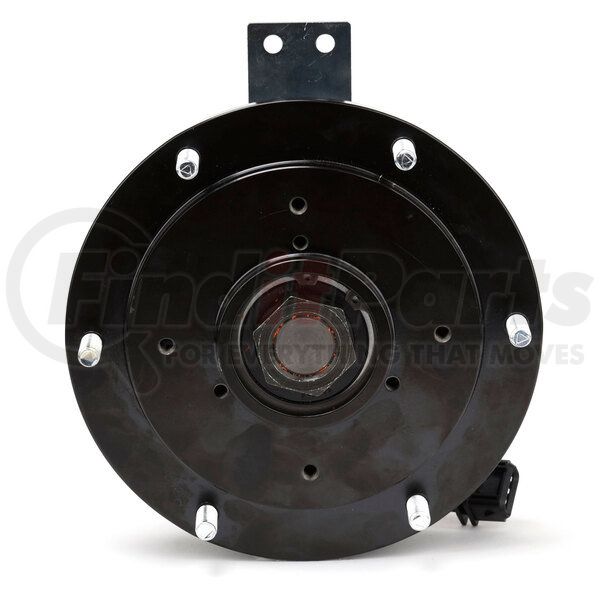

EC450 Fan Clutch
Application Summary
FREIGHTLINER, STERLING
Requires 996034 Anti-Rotation Strap/Bracket for service part replacement.
Product Attributes
| BASE TO FAN | 3.78 |
| BOLT CIRCLE | 6 |
| Fan Pilot | 5 |
| FAN PILOT DIAMETER | 5 |
| FLANG DIAMETER | 0.25 IN |
| Heavy Duty | FALSE |
| MOUNTING BOLT CIRCLE | 4.49 |
| MOUNTING FLANGE DIAMETER | 0.3 |
| MOUNTING FLANGE THICKNESS | 0.25 |
| MOUNTING PILOT DIAMETER | 2.21 |
| Number of Bolts | 6 |
| NUMBER OF FAN MTG BOLTS | 0.36 |
| NUMBER OF SLOTS/HOLES | 4 |
| Overall Length | 4.59 |
| Pilot Depth | 1.93 |
| SLOT WIDTH/THREAD | 0.36 |
| Volts | 12V |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8505200000 |
| Harmonized Tariff Code (HTS) | 8505200000 |
| NAFTA Preference Criterion Code | B |
| OEM's Part Number | 986049 |
| Original Supplier Part Number | 986049 |
| Warranty Distance | 300000 |
| Warranty Distance UOM | DH |
| Warranty Special | 2500 Hours |
| Warranty Special UOM | TX |
| Warranty Time | 36 |
| Warranty Time UOM | MO |
| VMRS Code | 042003131 |
