HALDEX 40020305 - Self-Setting Automatic Brake Adjuster (S-ABA) - Rear Brake, 6 in. Arm Length, 1.5 in. (Spline Diameter), 28 (Spline Quantity)
- Part Number
- 40020305
- Manufacturer
- HALDEX
- Description
-
Self-Setting Automatic Brake Adjuster (S-ABA) - Rear Brake, 6 in. Arm Length, 1.5 in. (Spline Diameter), 28 (Spline Quantity)
details
$11553
MSRP: $307.56
Save: $192.03
In stock
limited availability at this price!
HALDEX part description
California Proposition 65 Warning
WARNING: This product can expose you to chemical which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.govProduct Description
Auto Brake Adjuster Kit Truck/Trailer SABA Arm Length 6" Offset
Application Summary
Steer Axle Applications
Features & Benefits
- Covers more drum brake applications than competing adjusters in the market
- With innovative self-setting flexible design that offers a free selection of control arm position and error-free installation
- Made highly durable and with predictable performance
- Rolled wormshaft provides added resistance against fatigue
- Centralized clutch offers improved protection from moisture, dirt, and road salt
- Helps prevent uneven tire and brake wear for added savings on maintenance and operating expenses
- High alloy steel internal gears provide increased strength and wear resistance
- Heat-treated housing minimizes internal wear and extends service life
- Offers ease of installation and improved performance

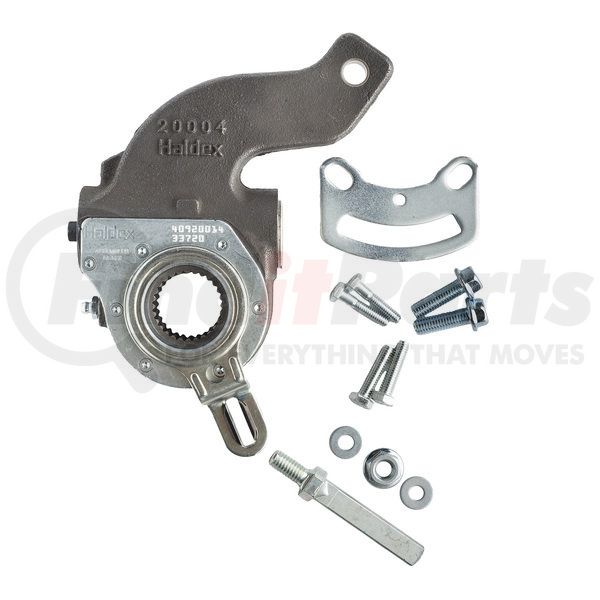

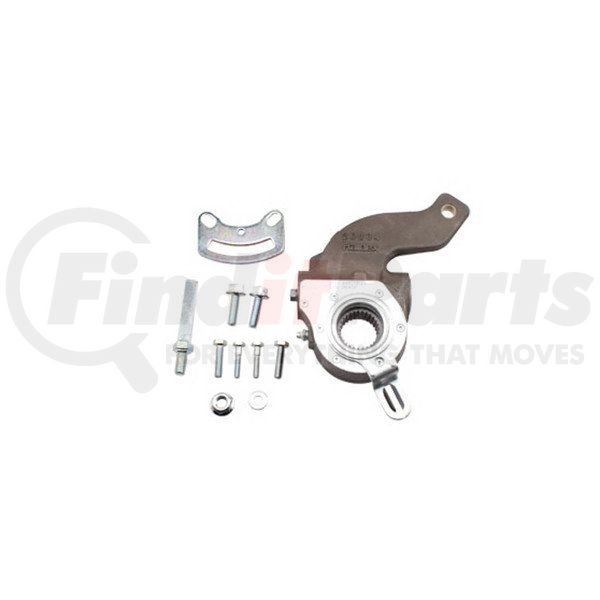

Haldex S-ABA Service Kit
Improve your ride’s stopping performance with the Haldex S-ABA service kit. This kit already includes the air brake automatic slack adjuster and other components you need to service your truck’s air braking system.
Product Attributes
| Anchor Bracket Style | Plate and Flat Stud |
| Arm Hole Diameter | 1/2 in. |
| Arm Length | 6 in. |
| Body Angle | 35 DD |
| Freight Class | 70 |
| Location | Rear |
| Pin Diameter | 1/2 in. |
| Recommended Bracket Number | 42710563 |
| Recommended Use | Steer Axle Applications |
| Spline Diameter | 1-1/2 in. |
| Spline Quantity | 28 |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8716905060 |
| Harmonized Tariff Code (HTS) | 8716905060 |
| Remanufactured Part | N |
| Warranty Distance | 100000 |
| Warranty Distance UOM | MI |
| Warranty Special | 72 MO, 1 MIL MI=Haldex ABA/SABA (409 Part Number Prefix)(1), 36 MO, Unlimited MI=Haldex ABA (NL/429 Part Number Prefix)(1). 24 MO, 200K MI=Haldex ABA(8). 24 MO, 100K MI=Haldex ABA/S-ABA(3) & Non-Haldex ABA. 12 MO, 100K MI=Haldex ABA(9). See L20221W.pdf |
| Warranty Time | 12 |
| Warranty Time UOM | MO |
| UPC | 00767653304885 |
| VMRS Code | 013002035 |
Part Interchanges
Haldex® is a Sweden-based manufacturer specializing in brake and air suspension systems for heavy duty vehicles. Its product line consists of brake components for wheel ends, including disc brakes, brake adjusters, and actuators. It also offers air control products such as compressed air dryers, valves, ABS, and EBS. All these Haldex products are designed with safety and efficient operation in mind, cutting down on potential hazards and maintenance costs in the long run. Today, Haldex runs manufacturing and R&D facilities in 19 countries across four continents. It is dedicated to producing high-quality brake and suspension parts for its customers all around the world as well as developing new technologies for the future.
HALDEX 40020305 Cross Reference
We have 5 alternatives for the 40020305 by HALDEX:
