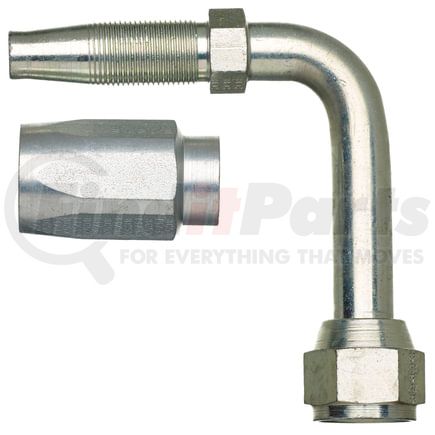

Gates G34180-1616 - Female JIC 37 Flare Swivel - 90 Bent Tube - Steel (C5CXH, C5C, C5D & C5M Hose)
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
GATES part description
Product Description
Female JIC 37 Flare Swivel - 90 Bent Tube - Steel (C5CXH, C5C, C5D & C5M Hose)
Features & Benefits
- Designed to perform with Gates C5 hose
- Zinc-plated carbon steel
- Meets DOT FMVSS 106-74 Type AII
Product Attributes
| Coupling Description | Field Attach C5CXH, C5C, C5D, C5M Female JIC 37 Flare Swivel - 90 Bent Tube - Steel |
| Industrial Description | 16C5-16RFJX90 |
| Thread Size | 1 5/16-12 |
| Inside Diameter | .875 IN |
| Hydraulic Hose Recommendation | Gates C5C, C5D, C5CHX, C5M |
| Nut Hex Size | 1.5 IN |
| Drop Length | 2.16 IN |
| Cut-Off Length | 2.76 IN |
| Length | 3.95 IN |
| Inside Diameter | 22.2 MM |
| Drop Length | 54.9 MM |
| Cut-Off Length | 70.1 MM |
| Length | 100.3 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| UPC | 00072053160901 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
