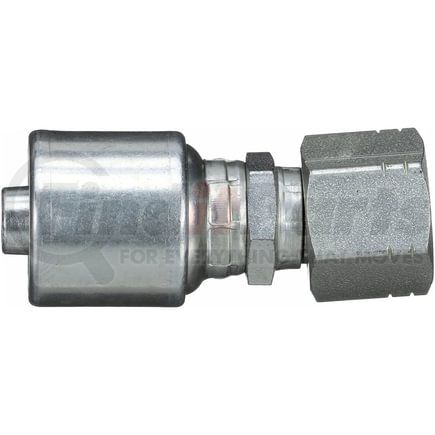

Gates G25910-1212X - Female Komatsu Style Japanese Metric Swivel (MegaCrimp)
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
GATES part description
Product Description
Female Komatsu Style Japanese Metric Swivel (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1,000,000 impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE Standard
Product Attributes
| Coupling Description | MegaCrimp Female Komatsu Style Japanese Metric Swivel |
| Industrial Description | 12G-12FKX XBULK |
| Thread Size | M30X1.5 |
| Inside Diameter | .75 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Stem Hex Size | 30 MM |
| Nut Hex Size | 36 MM |
| Cut-Off Length | 1.94 IN |
| Length | 3.82 IN |
| Seal Type | Mated Angle |
| Nose Seat Type | Standard |
| Mating Angle | 30 |
| Gender | Female |
| Bent Tube Angle | Straight |
| Swivel | Yes |
| SAE or Metric Threads | Metric |
| Inside Diameter | 19.1 MM |
| Cut-Off Length | 49.3 MM |
| Length | 97 MM |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| UPC | 00072053828672 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
Part Interchanges
