FEDERAL MOGUL-MOOG part description

Product Description

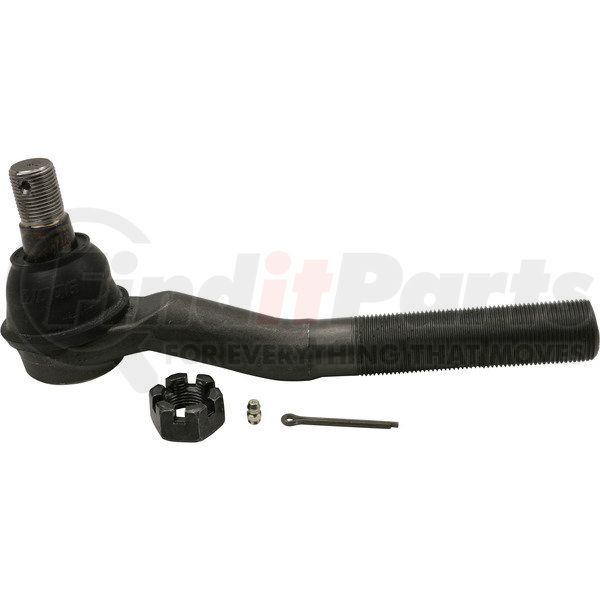

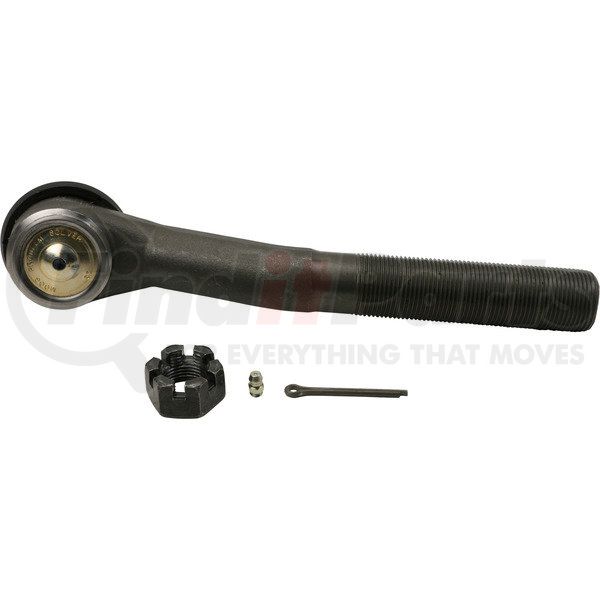

Steering Tie Rod End

Application Summary

2004-2017 Blue Bird Vision School Bus (Left); 2003-2009 Chevrolet C4500 Kodiak (Left Outer) (Drive: 4 X 2); 2003-2009 Chevrolet C5500 Kodiak (Left Outer) (Drive: 4 X 2); 2003-2009 Chevrolet C6500 Kodiak (Left Outer); 2003-2009 Chevrolet C7500 Kodiak (Left Outer); 2003-2009 GMC C4500 Topkick (Left Outer) (Drive: 4 X 2); 2003-2009 GMC C5500 Topkick (Left Outer) (Drive: 4 X 2); 2004-2009 GMC C6500 Topkick (Left Outer); 2003-2009 GMC C7500 Topkick (Left Outer); 2005-2010 Hino 145 (Left Outer); 2005-2010 Hino 165 (Left Outer); 2005-2010 Hino 185 (Left Outer)

Features & Benefits

  • RESTORES LIKE-NEW STEERING -- Patented pressed-in cover plate seals out debris and minimizes looseness, reducing bearing wear and promoting longer life
  • GREASEABLE SOCKET -- Reduces corrosion and wear by allowing new lubricant to flush contaminants
  • ABSORBS IMPACT -- Belleville preload washer helps keep the bearing package tight as bearings wear
  • PROBLEM SOLVER® GUSHER BEARING -- Metal-to-metal design provides strength and allows grease to flow through bearing surface for reduced friction and long life
  • STRONG AND DURABLE -- Ball studs are heat treated to match or exceed OE requirements to inhibit premature failure and improve fatigue strength
  • EASY TO INSTALL -- Precision tolerances for easy installation and steering alignment giving you a perfect fit right out of the box
  • COMPREHENSIVE COVERAGE -- Available for foreign and domestic nameplates
  • RIGOROUS TESTING -- Comprehensive testing throughout design and development processes by MOOG engineers for quality you can count on

Product Attributes

End 1 Gender Male
End 2 Gender Male
Grease Fitting Included Yes
Dust Boot Included Yes
Type Straight
Mounting Hardware Included Yes
End 2 Thread Diameter .875 IN
Greasable Yes
End 1 Thread Direction Clockwise
End 2 Thread Direction Clockwise
Length Stud Center to End 10.39 IN
End 2 Threads Per Inch 14
End 1 Threads Per Inch 12
End 1 Thread Diameter 1.250 IN
Part Description Steering Tie Rod End

Additional Information

Country of Origin (Primary) US
Canadian Harmonizing Tariff Code 8708949900
Harmonized Tariff Code (Schedule B) 8708948000
Harmonized Tariff Code (HTS) 8708947550
UPC 00080066437729
VMRS Code 015004019
UNSPSC 25174205

Part Interchanges

Fits Vehicles

  • Blue Bird Vision School Bus (2004-2017)
  • Hino 185 (2005-2010)
  • Hino 145 (2005-2010)
  • Hino 165 (2005-2010)
  • GMC C5500 Topkick (2003-2009)
  • GMC C6500 Topkick (2004-2009)
  • Chevrolet C7500 Kodiak (2003-2009)
  • Chevrolet C6500 Kodiak (2003-2009)
  • GMC C7500 Topkick (2003-2009)
  • Chevrolet C5500 Kodiak (2003-2009)
  • GMC C4500 Topkick (2003-2009)
  • Chevrolet C4500 Kodiak (2003-2009)
