*Representative image - actual part not displayed
Meritor 15159381003MTB - Meritor Genuine Hydraulic Brake Hub And Drum Assembly
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.

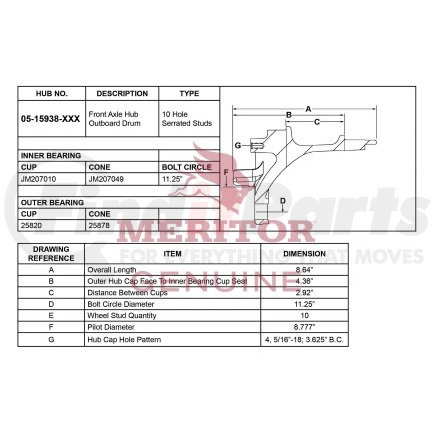

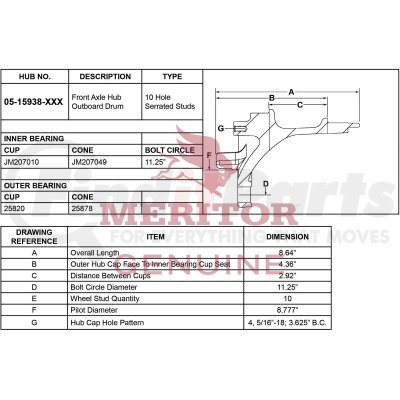

MERITOR part description
MERITOR GENUINE BRAKE HUB
| Marketing Group: | Steer |
| Axle Series: | FC-941 |
| Brake Type: | Drum |
| ABS Capable (on hub): | Y |
| ABS Ring Number: | 3237M1261 |
| Base Part Number: | 15938 |
| Wheel Stud Hole: | .904/.906 in. |
| Outer Cone: | 25877 |
| Hub Cap Bolt Thread: | 5/16-18 UNC-3B |
| ABS Pilot Diameter: | 4.424/4.421 in. |
| IBS to OBS: | 2.94/2.90 in. |
| Wheel Stud Bolt Circle Diameter: | 11.25 in. |
| Oil Seal: | A1205F2554 |
| IBS to Outer Surface: | 4.38/4.34 in. |
| Wheel Stud Pattern: | 10 |
| Hub Cap Bolt Circle Diameter: | 3.625 in. |
| Inner Cup: | JM207010 |
| Drum Bolt Pattern: | 10 |
| Inner Bearing Surface (IBS) to Mounting Face: | 5.8 in. |
| GAWR (lb): | 8000 |
| Outer Cup: | 25820 |
| Hub Type: | Steer |
| Hub Cap Pattern: | 4 |
| Drum Bolt Circle Diameter: | 11.25 in. |
| Drum Bolt Size: | .904/.906 in. |
| Inner Cone: | JM207049A |
| Drum Pilot Diameter: | 8.778/8.775 in. |
| Drum Number: | 85-123465-002 |
| Flange Outer Diameter: | 13.00 in. |
| Wheel Pilot Diameter: | 8.653/8.646 in. |
| Wheel Stud: | 09-002002 |
Meritor Brake Hub
The Meritor brake hub delivers higher payload capacity and lower maintenance costs for heavy duty truck and trailer applications. It is compatible with most popular wheel-end configurations.
Features & Benefits
- Meets or exceeds OE specifications and complies with federal stopping distance requirements
- Advanced machining technology reduces welded-on weight and improves balance
- Built with state-of-the-art materials and manufacturing processes for improved reliability and wear resistance
- Lighter than typical brake hubs for tractor/trailer combinations without sacrificing structural integrity
Meritor®, whose roots could be traced back to 1909, is backed by over 100 years of industry experience plus a massive portfolio of products for various industries. In 1998, it made several acquisitions, including Volvo Trucks' heavy vehicle manufacturing operation in Sweden, Euclid Industries, and Lucas Varity's Heavy Vehicle Braking Systems division. Such investments solidify Meritor's position as the leading global supplier of brakes, axles, drivelines, transmissions, suspensions, tire inflations systems, and a whole lot of parts, hardware, and accessories for the automotive, truck, trailer, rail cars, bus and coach, and many other applications. Its "Run with the Bull" global brand identity further strengthens its commitment to provide the industry with durable products, unparalleled service and support, and continuous innovation.
