DANA part description

FN *
A Flange or Swing Dia 5.75
B Bolt Circle Dia 4.75
Bolt Hole Dia NOM .500-D
Number of Bolt Holes 4
C Pilot Dia Mmale Ffemale 2.953-F
G Flange Face to CL 1.75
Figure 1

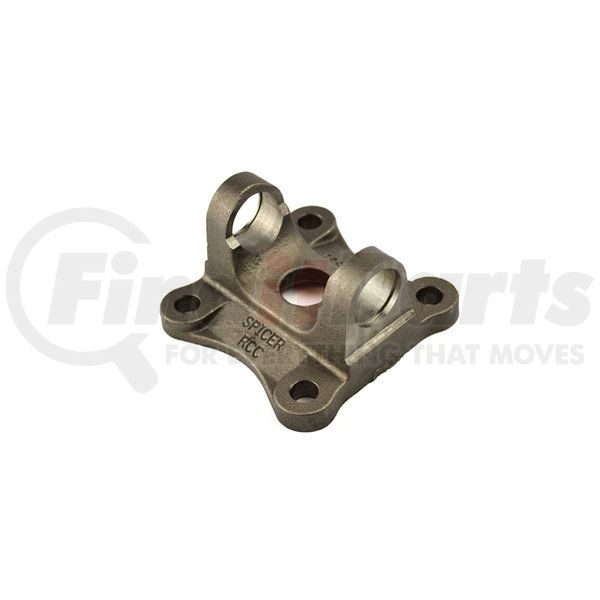

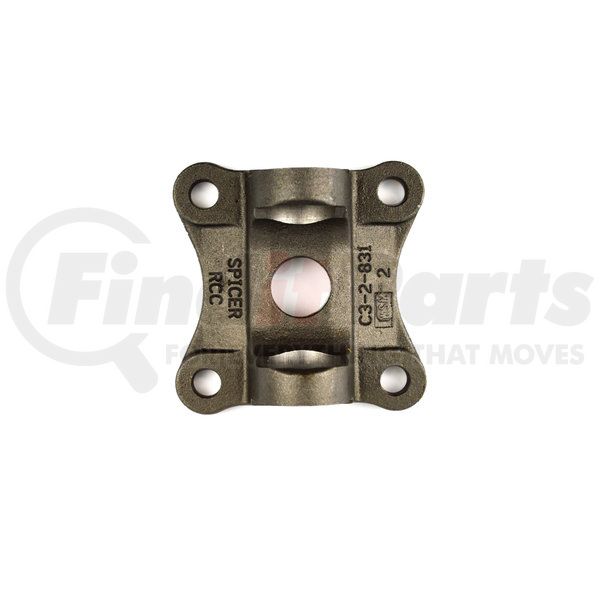

Product Description

Features & Benefits

  • Genuine OE quality. Tested and proven.
  • Built to meet OE standards set by Dana
  • Tested and validated to rigorous OE specifications
  • Latest production upgrades ensure genuine Spicer parts are as good or better than the OE parts they replace

Product Attributes

Series 1350
Material Steel
Number of Bolt Holes 4
Design Square
Bolt Circle Dia. In. (B) 4.750 IN
Bolt Hole Dia. In (B) .510 - DRILLED IN
Flange Face To C/L In. (G) 1.750 IN
Flange Or Swing Dia. In. (A) 5.750 IN
Outside Yoke Dimension In.(E) 3.875 IN
Pilot Dia. M=male F=female (c) 2.953 - FEMALE
Yoke Bearing Dimension In. (D) 1.188 IN

Additional Information

Country of Origin (Primary) MX
Harmonized Tariff Code (Schedule B) 8708990000
Harmonized Tariff Code (HTS) 8708990000
UPC 00023913230777
VMRS Code 024002016

Part Interchanges

Fits Vehicles

  • Ford F-350 Super Duty (2002-2003)
  • Ford F-250 Super Duty (2002-2004)
  • Ford Excursion (2002-2005)
