BUYERS PRODUCTS part description

Product Description

Hydraulic Gear Pump with 7/8-13 Spline Shaft and 1-3/4in. Diameter Gear

Features & Benefits

  • Proudly made in the USA
  • A highly durable bi-rotational pump that can be mounted in an SAE B mount
  • Made tough using cast iron with teflon-coated bronze thrust plates for maximum strength and corrosion resistance
  • Offers structural integrity, which is supported by a shaft bearing and four internal dowels
  • Capable of high pressures—taking up to 2500 or 3000 PSI

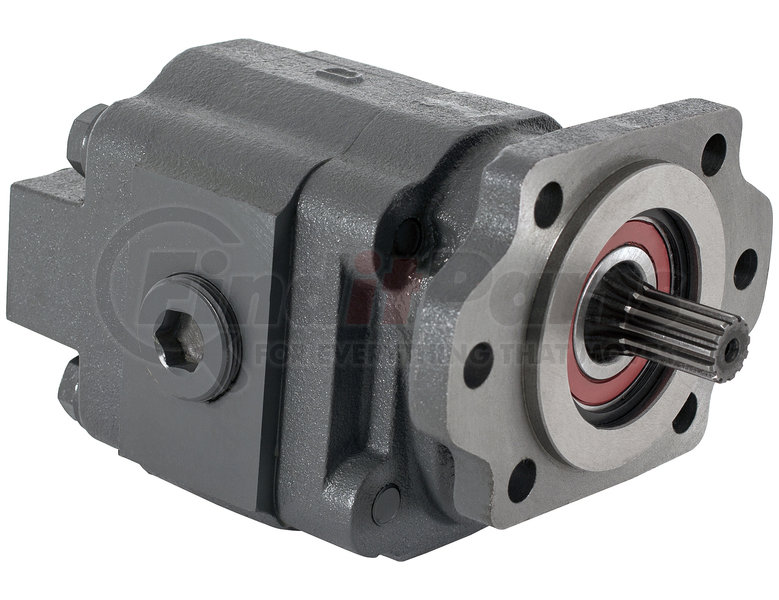

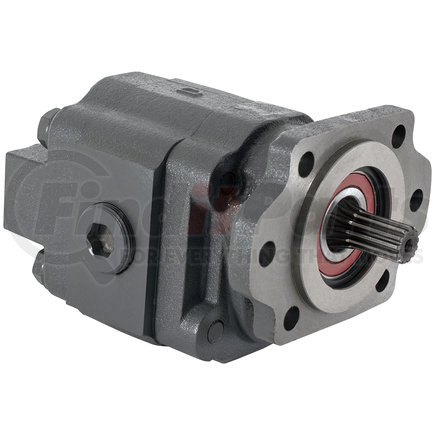

Buyers Products H21 Series Hydraulic Gear Pump with Shaft

The Buyers Products H21 Series hydraulic gear pump with shaft is designed primarily for converting mechanical power into hydraulic energy. With this crucial function, it is manufactured following the strictest quality standards for superior performance and reliability.

Product Attributes

Direct Or Remote Mount Direct Mount
Flow At 1000 Rpm 18.0 GPM G2
Flow At 1200 Rpm 21.6 GPM G2
Flow At 1500 Rpm 27.00 GPM G2
Flow At 1800 Rpm 32.40 GPM G2
Flow At 2100 Rpm 37.80 GPM G2
Flow At 600 Rpm 10.80 GPM G2
Flow At 900 Rpm 16.20 GPM G2
Flow Rate 3 in.³/r
Flow Rate 18 GPM G2
Gear Size 1.75 IN
Gear Width 1.750 IN
Inlet Port Diameter 1 1/4 NPT
Input Mount Type Integral Bracket
Material Cast Iron
Maximum Pressure 2500 PSI PS
Maximum Rpm 2000 RPM R3
Mounting Type SAE B 2/4 Bolt
Outlet Port Diameter 1 1/4 NPT
Pilot Diameter 4.000 in
Port Type Rear/Side
Rear Port Size 1 1/4 NPT IN
Rotation Bi-Directional
Shaft Diameter 7/8-13 IN
Buyers Products® is a global leader in manufacturing and distributing truck and trailer hardware, toolboxes, hydraulics, cables and controls, electrical and lighting components, pneumatics, and truck equipment and accessories. All these products are engineered, produced, and assembled in the USA, where the company was first founded in 1946. From a modest distributor of truck and trailer parts, Buyers Products has grown into one of the largest truck parts manufacturers and distributors in the heavy duty truck and equipment market today. Its years of expertise in the industry have allowed it to refine its manufacturing capabilities. From forging, stamping, and laser cutting to robotic welding and powder coating, Buyers Products integrates its dedication to quality in manufacturing products that provide value to its customers.
