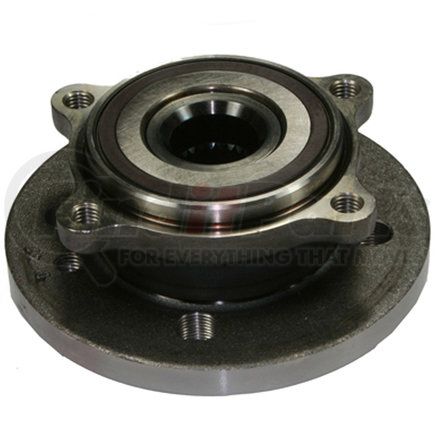

Centric 400.34001 - Centric Premium Hub and Bearing Assembly; With ABS
$19449
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description
Centric Premium Hub and Bearing Assembly; With ABS
Features & Benefits
- 100% O.E. Quality Components. Premium seals protect internal components. Exacting Fit and Function. Complete cataloging; featuring the latest applications and covering from 1940 to 2017
Product Attributes
| Bolt Circle Diameter [cntrc] Mm | 100.000 |
| Product Grade [cntrc] | Premium |
| Mouting Thread Size [cntrc] Mm | 10.000 |
| Bolt Circle Diameter [cntrc] In | 3.937 |
| Mounting Thread Pitch [cntrc] Mm | 1.500 |
| Inner Mount Pilot [cntrc] Mm | 80.900 |
| Off-set [cntrc] Mm | 1.740 |
| Thread Pitch To Wheel Mounting [cntrc] Mm | 1.250 |
| Mounting Hole Qty [cntrc] | 4 |
| Notes [cntrc] | Inner Magnetic ABS Encoder Seal; 1 Rotor retaing hole M10-1.5 |
| Inner Mount Pilot [cntrc] In | 3.185 |
| Spline Bore Dia [cntrc] Mm | 27.000 |
| Off-set [cntrc] In | 44.200 |
| Spline Quantity | 26 |
| Wheel Stud Size | 14.000 MM |
| Wheel Pilot Diameter | 56.110 MM |
| Wheel Pilot Diameter | 2.209 IN |
| Brake Pilot Diameter | 64.060 MM |
| Brake Pilot Diameter | 2.522 IN |
| Wheel Stud Quantity | 4 |
| Wheel Studs Included | Yes |
| Flange Diameter | 5.400 IN |
| Flange Diameter | 137.160 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8482105016 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | JP |
| UPC | 805890633150 |
Part Interchanges
Fits Vehicles
- Mini Cooper (2007-2016)
