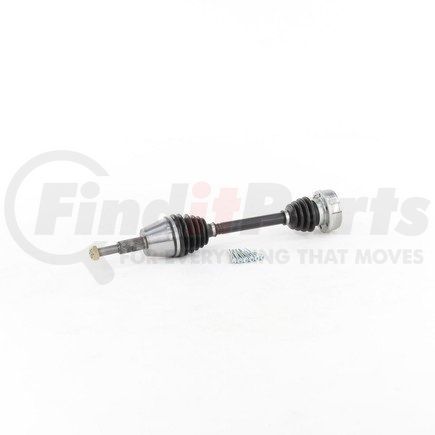

TrakMotive FD-8035 - CV Axle Shaft
- Part Number
- FD-8035
- Manufacturer
- TRAKMOTIVE
- Description
-
CV Axle Shaft
details
$4849
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
TRAKMOTIVE part description
Product Description
CV Axle Shaft
Product Attributes
| ABS Ring Tooth Count | 0 |
| ABS Ring Type | N/A |
| Abs Tone Ring Included | No |
| Axle Bolt Hex Size (mm) | N/A |
| Axle Bolt Length (mm) | N/A |
| Axle Bolt Thread Size | N/A |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .56 |
| Axle Nut Height (mm) | 14 |
| Axle Nut Hex Size (in) | 1.67 |
| Axle Nut Hex Size (mm) | 30 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.33 |
| Axle Nut Length (mm) | 35 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M20x1.5 |
| Boot Material | Neoprene |
| Inboard Bolt Head Size (in) | .25 |
| Inboard Bolt Head Size (mm) | 6 |
| Inboard Bolt Head Type | Allen |
| Inboard Bolt Length (in) | 2.22 |
| Inboard Bolt Length (mm) | 57 |
| Inboard Bolt Thread Size | M8x1.25 |
| Inboard Joint Type | Bolt-On |
| Inboard Shaft Connection Style | Bolt-On |
| New Or Remanufactured | New |
| Number of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 6 |
| Number Of Inboard Shaft Bolts | 6 |
| Number Of Inboard Splines | 0 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 26 |
| Outboard Bolt Head Size (in) | N/A |
| Outboard Bolt Head Size (mm) | N/A |
| Outboard Bolt Head Type | N/A |
| Outboard Bolt Length (in) | N/A |
| Outboard Bolt Length (mm) | N/A |
| Outboard Joint Bolt Thread Size | N/A |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 22.4 |
| Overall Compressed Length (mm) | 569 |
| Axle Nut Socket Size | 30 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Neoprene |
| Outboard Joint Boot Material | Neoprene |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708508500 |
| UPC | 00844084020352 |
Part Interchanges
- ARC 80-2341
- EMPI 80-2901
- Car Components Technologies (CCT) 9328
- Mevotech CV4071
- Carquest 410993
- Carquest 800993
- USA Industries 703088
- USA Industries AX-3088
- USA Industries AX-8800
- American Remanufactured 40-15071
- Drive Tech America FD-5071
- Fenwick CV3091
- CARDONE Reman 60-2099
- CARDONE Reman 66-2099
- ODM FD-8-8530
- TrakMotive FD-8035
- 410993
- NCV11102
- 71975
- 169035
Fits Vehicles
- Ford Aerostar (1992-1997)
