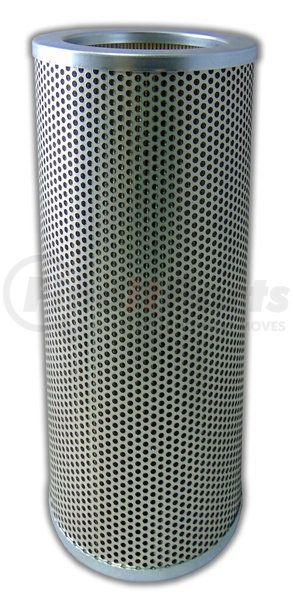

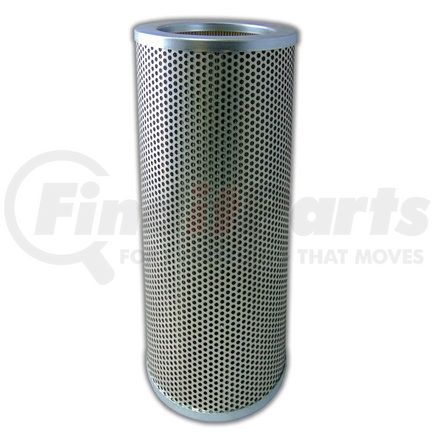

Name: Main Filter MF0820785 Aftermarket Replacement Hydraulic Filter with 10 Micron Rating, Cellulose, Inside-Out Flow
SKU: mf0820785
Price: 51.49 USD
Availability: InStock

MAIN FILTER part description

Technical Specifications

Outside Diameter Top	4.961
Inide Diameter Top	3.622
Outside Diameter Bottom	4.961
Inside Diameter Bottom	0.409
Collapse Pressure	145
Operating Temp Min F	-13
Operating Temp Max F	248
Flow Direction	Inside-Out
Gasket Material	Buna
Fluid Type	HH / HL / HM / HV
Beta Ratio 1	2/10
Micron 1	10

Features & Benefits

Interchange/replacement for OEM VALMET p/n M1009009H
Compatible with OEM filter in fit, form and function
All of our elements are manufactured following ISO specifications.
Buy hydraulic filters direct from the manufacturer
Images may be general representations of products and may vary from image
Main Filter MF0820785 replaces OEM M1009009H by VALMET and is compatible in fit, form and function.
All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
Images may be a general representations of products
All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
Buy hydraulic filters direct from the manufacturer

Features & Benefits

Interchange/replacement for OEM VALMET p/n M1009009H
Compatible with OEM filter in fit, form and function
All of our elements are manufactured following ISO specifications.
Buy hydraulic filters direct from the manufacturer
Built using Quality Components with strict quality control.
Main Filter MF0820785 replaces OEM M1009009H by VALMET and is compatible in fit, form and function.
All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
Images may be a general representations of products

Product Attributes

Height (in.)	11.41
Handle	No
Bypass	No
Wrap	Yes
Micron Rating	10
Outside Diameter (Top)	4.96 in.
Inside Diameter (Top)	3.62 in.
Outside Diameter (Bottom)	4.96 in.
Product Media	Cellulose
Inside Diameter (Bottom)	0.41 in.
Collapse Pressure	145
Minimum Operating Temperature	-13 Deg Fahrenheit
Gasket Material	Buna
Fluid Type	HH / HL / HM / HV
Beta Ratio 1	2/10
Maximum Operating Temperature	248 Deg Fahrenheit
Flow Direction	Inside-Out

Part Interchanges

Valmet M1009009H

MAIN FILTER MF0820785 Cross Reference

We have 1 alternatives for the MF0820785 by MAIN FILTER:

VALMET M1009009H
