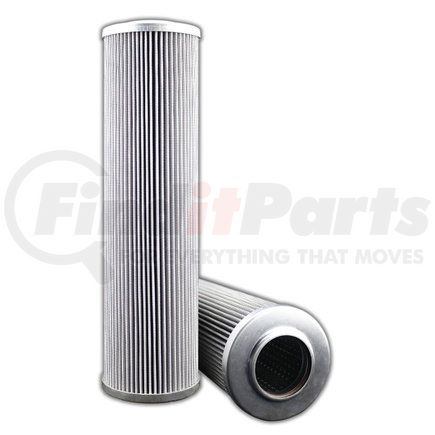

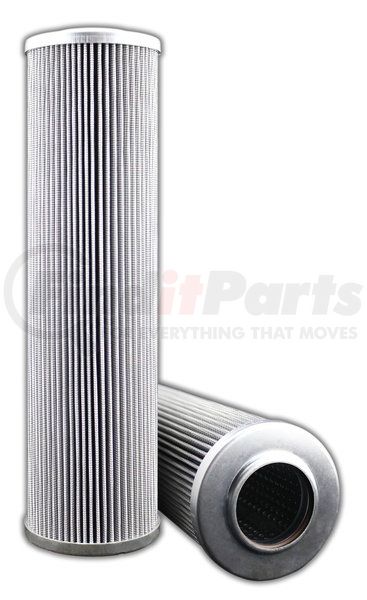

Name: Main Filter MF0320501 Aftermarket Replacement Hydraulic Filter with 20 Micron Rating, Glass, Outside-In Flow
SKU: mf0320501
Price: 127.49 USD
Availability: InStock

MAIN FILTER part description

Technical Specifications

Outside Diameter Top	3.563
Inide Diameter Top	1.898
Outside Diameter Bottom	3.563
Collapse Pressure	435
Operating Temp Min F	-13
Operating Temp Max F	248
Capacity gr	92.352565
Filter Area sq in	1028
Flow Direction	Outside-In
Gasket Material	Viton
Fluid Type	HH / HL / HM / HV
Beta Ratio 1	200/20.7
Beta Ratio 2	1000/26.6
Micron 1	25

Features & Benefits

Interchange/replacement for OEM HY-PRO p/n HP33DNL1425MV
Compatible with OEM filter in fit, form and function
All of our elements are manufactured following ISO specifications.
Buy hydraulic filters direct from the manufacturer
Built using Quality Components with strict quality control.
Main Filter MF0320501 replaces OEM HP33DNL1425MV by HY-PRO and is compatible in fit, form and function.
All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
Images may be a general representations of products
Buy hydraulic filters direct from the manufacturer
All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
Images may be a general representations of products
Buy hydraulic filters direct from the manufacturer

Features & Benefits

Interchange/replacement for OEM HY-PRO p/n HP33DNL1425MV
Compatible with OEM filter in fit, form and function
All of our elements are manufactured following ISO specifications.
Buy hydraulic filters direct from the manufacturer
Built using Quality Components with strict quality control.
Main Filter MF0320501 replaces OEM HP33DNL1425MV by HY-PRO and is compatible in fit, form and function.
All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
Images may be a general representations of products

Product Attributes

Product Media	Glass
Bypass	No
Handle	No
Maximum Operating Temperature	248 Deg Fahrenheit
Collapse Pressure	435
Height (in.)	12.91
Dust Holding Capacity	92.35 grams
Micron Rating	20
Flow Direction	Outside-In
Fluid Type	HH / HL / HM / HV
Wrap	No
Minimum Operating Temperature	-13 Deg Fahrenheit
Inside Diameter (Top)	1.9 in.
Filter Area (sq. in.)	1028
Gasket Material	Viton
Outside Diameter (Bottom)	3.56 in.
Outside Diameter (Top)	3.56 in.
Beta Ratio 1	200/20.7
Beta Ratio 2	1000/26.6

Part Interchanges

Hy-pro HP33DNL1425MV

MAIN FILTER MF0320501 Cross Reference

We have 1 alternatives for the MF0320501 by MAIN FILTER:

HY-PRO HP33DNL1425MV
