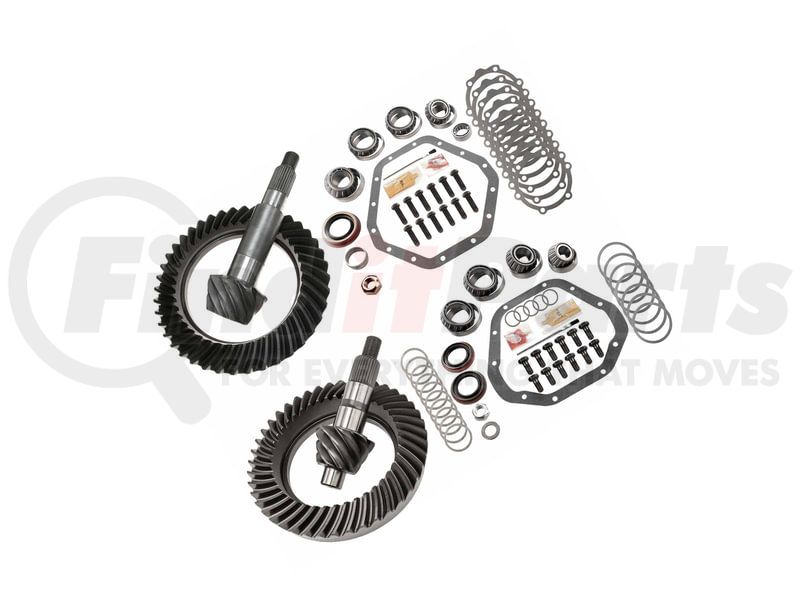

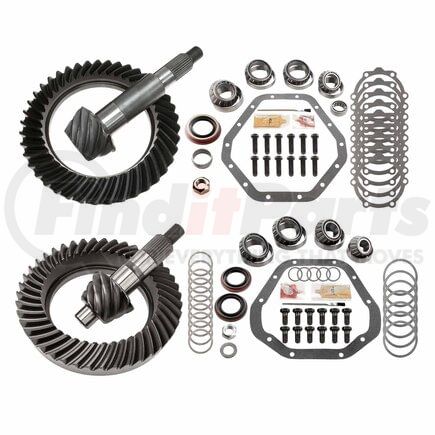

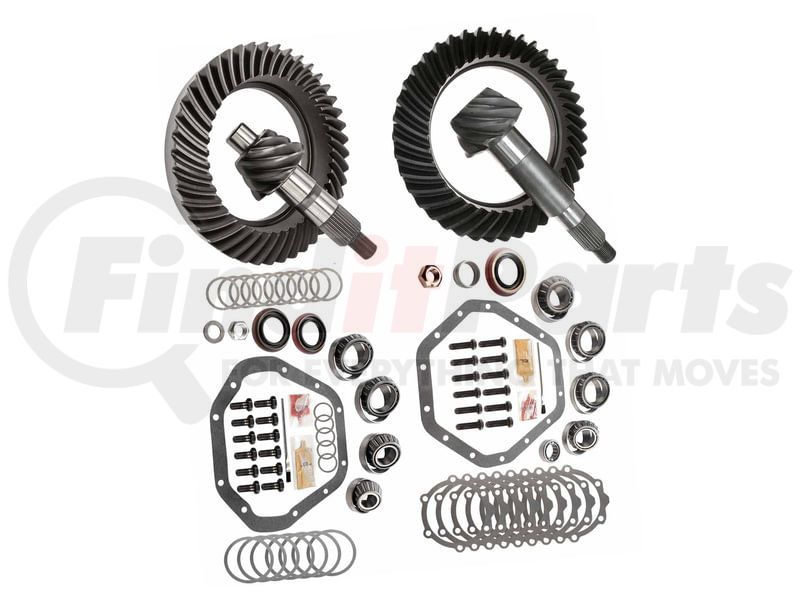

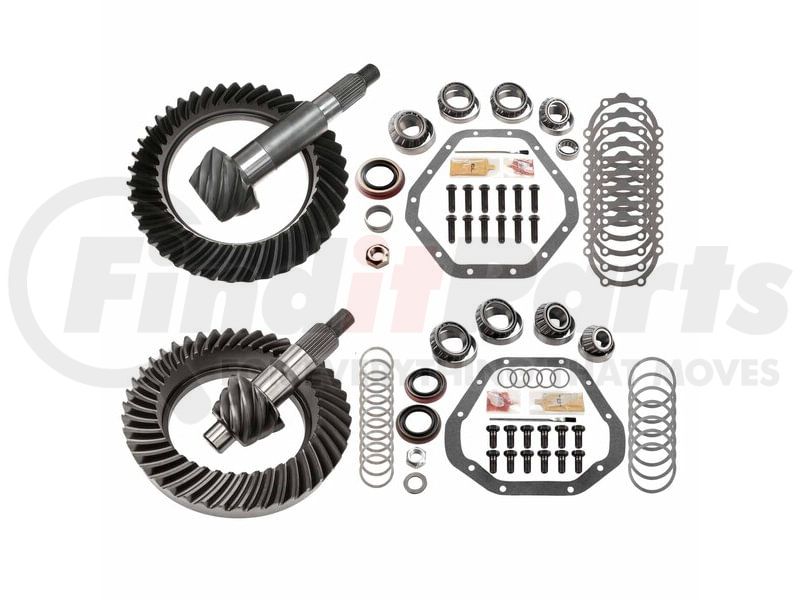

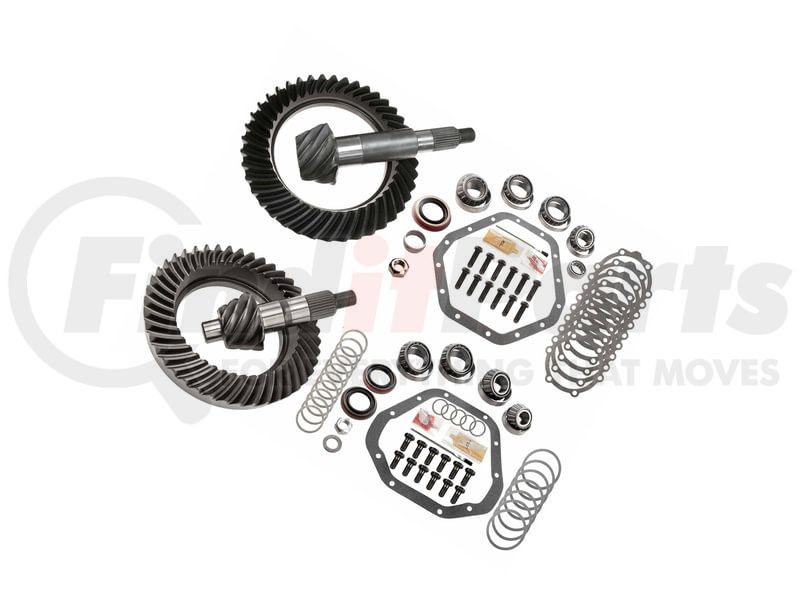

Motive Gear MGK-233 - Motive Gear - Differential Complete Ring and Pinion Kit
- Part Number
- MGK-233
- Manufacturer
- MOTIVE GEAR
- Description
-
Motive Gear - Differential Complete Ring and Pinion Kit
details
$1,52699
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
MOTIVE GEAR part description
Product Description
Differential Ring and Pinon Front and Rear Complete Kit
K30 1979-87 D60F/GM10.5R 5.38X
Product Attributes
| Differential Carrier Break | 4.10 Ratio and Lower Rear (GM10.5-538X) |
| Ring Gear Material | 8620 Steel |
| Pinion Shaft Diameter | 1.75 Rear (GM10.5-538X) IN |
| Ring Gear Rotation | Standard |
| Pinion Gear Tooth Quantity | 8 |
| Gear Ratio | 5.38 |
| Ring Gear Outside Diameter | 10.5 Rear (GM10.5-538X) IN |
| Pinion Spline Count | 30 Rear (GM10.5-538X) |
| Differential Case Design Type | GM 10.5 |
| Cover Bolt Quantity | 14 Rear (GM10.5-538X) |
| Ring Gear Tooth Quantity | 43 |
| Ring Gear Bolt Quantity | 12 |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708990011 |
| NAFTA Preference Criterion Code | B |
| Warranty Special | 1 Year or 50,000 Miles |
| Warranty Special UOM | TX |
| UPC | 00698231099285 |
Part Interchanges
MOTIVE GEAR MGK-233 Cross Reference
We have 2 alternatives for the MGK-233 by MOTIVE GEAR:
Fits Vehicles
- GMC V3500 (1987)
- GMC K3500 (1979-1986)
- GMC K35 (1977-1978)
- Chevrolet V30 (1987)
- Chevrolet K30 (1977-1986)
