RAYBESTOS part description

Product Description

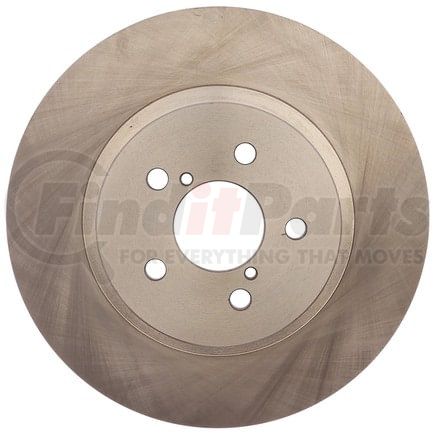

Raybestos R-Line Brake Rotor

Application Summary

2023-2018 Subaru Crosstrek Front, 2023-2017 Subaru Impreza Front

Product Attributes

ABS Tone Ring Included No
Center Hole Diameter 2.283 IN
Center Hole Diameter 58 MM
9565 Conventional
9540 No
Discard Thickness 0.866 IN
Discard Thickness 22 MM
Harmonize Code 8708.30.5030
Material Cast Iron
Mounting Bolt Hole Circle Diameter 3.93 IN
Mounting Bolt Hole Circle Diameter 99.8 MM
Mounting Bolt Hole Diameter 0.511 IN
Mounting Bolt Hole Diameter 13 MM
Nominal Thickness 0.944 IN
Nominal Thickness 24 MM
Outside Diameter 11.555 IN
Outside Diameter 293.5 MM
Overall Height 1.898 IN
Overall Height 48.2 MM
Salability Restrictions No
Stud/Lug Hole Quantity 5
UNSPSC Code 25171715

Additional Information

Country of Origin (Primary) CN
UPC 00887213318722

Part Interchanges

RAYBESTOS 982487R Cross Reference

We have 7 alternatives for the 982487R by RAYBESTOS:

Fits Vehicles

  • Subaru Crosstrek (2018-2022)
  • Subaru Impreza (2017-2022)
