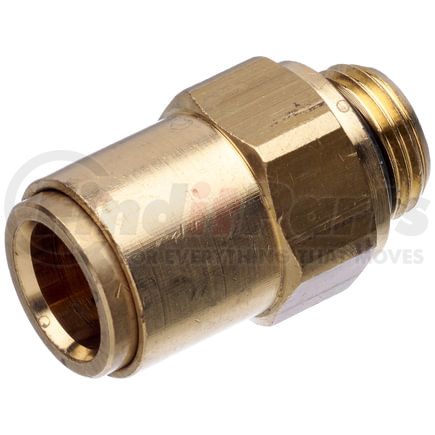

Gates G31600-0616 - Air Brake to Male Metric (SureLok)
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
GATES part description
Product Description
Air Brake to Male Metric (SureLok)
Features & Benefits
- Internal and external machined thread for connection to ports. Machining retains collet, tube support and O-Ring
- Tube support prevents tube collapse during severe loading conditions
- Collet teeth grip the tube, holding it firmly in the fitting
- Internal O-Ring provides a seal and necessary interference between tube and fitting body
Product Attributes
| Coupling Description | SureLok Air Brake to Male Metric |
| Industrial Description | 6AB-16MM |
| Thread Size | M16 x 1.5 |
| Outside Diameter | .375 IN |
| Stem Hex Size | 22 MM |
| Length | 1.37 IN |
| Maximum Working Pressure | 150 PS |
| Temperature Rating | -40 Deg. F to +200 Deg. F (-40 Deg. C to +93 Deg. C) |
| Material | 360 Brass |
| Seal Material | Ethylene Propylene |
| Length | 35 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 7412200015 |
| UPC | 00770075721284 |
| VMRS Code | 059032033 |
| UNSPSC | 27121700 |
Part Interchanges
