RAYBESTOS part description

Product Description

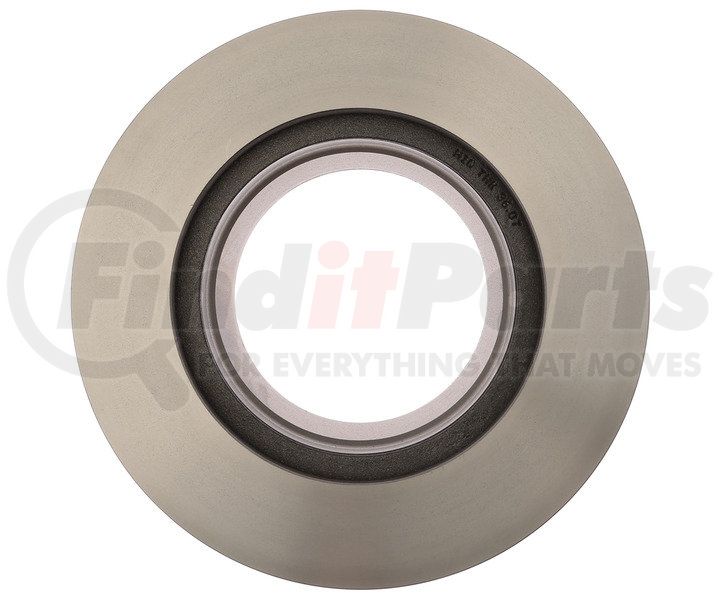

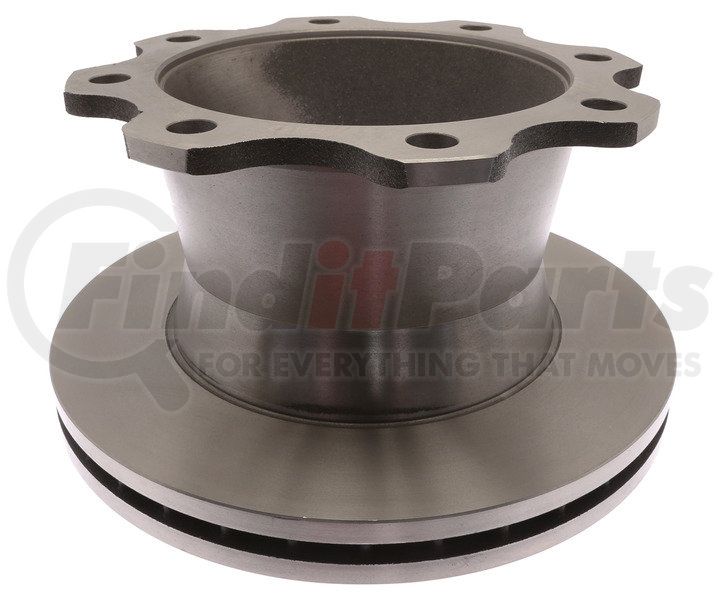

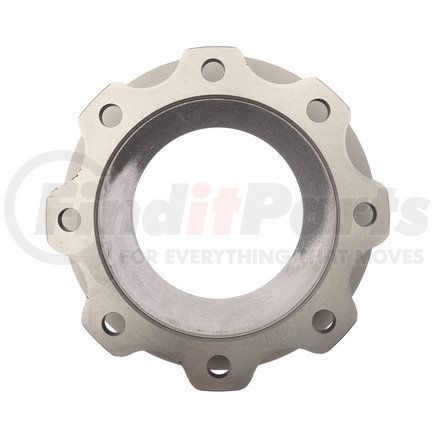

Raybestos R-Line Brake Rotor

Application Summary

2009-2005 GMC C5500 Topkick Front, 2009-2003 Chevrolet C4500 Kodiak Front, 2009-2005 Chevrolet C5500 Kodiak Front, 2009-2003 GMC C4500 Topkick Front

Product Attributes

ABS Tone Ring Included No
Center Hole Diameter 8.852 IN
Center Hole Diameter 224.85 MM
9565 Conventional
Discard Thickness 1.42 IN
Discard Thickness 36.05 MM
Harmonize Code 8708.30.5030
Inside Diameter 9.568 IN
Inside Diameter 243.05 MM
Mounting Bolt Hole Circle Diameter 10.827 IN
Mounting Bolt Hole Circle Diameter 275 MM
Mounting Bolt Hole Diameter 0.842 IN
Mounting Bolt Hole Diameter 21.4 MM
Mounting Bolt Hole Quantity 8
Nominal Thickness 1.534 IN
Nominal Thickness 38.95 MM
Outside Diameter 14.992 IN
Outside Diameter 380.8 MM
Overall Height 7.643 IN
Overall Height 194.15 MM
Salability Restrictions No
Solid Or Vented Type Rotor Vented
Stud/Lug Hole Quantity 8
Surface Type Smooth
UNSPSC Code 25171715

Additional Information

Country of Origin (Primary) CN
UPC 00887213286335

Part Interchanges

Fits Vehicles

  • GMC C5500 Topkick (2005-2009)
  • Chevrolet C5500 Kodiak (2005-2009)
  • GMC C4500 Topkick (2003-2009)
  • Chevrolet C4500 Kodiak (2003-2009)
