How to Fix a Power Inverter on a 2012–2019 Freightliner Cascadia

If your power inverter is not working on a 2019 Freightliner Cascadia, the problem may not be the inverter itself, it could be a blown MIDI fuse in a hidden factory location.

In this step by step guide, we’ll show you exactly where to find the inverter fuse, how to inspect it, and how to replace it correctly so you can get back on the road fast.

Whether you're an owner operator, fleet manager, or diesel tech, this guide will help you diagnose and fix a Freightliner inverter issue quickly.

Common Symptoms of a Bad Power Inverter Fuse

If your Freightliner Cascadia inverter stopped working, you may notice:

No 110V/120V power inside the cab
Appliances won’t turn on (microwave, fridge, TV, CPAP)
Inverter shows no lights or display
You checked the inverter’s internal fuse, but it’s fine

If this sounds familiar, your factory-installed inverter fuse is likely blown.

Where Is the Power Inverter Fuse on a 2019 Freightliner Cascadia?

Before troubleshooting, the first step is to determine how your inverter was installed, because this will affect where key components like the fuse are located. If your inverter is an aftermarket or shop-installed unit, meaning it was added by a previous owner, a fleet maintenance shop, or as a dealership add-on rather than from the factory, the fuse is usually not found in the main truck fuse panel.

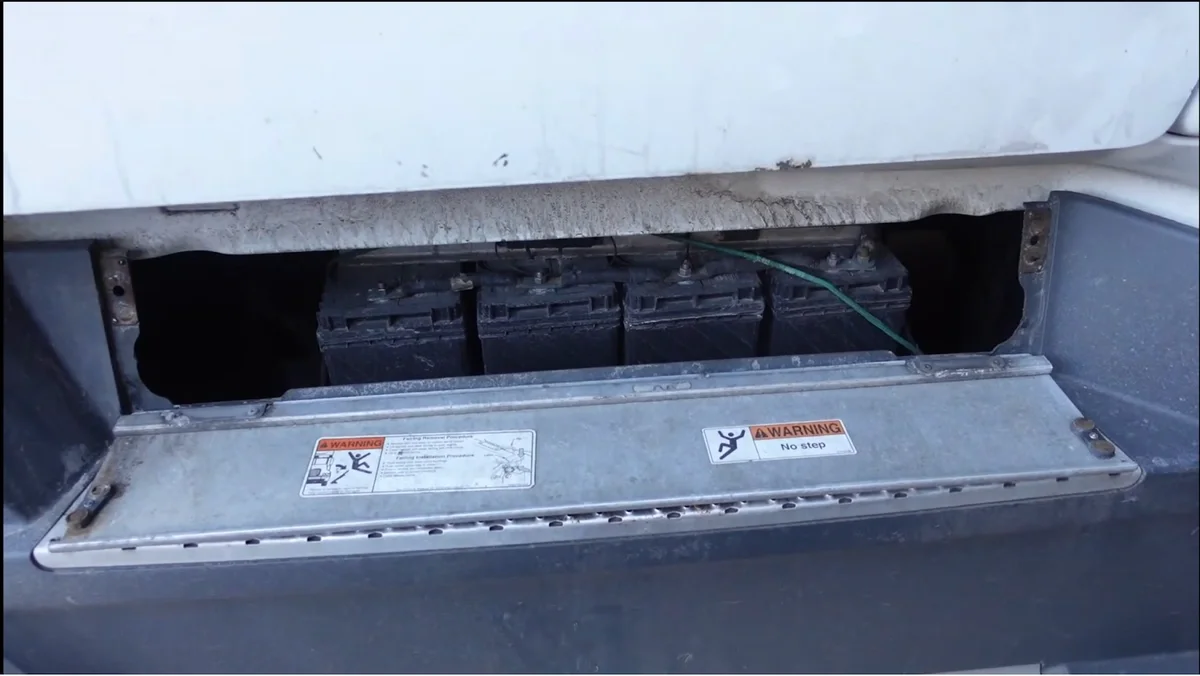

Instead, it is most commonly located inside the battery box or installed inline on the power cable that runs between the batteries and the inverter. Checking these areas first can save you time and help you quickly narrow down the issue before moving on to more complex electrical diagnostics.

Factory-Installed Freightliner Inverter

If your 2012,2013,2014,2015,2016,2017,2018,2019 Freightliner Cascadia came with a factory inverter, the fuse is located in a completely different place, and many drivers overlook it.

For factory-installed systems, the inverter fuse is located:

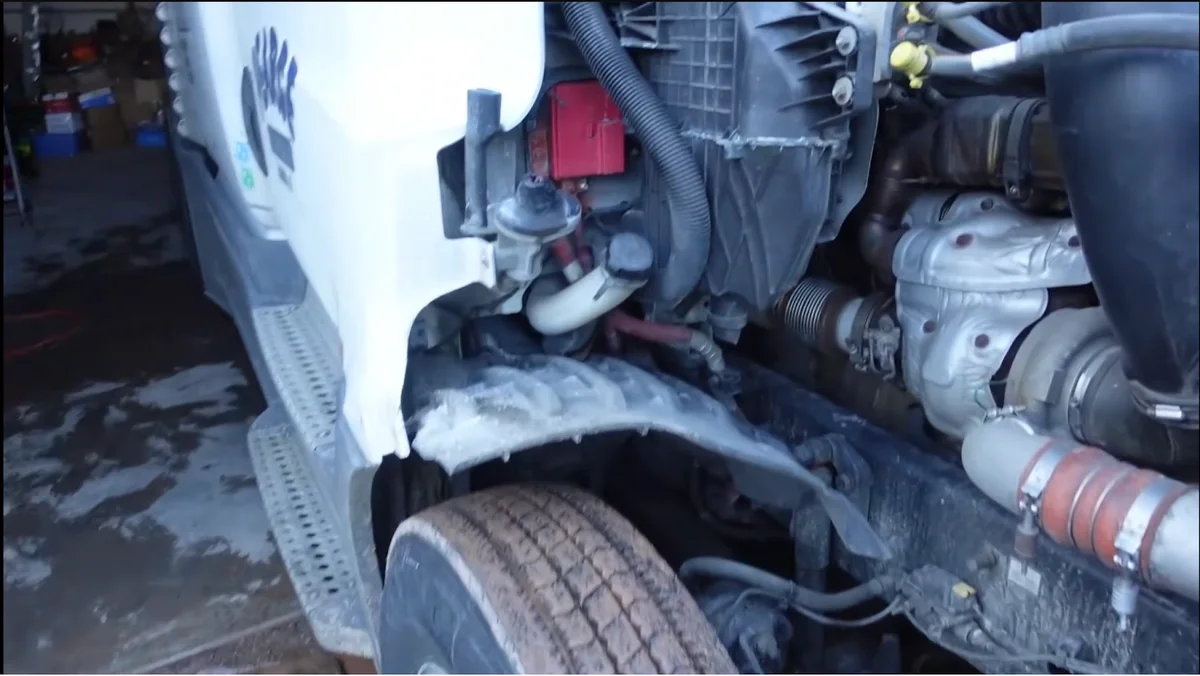

📍 Passenger side firewall
📍 Inside a red fuse box with a twist knob

How to Access It:

Go to the passenger side of the truck
Locate the red fuse box mounted on the firewall
Turn the knob counterclockwise
Remove the cover

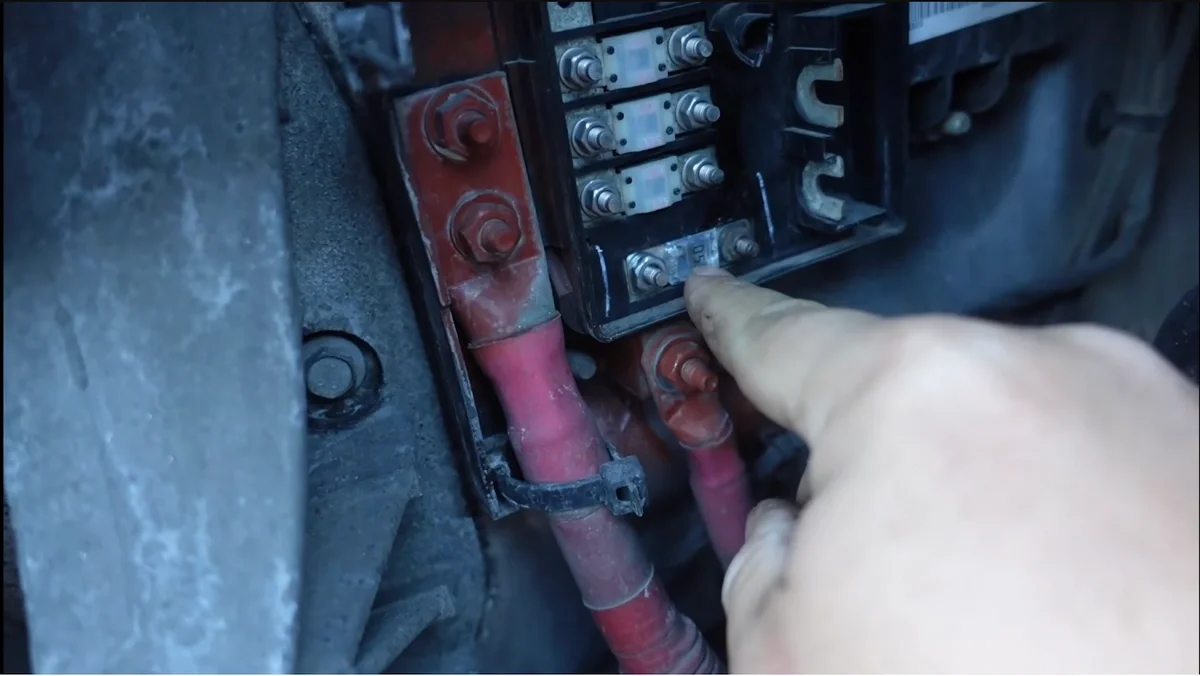

Look at the bottom fuse position

This fuse is typically:

150 amp or 200 amp
A MIDI fuse (also called MEGA/MIDI style fuse depending on manufacturer)

Check the diagram inside the fuse box cover to confirm correct amperage.

What Is a MIDI Fuse?

A MIDI fuse is a high-amperage bolt-down fuse commonly used in:

Power inverter systems
Auxiliary power systems
Heavy-duty truck electrical circuits

They are secured with 8mm nuts, not blade-style connectors.

If your inverter suddenly stopped working, a blown 150A or 200A MIDI fuse is a very common cause.

How to Replace the Freightliner Inverter Fuse

Tools Needed:

Step-by-Step:

Remove the fuse box cover.
Use an 8mm socket to remove the two retaining nuts.
Lift out the blown fuse.
Inspect it, a blown fuse will appear melted or have a broken internal filament.
Install the new fuse (verify correct amperage from the fuse box diagram).
Reinstall the nuts securely.
Replace the cover tightly to prevent moisture and debris intrusion.
Test the inverter inside the cab.

If the fuse was the issue, you should now be back in business.

150 Amp vs 200 Amp — Which One Should You Use?

Your fuse box diagram will specify the correct amperage.

Many 2019 Freightliner Cascadia factory inverters require a 200 amp MIDI fuse.

Installing a lower amperage fuse (like a 150A in place of a 200A) may cause repeated failures under load.

Always match:

OEM amperage rating
Freightliner specifications
Factory wiring configuration

You can find OEM and aftermarket Freightliner inverter fuses at FinditParts, including:

Why Do Freightliner Inverter Fuses Blow?

Common causes include:

Running high-wattage appliances
Microwave + refrigerator operating simultaneously
Faulty inverter
Loose battery connections
Voltage spikes
Incorrect amperage fuse installed

If the fuse blows repeatedly, further diagnosis of the inverter or charging system may be needed.

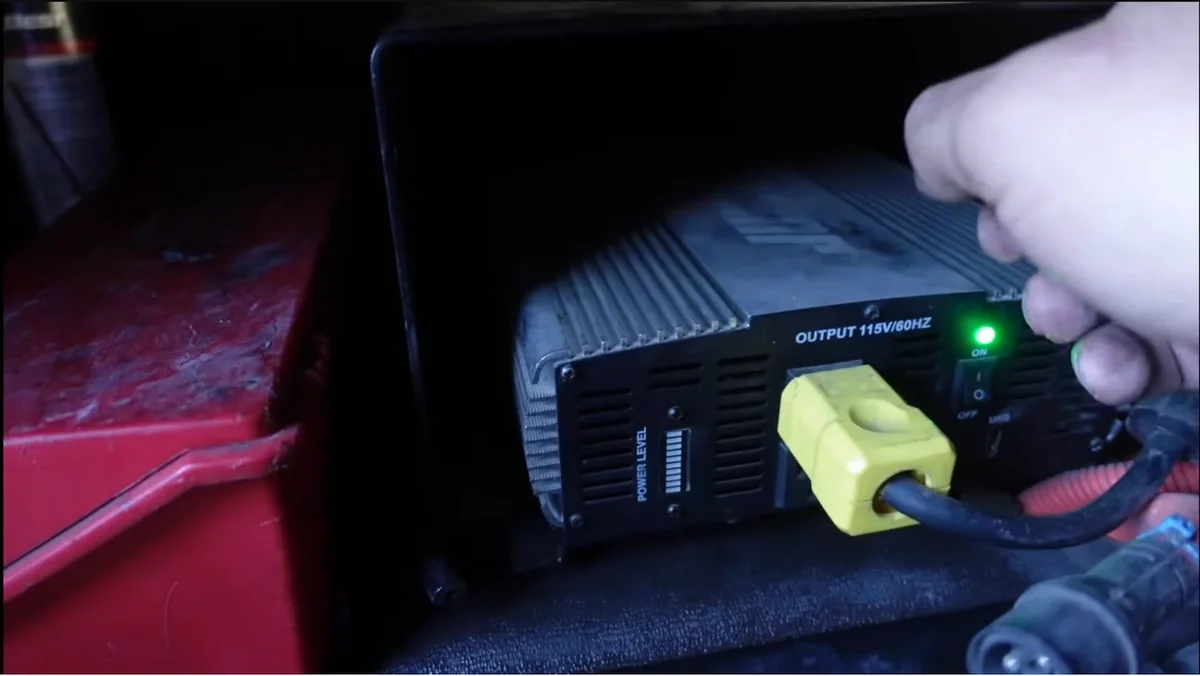

Where Is the Factory Inverter Located?

On a 2019 Freightliner Cascadia, factory inverters are typically:

Mounted with a protective shroud
Located inside the cab
Sometimes positioned behind the passenger seat

If your inverter looks professionally mounted with OEM wiring and shielding, it is likely factory-installed.

Pro Tip: Always Check This Fuse First

Many drivers:

Replace the inverter
Check inline fuses
Tear apart the battery box

Without realizing the factory inverter fuse is located separately on the firewall.

Checking this fuse can save you:

Hundreds of dollars
Hours of downtime
Unnecessary inverter replacement

Final Thoughts

If your power inverter stops working, don’t assume the entire unit has failed. A quick inspection can often reveal a simple fix that gets you back on the road without unnecessary downtime or expense.
