Freightliner Cascadia 2012-2019 Brake Maintenance Schedule & Inspection Guide: Keep Your Brakes Safe and Reliable

Brake failures are among the most serious safety hazards in commercial trucking. A brake system failure can result in catastrophic accidents, injuries, fatalities, and massive liability. Yet many truck operators and fleet managers treat brake maintenance as an afterthought, waiting until problems develop rather than preventing them through proactive maintenance.

This comprehensive guide provides the maintenance schedule, inspection procedures, and best practices that will keep your Freightliner Cascadia's brake system in peak condition. Whether you're a fleet manager overseeing dozens of trucks or an owner operator responsible for your own maintenance, this guide provides the information you need to maintain a safe, reliable brake system.

Understanding Your Cascadia's Brake System

The Freightliner Cascadia uses a sophisticated air brake system with Meritor disc brakes. Understanding the major components and how they work together is the first step toward effective maintenance.

Major Brake System Components:

The air compressor generates compressed air that powers the entire brake system. The compressor is driven by the engine and maintains pressure in the primary and secondary air tanks. If the compressor fails, the truck loses braking power within minutes.

The primary and secondary air tanks store compressed air at 120-140 PSI. The primary tank supplies the service brakes (foot brake), while the secondary tank supplies the spring parking brake. Dual tanks provide redundancy, if one tank fails, the other maintains some braking capability.

The air brake chamber converts compressed air into mechanical force that applies the brakes. The Freightliner Cascadia uses double-diaphragm spring brake chambers that combine service brakes (air-powered) and spring parking brakes (spring-powered) in a single unit.

The brake calipers and pads apply friction to the rotors, creating the stopping force. The pads are the wear item that requires periodic replacement.

The brake rotors are the spinning discs that the pads clamp against. Rotors wear as pads wear and must be replaced if they fall below minimum thickness.

The slack adjuster maintains proper brake pad clearance as pads wear. Proper slack adjuster operation is critical for maintaining consistent brake performance.

The brake lines and hoses deliver compressed air from the compressor to the brake chambers. Leaks in these lines reduce braking power and must be repaired immediately.

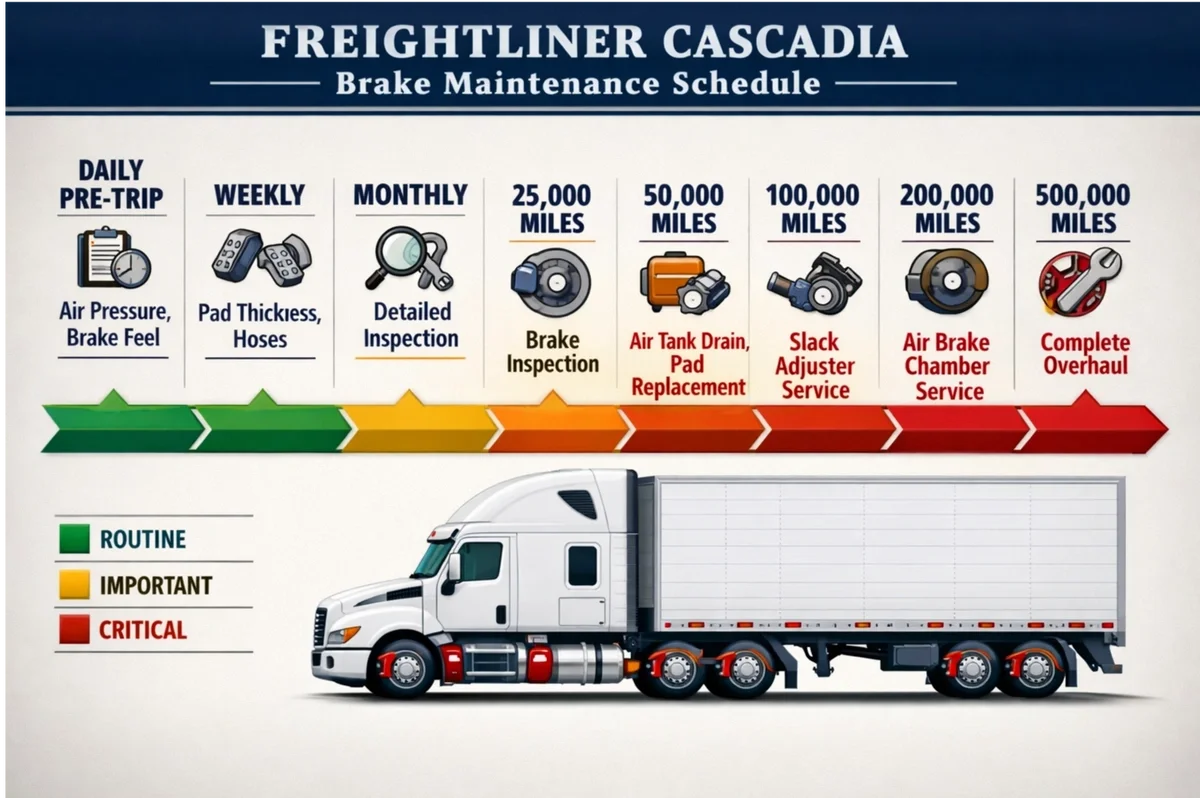

Freightliner Cascadia Brake Maintenance Schedule

Proper maintenance requires following a structured schedule. The following schedule is based on Freightliner's official maintenance recommendations and industry best practices.

Daily Pre-Trip Inspection (Before Each Trip)

Before every trip, perform a quick brake system check to identify obvious problems.

Daily Inspection Checklist:

• Check air pressure gauges (should read 120-140 PSI)

• Test service brakes (foot brake) for responsiveness and feel

• Test parking brake for holding power

• Listen for unusual brake noises

• Check for visible leaks under the truck

• Verify brake lights are functioning

This quick check takes only a few minutes but can catch serious problems before they cause accidents.

Weekly Brake System Inspection (Every 7 Days or 500 Miles)

Every week, perform a more thorough brake system inspection.

Weekly Inspection Checklist:

• Verify air pressure maintains 120-140 PSI during operation

• Check for air leaks (listen for hissing sounds)

• Inspect brake hoses for cracks, leaks, or deterioration

• Check brake pad thickness visually (if accessible)

• Verify slack adjuster operation (brakes should apply smoothly)

• Test full brake application (apply brakes firmly and verify even stopping)

• Check for brake fluid leaks (if applicable to your system)

Monthly Brake System Inspection (Every 30 Days)

Monthly inspections provide a more detailed assessment of brake system condition.

Monthly Inspection Checklist:

• Perform all weekly inspection items

• Measure brake pad thickness (should be above 6.35 mm minimum)

• Inspect brake rotors for scoring, cracking, or uneven wear

• Check air tank for moisture (drain if necessary)

• Verify caging bolt operation (for spring brake chambers)

• Inspect all brake hoses for leaks, cracks, or loose connections

• Check slack adjuster for proper operation and adjustment

• Verify brake lights and warning systems function properly

Scheduled Maintenance Intervals

The following table provides Freightliner's official scheduled maintenance intervals for Cascadia brake systems.

These intervals assume normal highway driving. Stop and go traffic, mountain driving, and heavy hauling may require more frequent maintenance.

Brake Pad Inspection and Replacement

Brake pad condition is the most critical factor in brake system safety and performance. Regular inspection and timely replacement are essential.

Identifying Worn Brake Pads

Several warning signs indicate that brake pads need replacement.

Visual Indicators: Brake pads should be at least 6.35 mm (0.25 inches) thick. If pads are visibly thin or the wear indicator is visible, replacement is overdue.

Performance Indicators: If the truck requires longer distances to stop, feels "spongy" when braking, or pulls to one side when braking, worn pads may be the cause.

Auditory Indicators: A high pitched squealing sound when braking often indicates worn pads. Some pads include a wear indicator that creates this noise when pads reach minimum thickness.

Tactile Indicators: If the brake pedal feels different than usual, either softer or requiring more pressure, brake pad wear may be the cause.

Brake Pad Replacement Procedure Overview

While detailed brake pad replacement requires professional mechanical skills, understanding the basic procedure helps you communicate effectively with your mechanic.

Brake Pad Replacement Steps:

1. Safety Preparation: Park the truck on level ground, set the parking brake, and place wheel chocks. Drain the air brake system to zero pressure by opening the primary and secondary tank drains.

2. Remove the Wheel: Remove the wheel to access the brake caliper and pads.

3. Inspect the Rotor: Measure rotor thickness. If below minimum (28 mm), the rotor must be replaced along with the pads.

4. Remove Old Pads: Remove the caliper mounting bolts and slide the caliper away from the rotor. Remove the old brake pads.

5. Install New Pads: Install new brake pads in the caliper. Ensure pads are properly seated and aligned.

6. Reinstall Caliper: Reinstall the caliper and torque mounting bolts to 144 ± 11 ft-lbs (195 ± 15 N·m).

7. Bleed the Brakes: If the caliper was opened, the brake system may need bleeding to remove air.

8. Test the Brakes: Apply and release the brakes multiple times to ensure smooth operation. Check for leaks and verify braking performance.

Brake Pad Replacement Intervals by Driving Condition

Brake pad lifespan varies significantly based on driving conditions.

These estimates assume ceramic brake pads. Semi-metallic pads typically have 20-30% shorter lifespans.

Rotor Inspection and Maintenance

Brake rotors are critical components that must be inspected regularly and replaced when necessary.

Rotor Specifications for Cascadia

• Rotor Diameter: 370 mm (14.6 inches)

• New Rotor Thickness: 32 mm (1.26 inches)

• Minimum Rotor Thickness: 28 mm (1.10 inches)

• Maximum Rotor Runout: 0.05 mm (0.002 inches)

Rotor Inspection Procedure

Rotors should be inspected whenever brake pads are replaced and at least every 50,000 miles.

Rotor Inspection Steps:

1. Measure Thickness: Use a micrometer to measure rotor thickness at multiple points. If any measurement is below 28 mm, the rotor must be replaced.

2. Inspect Surface: Look for scoring (deep scratches), cracking, or uneven wear patterns. Light scoring is normal, but deep scoring indicates the rotor should be replaced.

3. Check Runout: Spin the rotor and measure runout (wobbling). Excessive runout (more than 0.05 mm) indicates the rotor should be replaced.

4. Assess Wear Pattern: Uneven wear patterns may indicate caliper problems or suspension issues that should be investigated.

Rotor Replacement

Rotors should be replaced when they fall below minimum thickness, show significant cracking, or exhibit excessive runout. Attempting to machine (turn) rotors is not recommended for heavy duty trucks, as the rotor material may not be suitable for machining.

When replacing rotors, always replace them in complete sets (both rotors on an axle) to ensure balanced braking. Mixing old and new rotors can result in uneven braking and safety hazards.

Air Brake System Maintenance

The air brake system is the heart of your Freightliner Cascadia's braking capability. Proper maintenance is critical for safety and reliability.

Air Compressor Maintenance

The air compressor generates the compressed air that powers your brakes. Proper maintenance ensures reliable operation.

Air Compressor Inspection:

• Check for oil leaks around the compressor housing

• Verify the compressor belt is properly tensioned

• Listen for unusual noises indicating bearing wear

• Verify the compressor unloads properly when air pressure reaches 140 PSI

Air Tank Maintenance

Air tanks accumulate moisture and sediment that can damage brake components.

Air Tank Maintenance Schedule:

• Monthly: Drain moisture from the primary and secondary tanks by opening the drain valves at the bottom of each tank

• Every 50,000 miles: Perform a thorough tank inspection and cleaning

• Annually: Inspect for rust and corrosion

Neglecting air tank maintenance is a common cause of brake system problems. Moisture in the air system can freeze in cold weather, blocking air lines and causing brake failure.

Air Brake Chamber Maintenance

Air brake chambers convert compressed air into mechanical braking force. Proper maintenance ensures reliable operation.

Air Brake Chamber Inspection:

• Check for air leaks (listen for hissing sounds)

• Verify the chamber applies brakes smoothly

• Inspect for rust or corrosion on the chamber housing

• Check the caging bolt operation (for spring brake chambers)

If an air brake chamber fails, braking performance is compromised. Chambers should be replaced immediately if leaks are detected or if operation becomes sluggish.

Slack Adjuster Maintenance

The slack adjuster maintains proper brake pad clearance as pads wear. Proper operation is critical for consistent braking.

Slack Adjuster Inspection:

• Verify the slack adjuster operates smoothly

• Check for rust or corrosion

• Ensure the adjuster maintains proper brake pad clearance

• Listen for unusual noises indicating bearing wear

Slack adjusters should be lubricated annually and replaced if operation becomes sluggish or rough.

Brake Hose and Line Inspection

Brake hoses and lines deliver compressed air to the brake chambers. Leaks in these lines reduce braking power and must be repaired immediately.

Brake Hose Inspection Procedure

Visual Inspection:

• Look for cracks, splits, or deterioration in the hose covering

• Check for leaks at connection points

• Verify hoses are not rubbing against sharp edges or hot surfaces

• Ensure hoses are properly routed and secured

Pressure Test:

• Apply full air pressure and listen for hissing sounds indicating leaks

• Use soapy water to identify small leaks that may not be audible

• Mark any leaks for repair

Brake Line Inspection

Metal brake lines should be inspected for corrosion, cracks, and loose connections.

Brake Line Inspection Procedure:

• Visually inspect all metal lines for corrosion or cracks

• Check all connection points for tightness

• Verify lines are not rubbing against sharp edges

• Ensure lines are properly supported and secured

Brake System Warning Signs and Troubleshooting

Recognizing warning signs allows you to address brake problems before they become serious.

Warning Sign: Soft or Spongy Brake Pedal

Possible Causes: Air in the brake lines, low brake fluid (if applicable), worn brake pads, or a failing brake chamber.

Action: Stop driving and have the brake system inspected immediately. Do not attempt to drive the truck until the problem is identified and repaired.

Warning Sign: Brake Pedal Requires Excessive Pressure

Possible Causes: Worn brake pads, failing brake chambers, low air pressure, or a malfunctioning slack adjuster.

Action: Have the brake system inspected. The truck may still be drivable to a repair facility, but braking performance is compromised.

Warning Sign: Truck Pulls to One Side When Braking

Possible Causes: Uneven brake pad wear, a sticking caliper, or suspension problems.

Action: Have the brake system inspected. Uneven braking is a safety hazard and should be corrected immediately.

Warning Sign: Brake Warning Light Illuminates

Possible Causes: Low air pressure, a brake system fault detected by the electronic control module, or a sensor malfunction.

Action: Check air pressure immediately. If air pressure is normal, have the brake system scanned for diagnostic codes.

Warning Sign: Brake Noise or Grinding

Possible Causes: Worn brake pads, damaged rotors, or foreign material in the brake system.

Action: Have the brake system inspected. Grinding noises indicate metal-to-metal contact and require immediate repair.

Seasonal Brake Maintenance Considerations

Different seasons present different challenges for brake systems.

Winter Brake Maintenance

Cold weather can compromise brake system performance. Take these precautions:

• Drain air tanks more frequently (weekly instead of monthly) to remove moisture that could freeze

• Inspect brake hoses for brittleness or cracking caused by cold

• Verify the air dryer is functioning properly

• Check that brake fluid (if applicable) is rated for cold weather

Summer Brake Maintenance

Hot weather increases brake system stress. Take these precautions:

• Inspect brake pads more frequently for excessive wear

• Verify the air compressor is not overheating

• Check that brake hoses are not rubbing against hot engine components

• Monitor brake performance on long downhill grades

Creating a Brake Maintenance Program for Your Fleet

Fleet managers should establish a formal brake maintenance program to ensure consistent, thorough maintenance across all trucks.

Brake Maintenance Program Components:

1. Written Maintenance Schedule: Document all required maintenance tasks and intervals

2. Inspection Forms: Create standardized forms for recording inspection results

3. Parts Inventory: Maintain an inventory of common brake parts for quick repairs

4. Mechanic Training: Ensure all mechanics are trained in proper brake maintenance procedures

5. Documentation: Keep detailed records of all maintenance performed

6. Compliance Monitoring: Track compliance with the maintenance schedule

A formal program ensures that brake maintenance is not overlooked and provides documentation for regulatory compliance and liability protection.

Conclusion

Brake system maintenance is not optional—it's a critical safety requirement and a legal obligation. The Freightliner Cascadia's brake system is engineered for reliability, but only if it receives proper maintenance. By following the maintenance schedule and inspection procedures outlined in this guide, you can ensure that your Cascadia's brakes remain safe and reliable throughout the truck's life.

Regular inspection, timely replacement of worn components, and proactive maintenance will prevent brake failures, reduce downtime, and protect the safety of your drivers and the public. For assistance with brake maintenance or to source replacement parts for your Cascadia, contact Finditparts.com at (888) 312-8812 or visit our website to browse our complete selection of Cascadia brake components.

---

Frequently Asked Questions

Q: How often should I inspect my Cascadia's brakes?

A: Perform a quick pre-trip inspection before every trip, a more thorough weekly inspection every 7 days or 500 miles, and a detailed monthly inspection every 30 days. Additionally, follow Freightliner's scheduled maintenance intervals: brake inspection every 25,000 miles, air tank drain every 50,000 miles, and brake pad replacement every 50,000-100,000 miles depending on driving conditions.

Q: What should I look for during a brake inspection?

A: Check air pressure (should be 120-140 PSI), test brake responsiveness, listen for unusual noises, inspect brake hoses for leaks or cracks, measure brake pad thickness (should be above 6.35 mm), check rotors for scoring or damage, and verify slack adjuster operation. If you notice any problems, have the brake system inspected by a qualified mechanic immediately.

Q: How do I drain moisture from my air brake system?

A: Open the drain valve at the bottom of the primary and secondary air tanks. Let air escape until water and sediment drain out. This should be done monthly, or more frequently in humid environments or during winter. Moisture in the air system can freeze in cold weather and cause brake failure.

Q: What does it mean if my air pressure gauge reads below 120 PSI?

A: Low air pressure indicates a problem with the air compressor or a leak in the air system. Stop driving and have the brake system inspected immediately. Operating with low air pressure compromises braking capability and is a safety hazard.

Q: How do I know if my slack adjuster needs adjustment?

A: The slack adjuster should maintain proper brake pad clearance as pads wear. If brakes feel sluggish or require more pressure to apply, the slack adjuster may need adjustment. Have a qualified mechanic check the slack adjuster if you notice changes in brake feel.

Q: What's the difference between service brakes and parking brakes?

A: Service brakes (foot brake) are applied by the driver and use compressed air to apply the brakes. Parking brakes (spring brakes) are automatically applied when air pressure drops and use a powerful spring to hold the truck parked. Both systems are critical for safe operation.

Q: Can I perform brake maintenance myself, or should I use a professional mechanic?

A: While some inspections can be performed by owner-operators, brake system work should generally be performed by qualified mechanics. Brake systems are safety-critical, and improper maintenance can result in brake failure and accidents. If you're not trained in brake system work, use a professional mechanic.

Q: How much does a brake pad replacement typically cost?

A: Brake pad replacement typically costs $200-400 per axle for parts and labor, depending on the brake pad type and your location. Ceramic pads are usually more expensive than semi-metallic pads. If rotors also need replacement, add $150-300 per rotor to the total cost.

Q: What should I do if my brake warning light comes on?

A: Check your air pressure immediately. If air pressure is normal, have the brake system scanned for diagnostic codes by a qualified mechanic. Do not ignore brake warning lights—they indicate a problem that requires immediate attention.

Q: How do I know if my rotors need replacement?

A: Rotors should be replaced if they fall below minimum thickness (28 mm), show significant cracking or scoring, or exhibit excessive runout (wobbling). Measure rotor thickness with a micrometer whenever brake pads are replaced. If rotors are damaged, replace them along with the brake pads.

Q: What's the best way to extend brake pad lifespan?

A: Avoid excessive braking by maintaining steady speeds and increasing following distance. Use engine braking on downhill grades to reduce brake usage. Keep your truck properly loaded and balanced. Maintain proper tire pressure and wheel alignment. Regular maintenance also helps extend brake pad lifespan.

Q: Should I replace all four brake pads at the same time?

A: Yes, always replace brake pads in complete sets (both pads for one wheel end). Replacing pads unevenly can result in uneven braking and safety hazards. If one axle needs brake pads, inspect the other axles as well and replace pads as needed.

Q: What's the cost difference between ceramic and semi-metallic brake pads?

A: Ceramic brake pads typically cost 20-30% more than semi-metallic pads. However, ceramic pads last longer and cause less rotor wear, resulting in lower total cost of ownership. Over the truck's lifespan, ceramic pads usually cost less overall despite higher initial cost.

Q: How do I create a brake maintenance program for my fleet?

A: Establish a written maintenance schedule, create standardized inspection forms, maintain a parts inventory, ensure mechanics are trained in proper procedures, keep detailed records, and monitor compliance with the schedule. A formal program ensures consistent maintenance across all trucks and provides documentation for regulatory compliance.

---

References

[1] Freightliner Cascadia Maintenance Schedule & PM Software 2026 - https://fleetrabbit.com/blogs/post/freightliner-cascadia-maintenance-schedule-software- [2] Freightliner Cascadia Specifications - https://www.freightliner.com/trucks/cascadia/specifications/ [3] Your Guide to Recommended Service Intervals for Semi Trucks - https://www.fydafreightliner.com/blog/your-guide-to-recommended-service-intervals-for-semi-trucks--97304 [4] FMCSA Brake System Regulations - https://www.fmcsa.dot.gov/ [5] Brake System Checklist for Freightliner Cascadia - https://fleetrabbit.com/checklist-center/procedure/brake-system-checklist-for-freightliner-cascadia
